VISHAYDatasheet (PDF)

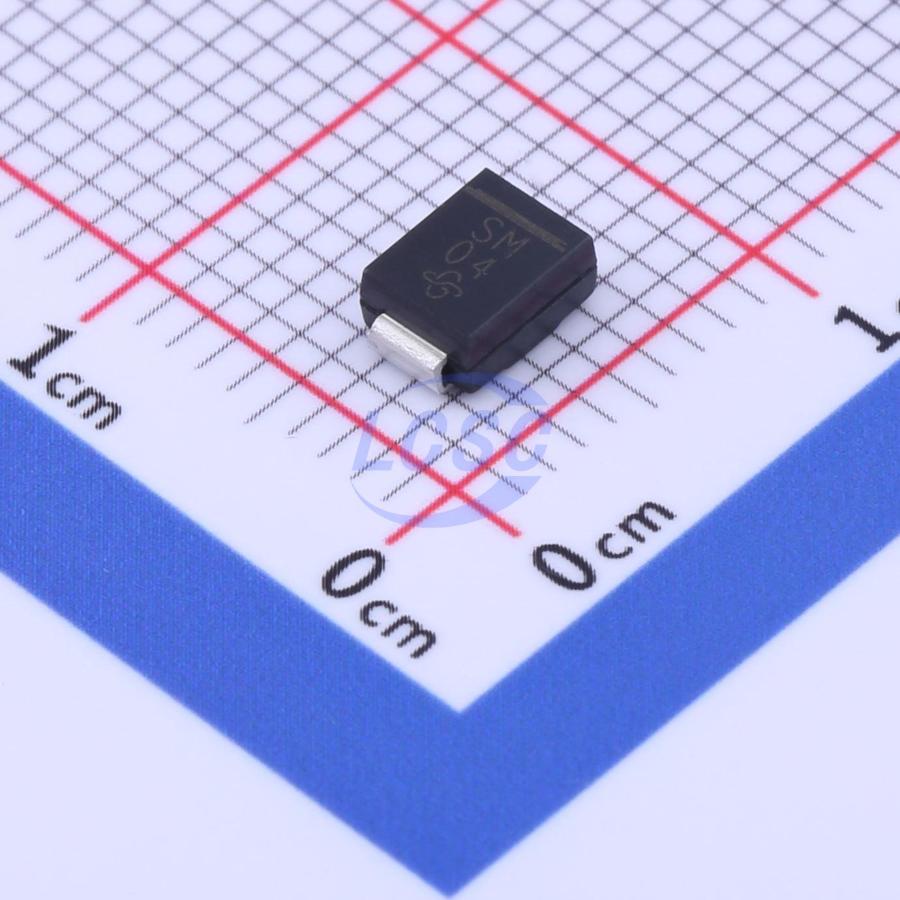

S2M-E3/52T
Diode 1kV 1.5A Surface Mount DO-214AA
DO-214AAROHS3 CompliantActive
DIODE STANDARD 1kV 1.5A DO-214AA
- Manufacturer
- VISHAY
- Manufacturer part #
- S2M-E3/52T
- Store part #
- C968639
- Package / case
- DO-214AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
915 in stock
#C968639
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.96 | ₹109.80 |
| 50+ | ₹17.90 | ₹895.00 |
| 150+ | ₹15.86 | ₹2,379.00 |
| 750+ | ₹12.81 | ₹9,607.50 |
| 2,250+ | ₹11.59 | ₹26,077.50 |
| 5,250+ | ₹10.97 | ₹57,592.50 |
5 × ₹21.96
₹109.80
excl. GST
₹129.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
S2M-E3/52T
₹109.80 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Voltage - Forward(Vf@If)
- 1.15V@1.5A
- Reverse Leakage Current (Ir)
- 1uA@1kV
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.216 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Low forward voltage drop RoHS
- Low leakage current COMPLIANT
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S2M#C232827onsemi · SMB(DO-214AA) | onsemi | SMB(DO-214AA) | 5,210 | ₹28.72 · 5,210 in stock | View |
 | NRVS2M#C893743onsemi · SMB | onsemi | SMB | 100 | ₹64.92 · 100 in stock | View |
 | S2M#C2766056WPMtek · SMB(DO-214AA) | WPMtek | SMB(DO-214AA) | 1,950 | ₹2.61 · 1,950 in stock | View |
 | S2W#C49242803PDW · SMB(DO-214AA) | PDW | SMB(DO-214AA) | 980 | ₹5.19 · 980 in stock | View |
 | S2M-LTP#C668987MCC · SMB(DO-214AA) | MCC | SMB(DO-214AA) | 5,700 | ₹10.08 · 5,700 in stock | View |
