VISHAYDatasheet (PDF)

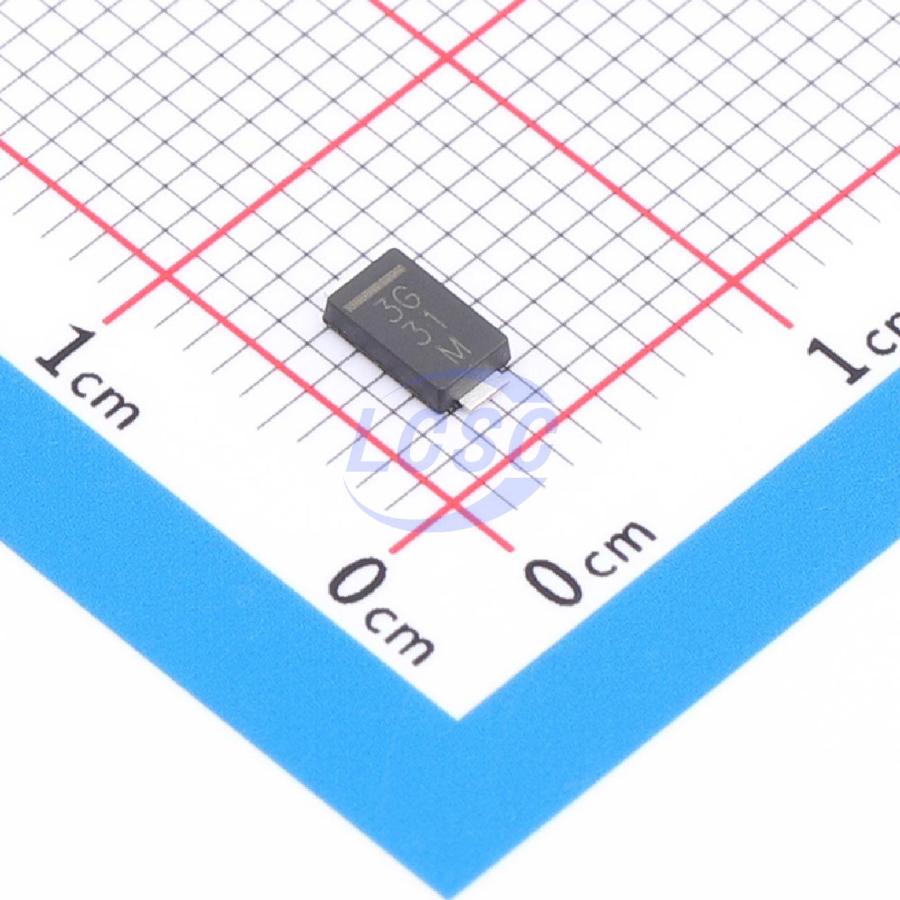

S3AFGHM3/I
400V 1 Independent 1.1V@3A 3A DO-221AC(SLIMSMA) Single Diodes RoHS
DO-221AC(SLIMSMA)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- S3AFGHM3/I
- Store part #
- C20036250
- Package / case
- DO-221AC(SLIMSMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
243 in stock
#C20036250
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.14 | ₹129.14 |
| 10+ | ₹107.65 | ₹1,076.50 |
| 30+ | ₹96.80 | ₹2,904.00 |
| 100+ | ₹86.17 | ₹8,617.00 |
| 500+ | ₹79.66 | ₹39,830.00 |
| 1,000+ | ₹76.40 | ₹76,400.00 |
1 × ₹129.14
₹129.14
excl. GST
₹152.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 14,000 per reel
S3AFGHM3/I
₹129.14 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.1V@3A
- Reverse Leakage Current (Ir)
- 10uA
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 14,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.058 g
Overview
Applications
- General-purpose rectifier and freewheeling diode for power supplies, inverters, and converters in consumer and industrial applications
Key features
- Ultra-thin profile – typical height 0.95mm
- Ideal for automated placement
- Glass passivated chip junction
- Low forward voltage drop
- Low leakage current
- MSL level 1 per J-STD-020, LF max peak temperature 260°C
- AEC-Q101 qualified parts available
- Material categorization: see www.vishay.com/doc?99912 for compliance definitions
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SE30AFG-M3/6A#C17431197VISHAY · DO-221AC | VISHAY | DO-221AC | 60 | ₹36.89 · 60 in stock | View |
| S3AFG-M3/I#C17373156VISHAY · DO-221AC | VISHAY | DO-221AC | On request | ₹26.25 · 0 in stock | View | |
| S3AFJHM3/I#C20036252VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | On request | ₹42.67 · 0 in stock | View | |
| S3AFJ-M3/I#C20036251VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | On request | ₹36.09 · 0 in stock | View | |
| S3JAL#C20573249Taiwan Semiconductor · Thin SMA | Taiwan Semiconductor | Thin SMA | On request | ₹11.29 · 0 in stock | View | |
