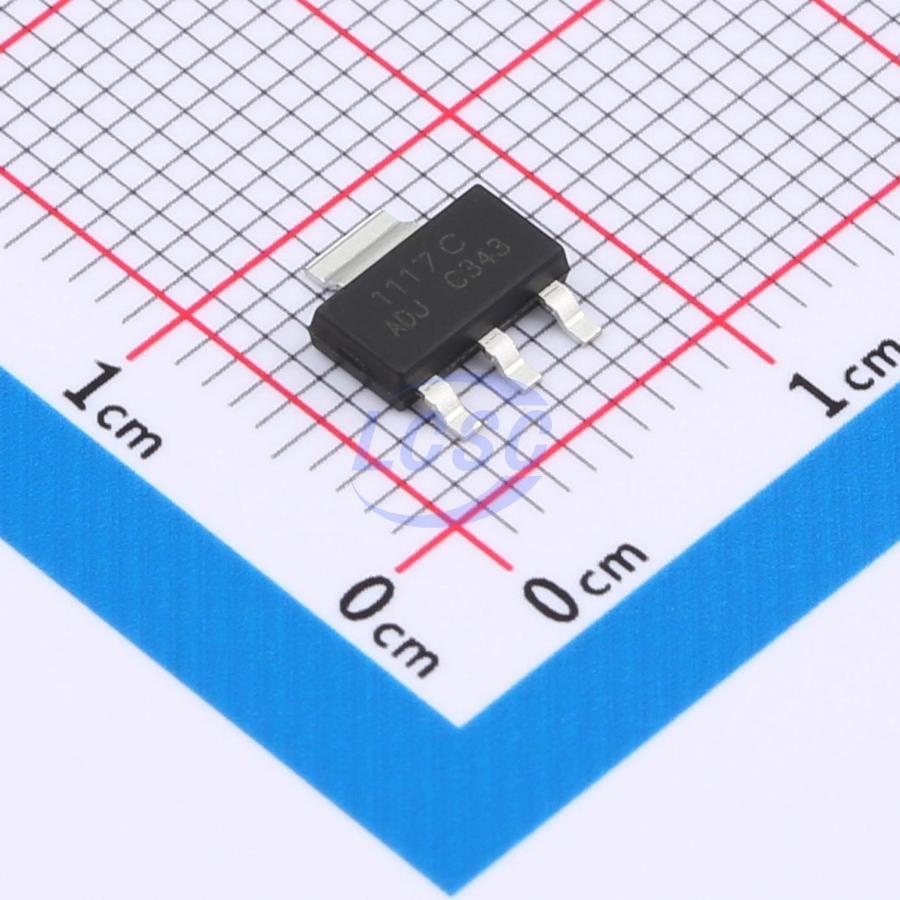

SAMS1117-ADJ
1.25V~12V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
800mA Bipolar Linear Regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SAMS1117-ADJ
- Store part #
- C41361596
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,170 in stock
#C41361596
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.46 | ₹64.60 |
| 100+ | ₹5.11 | ₹511.00 |
| 300+ | ₹4.43 | ₹1,329.00 |
| 2,500+ | ₹3.93 | ₹9,825.00 |
| 5,000+ | ₹3.53 | ₹17,650.00 |
| 10,000+ | ₹3.32 | ₹33,200.00 |
10 × ₹6.46
₹64.60
excl. GST
₹76.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SAMS1117-ADJ
₹64.60 for 10 + GST
Specifications
- Output Voltage
- 1.25V~12V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 1.2A
- Operating Voltage
- 15V
- Features
- Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.24 g
Overview
SAMS1117-ADJ is a series of low dropout three-terminal regulators with a dropout of 13V at 800mA load current. SAMS1117-5.0V features a very low standby current 2mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V, SAMS1117-5.0V has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. SAMS1117 offers thermal shut down function, to assure the stability of chip and power system. And it uses trimming technique, to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%. SAMS1117 is available in SOT-223, TO-252, SOT-89 power package.
Applications
- Power Management for Computer Mother Board, Graphic Card
- LCD Monitor and LCD TV
- DVD Decode Board
- ADSL, Modern
- Post Regulators For Switching Supplies
Key features
- Maximum output current is 1.2A
- Range of operation input voltage: Max 15V
- Line regulation: 0.03% /V (typ.)
- Standby current: 2mA (typ.)
- Load regulation: 0.2% /A (typ.)
- Environment Temperature: -20℃ - 85℃
