JSCJDatasheet (PDF)

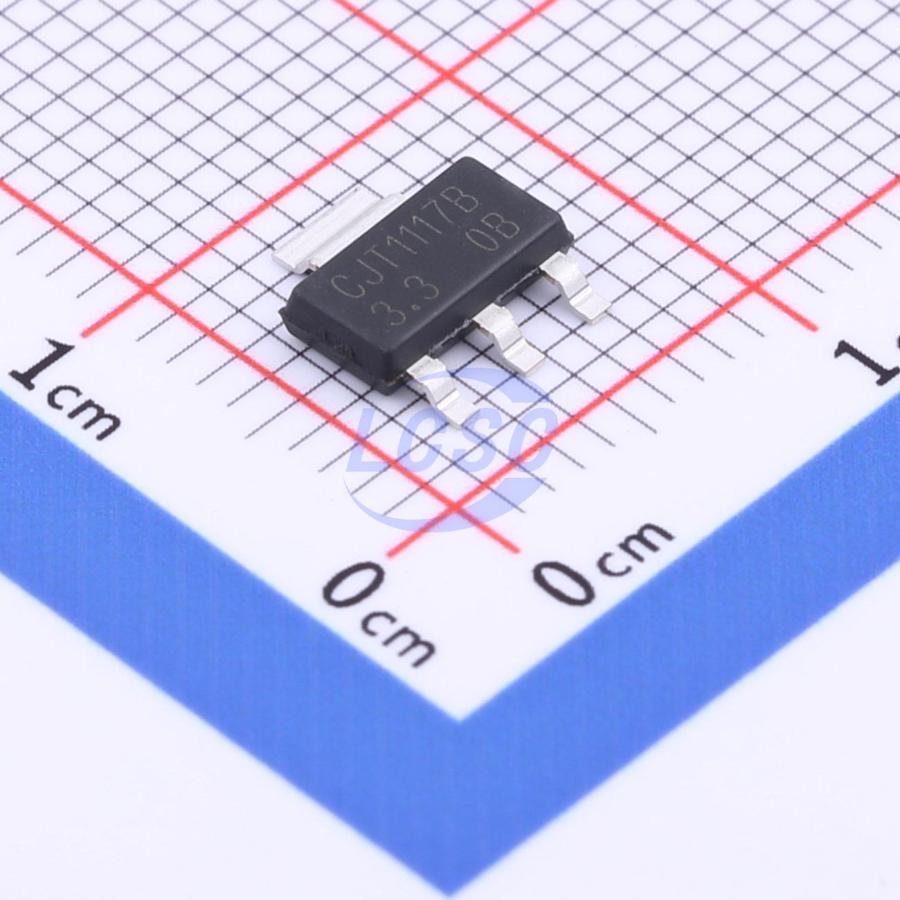

SCJT1117B-3.3
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223ROHS CompliantActive
IC REG LINEAR 3.3V 1A SOT-223
- Manufacturer
- JSCJ
- Manufacturer part #
- SCJT1117B-3.3
- Store part #
- C1884532
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55,950 in stock
#C1884532
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.59 | ₹85.90 |
| 100+ | ₹6.89 | ₹689.00 |
| 300+ | ₹6.05 | ₹1,815.00 |
| 2,500+ | ₹5.41 | ₹13,525.00 |
| 5,000+ | ₹4.91 | ₹24,550.00 |
| 10,000+ | ₹4.66 | ₹46,600.00 |
10 × ₹8.59
₹85.90
excl. GST
₹101.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SCJT1117B-3.3
₹85.90 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 15V
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.277 g
Overview
The SCJT1117B series is a group of low dropout three-terminal regulators with a dropout of 1.3V(typ.) at 1A output current. The SCJT1117B series is available in an adjustable version, which can set the output voltage from 1.25V to 12V with only two external resistors. In addition, it is available in five fixed voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V and 5V. The SCJT1117B series offer thermal shutdown protection. Its circuit includes a Zener trimmed bandgap reference to assure output voltage accuracy to within ±2%. A minimum of 10μF tantalum capacitor is required at the output to improve the transient response and stability.
Applications
- PC Motherboard
- LCD Monitor
- Graphic Card DVD-Video Player
- NIC/Switch
- Telecom Modem
- ADSL Modem
- Printer and Other Peripheral Equipment
Key features
- Low Dropout Voltage: 1.3V(typ.) at 1A Output Current
- Thermal Shutdown
- Three-Terminal Adjustable to 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V
- Operation Junction Temperature: -40°C to 125°C
- Space-saving SOT-223 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SCJT1117B-3.3-A#C2829331JSCJ · SOT-223 | JSCJ | SOT-223 | 4,370 | ₹8.44 · 4,370 in stock | View |
 | CJT1117B-3.3#C78777JSCJ · SOT-223 | JSCJ | SOT-223 | 48,150 | ₹7.94 · 48,150 in stock | View |
