JSCJDatasheet (PDF)

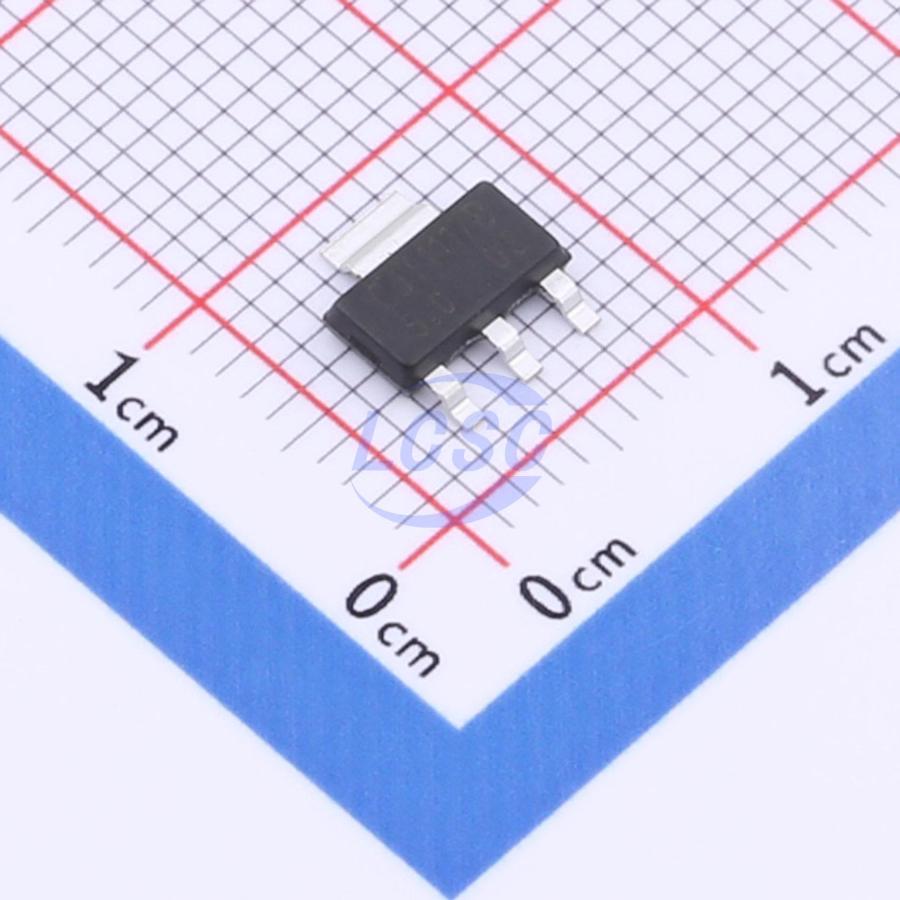

SCJT1117B-5.0
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223ROHS CompliantActive
1A Low Dropout (LDO) Linear Regulator
- Manufacturer
- JSCJ
- Manufacturer part #
- SCJT1117B-5.0
- Store part #
- C2887073
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,780 in stock
#C2887073
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.45 | ₹84.50 |
| 100+ | ₹6.88 | ₹688.00 |
| 300+ | ₹6.10 | ₹1,830.00 |
| 2,500+ | ₹5.36 | ₹13,400.00 |
| 5,000+ | ₹4.88 | ₹24,400.00 |
| 10,000+ | ₹4.66 | ₹46,600.00 |
10 × ₹8.45
₹84.50
excl. GST
₹99.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SCJT1117B-5.0
₹84.50 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 15V
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.284 g
Overview
The SCJT1117B-XXX is a series of low dropout three-terminal regulators with a dropout of 1.3V(typ.) at 1A output current. The SCJT1117B-XXX series provides current limiting and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within 2%. Current limit is trimmed to ensure specified. Output current and controlled short-circuit current. On-chip thermal shutdown provides protection against any combination of overload and ambient temperature that would create excessive junction temperature. The SCJT1117B-XXX has an adjustable version, that can provide the output voltage from 1.2V to 12V with only 2 external resistors.
Applications
- PC Motherboard
- LCD Monitor
- Graphic Card
- DVD-Video Player
- NIC/Switch
- Telecom Modem
- ADSL Modem
- Printer and Other Peripheral Equipment
Key features
- Low Dropout Voltage: 1.3V(typ.) at 1A Output Current
- Trimmed Current Limit
- On-Chip Thermal Shutdown
- Three-Terminal Adjustable to 1.2V,1.5V,1.8V, 2.5V, 3.3V, 5V
- Operation Junction Temperature: -20°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJT1117B-5.0#C89273JSCJ · SOT-223 | JSCJ | SOT-223 | 17,110 | ₹9.13 · 17,110 in stock | View |
