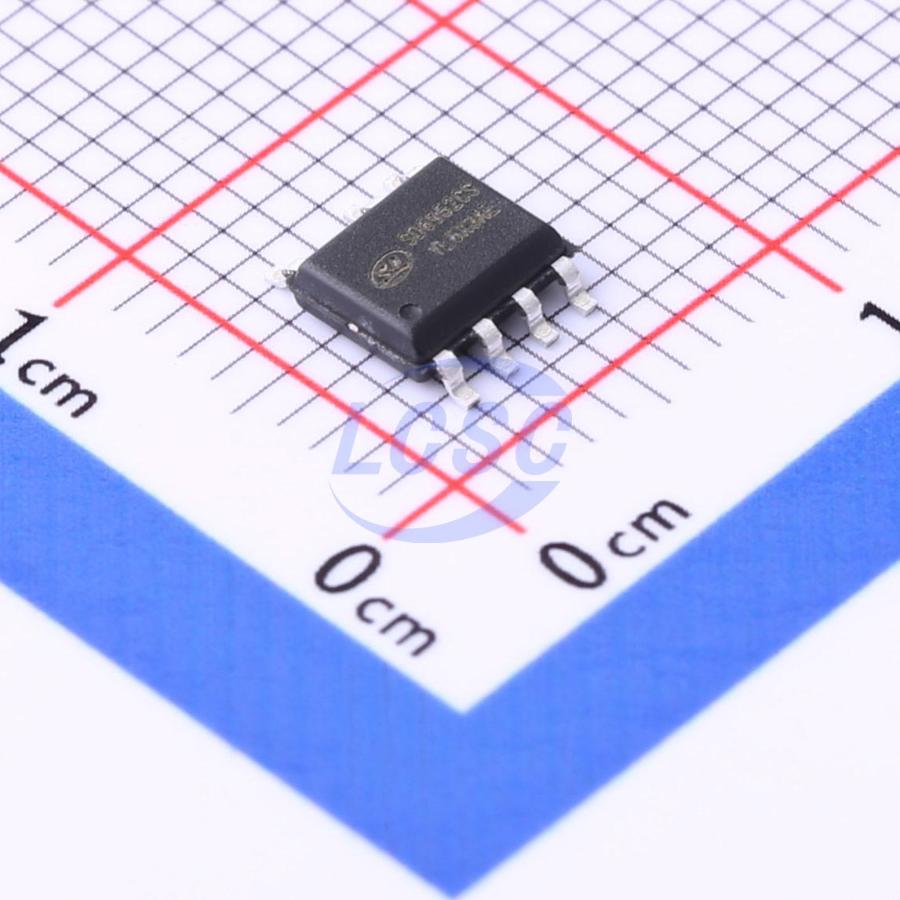

Hangzhou Silan Microelectronics

SD6952CS

400Hz~50kHz 800V SOP-7 AC DC Converters, Offline Switchers

SOP-7RoHSActive

Manufacturer: Hangzhou Silan Microelectronics
Manufacturer part #: SD6952CS
Store part #: C2887257
Package / case: SOP-7
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,445 in stock

#C2887257

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹12.89	₹64.45
50+	₹10.31	₹515.50
150+	₹9.01	₹1,351.50
500+	₹8.03	₹4,015.00
3,000+	₹6.39	₹19,170.00
6,000+	₹5.99	₹35,940.00

Quantity (min 5, multiples of 5)

5 × ₹12.89

₹64.45

excl. GST

₹76.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SD6952CS

₹64.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃
Frequency - Switching: 400Hz~50kHz
Voltage - Breakdown: 800V
Features: Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Duty Cycle(Max): 50%
Feedback System: Primary-side feedback
Working Mode: PFM Modulation

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.188 g

Overview

SD6952CS is a primary-side regulation (PSR) switching power supply controller with integrated high-voltage transistor. It features built-in line loss compensation and peak current compensation, employs PFM modulation technology, and delivers precise CV/CC control loops with very high stability and average efficiency. Systems designed with SD6952CS require no optocoupler or Y-capacitor, eliminating secondary-side feedback control and loop compensation, simplifying the circuit and reducing cost. SD6952CS is recommended for 5W applications over the AC 85~264V range.
