Hangzhou Silan Microelectronics

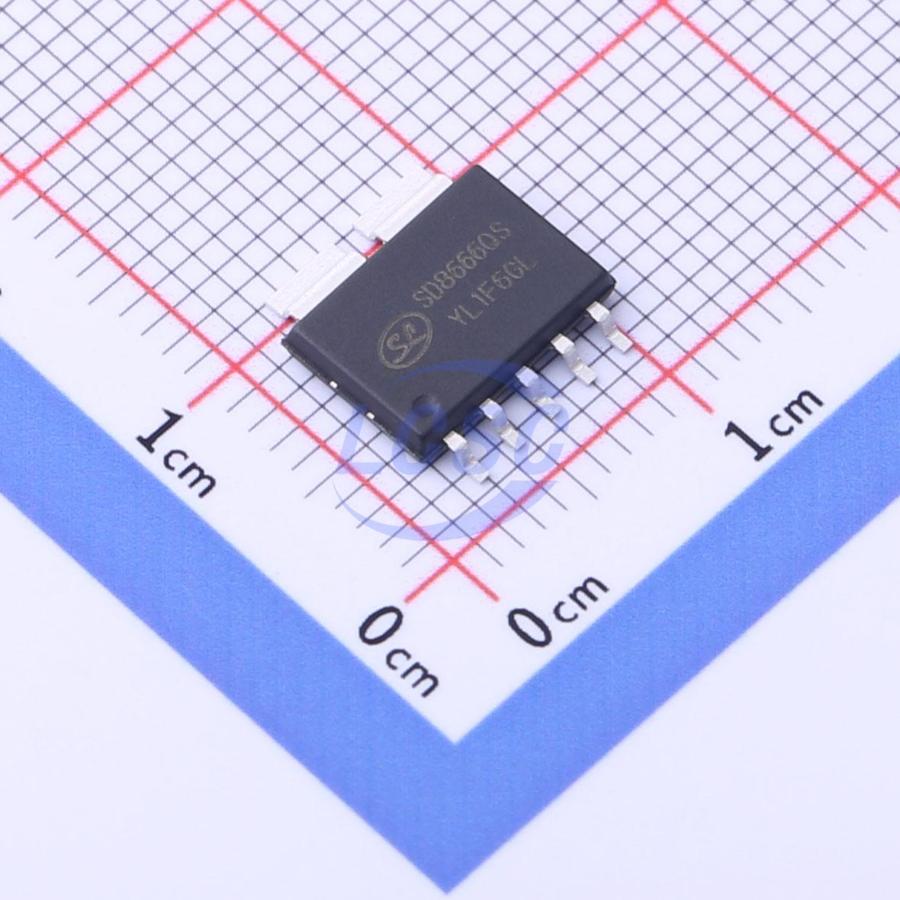

SD8666QS

65kHz EHSOP-5 AC DC Converters, Offline Switchers

EHSOP-5RoHSActive

Manufacturer: Hangzhou Silan Microelectronics
Manufacturer part #: SD8666QS
Store part #: C2975181
Package / case: EHSOP-5
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,825 in stock

#C2975181

Stock & price checked 17 h ago

Quantity	Unit price	Pack price
1+	₹81.27	₹81.27
10+	₹64.97	₹649.70
30+	₹56.72	₹1,701.60
100+	₹48.69	₹4,869.00
500+	₹43.69	₹21,845.00
1,000+	₹41.29	₹41,290.00

Quantity (min 1)

1 × ₹81.27

₹81.27

excl. GST

₹95.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SD8666QS

₹81.27 for 1 + GST

Specifications

Frequency - Switching: 65kHz
Features: Soft-start;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Working Mode: QR;CCM;PFM Modulation

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.34 g

Overview

SD8666QS is a quasi-resonant current-mode PWM+PFM controller for switching power supplies, featuring a built-in high-voltage power MOSFET and an external sense resistor. SD8666QS supports multi-mode control: under heavy load, it operates in QR mode at high input voltage to reduce switching losses, and in CCM mode at fixed frequency (65KHz) at low input voltage. Under medium and light load, it operates in QR+PFM mode to improve conversion efficiency. Under no load, it enters hiccup mode to effectively reduce standby power consumption. SD8666QS features frequency dithering to reduce EMI, peak current compensation to maintain consistent maximum output power across different AC input voltages, and soft-start to reduce device stress during power-up. SD8666QS integrates comprehensive protection functions for abnormal conditions, including VCC overvoltage protection, output overload protection, output overvoltage protection, leading-edge blanking, cycle-by-cycle peak current limiting, output diode short-circuit protection, AC input undervoltage protection, and over-temperature protection.
