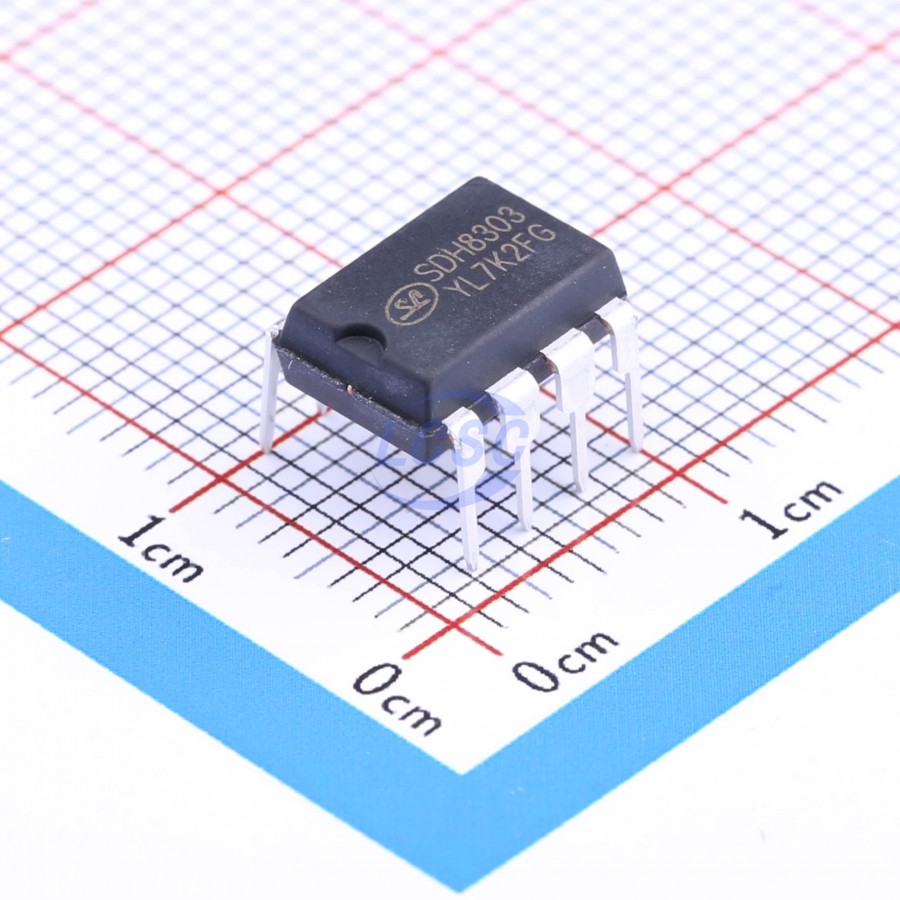

Hangzhou Silan Microelectronics

SDH8303

6.3W 650V 10V~25V DIP-8 AC DC Converters, Offline Switchers

DIP-8RoHSActive

Manufacturer: Hangzhou Silan Microelectronics
Manufacturer part #: SDH8303
Store part #: C161191
Package / case: DIP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tube-packed

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,715 in stock

#C161191

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹52.97	₹264.85
50+	₹38.64	₹1,932.00
150+	₹33.84	₹5,076.00
500+	₹27.85	₹13,925.00
2,000+	₹25.19	₹50,380.00
4,000+	₹23.59	₹94,360.00

Quantity (min 5, multiples of 5)

5 × ₹52.97

₹264.85

excl. GST

₹312.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

SDH8303

₹264.85 for 5 + GST

Specifications

Operating Temperature: -20℃~+85℃
Frequency - Switching: 54kHz~66kHz;20kHz
Pd - Power Dissipation: 6.3W
Voltage - Breakdown: 650V
Voltage - Supply: 10V~25V
Topology: Buck;Flyback
Features: Soft-start;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Duty Cycle(Max): 80%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.76 g

Overview

SDH8303 is a current-mode PWM controller with an integrated high-voltage MOSFET for switching power supplies. The SDH8303 integrates a high-voltage startup circuit. It enters hiccup mode under light load to effectively reduce system standby power consumption. A frequency reduction function further optimizes conversion efficiency under light-load conditions. A frequency dithering function improves EMI performance. A soft-start function reduces device stress and prevents transformer saturation. A VDD hiccup function not only prevents VDD undervoltage restart but also effectively reduces standby power consumption. The SDH8303 also integrates protection functions for various fault conditions, including: VDD undervoltage protection, VDD overvoltage protection, leading-edge blanking, output short-circuit protection, overcurrent protection, overtemperature protection, and more. After a protection event is triggered, the circuit continuously auto-restarts until the system returns to normal operation.
