Hangzhou Silan Microelectronics

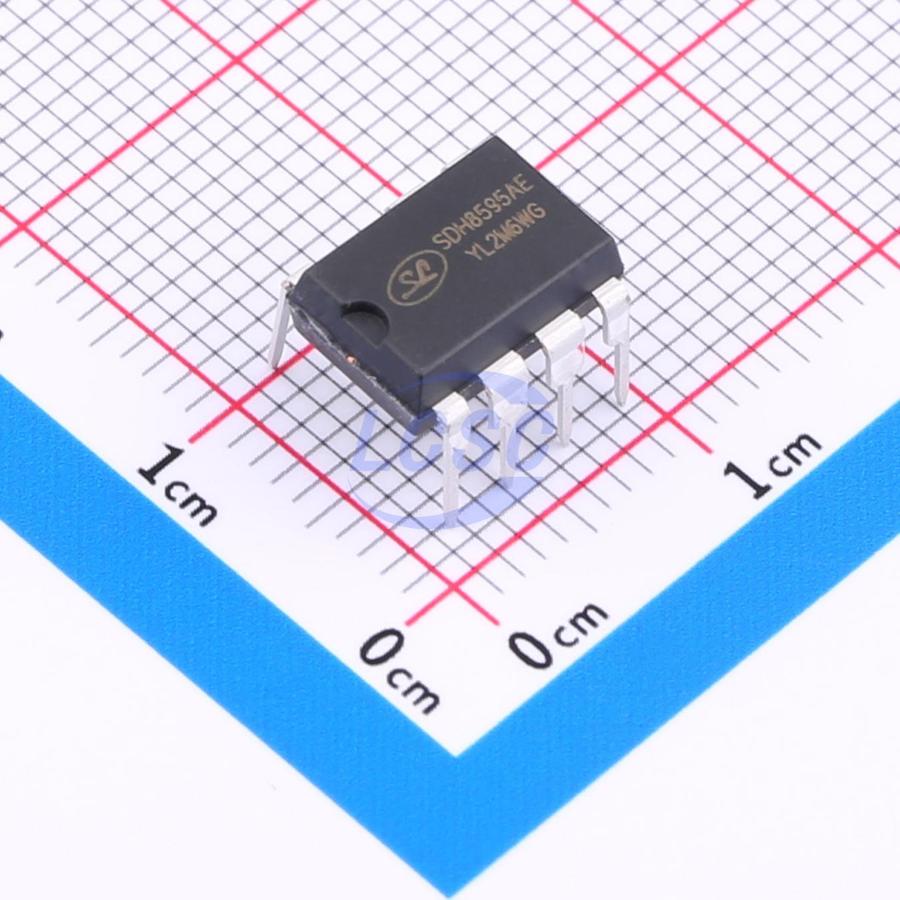

SDH8595AE

650V DIP-8-300mil AC DC Converters, Offline Switchers

DIP-8-300milRoHSActive

Manufacturer: Hangzhou Silan Microelectronics
Manufacturer part #: SDH8595AE
Store part #: C20606462
Package / case: DIP-8-300mil
Category: AC DC Converters, Offline Switchers
Packaging: Tube-packed

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,895 in stock

#C20606462

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹26.54	₹132.70
50+	₹23.18	₹1,159.00
150+	₹21.74	₹3,261.00
500+	₹19.94	₹9,970.00
2,500+	₹19.14	₹47,850.00
5,000+	₹18.67	₹93,350.00

Quantity (min 5, multiples of 5)

5 × ₹26.54

₹132.70

excl. GST

₹156.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

SDH8595AE

₹132.70 for 5 + GST

Specifications

Operating Temperature: -20℃~+85℃
Voltage - Breakdown: 650V
Features: Constant Current Mode (CC);Constant Voltage (CV);Overtemperature protection (OTP);Over Voltage Protection;Under Voltage Protection;Over Current Protection;Short Circuit Protection
Duty Cycle(Max): 50%
Feedback System: Primary-side feedback
Working Mode: PFM Modulation

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.8 g

Overview

SDH8595AE is a Primary-Side Regulation (PSR) switching power supply with an integrated high-voltage MOS power switch. It employs PFM modulation technology to provide precise CV/CC control loops with very high stability and average efficiency. The integrated high-voltage startup circuit eliminates the need for external startup resistors. Systems designed with the SDH8595AE require no optocoupler, eliminating secondary-side feedback control and loop compensation, simplifying the circuit and reducing system cost. It features adjustable line loss compensation and built-in peak current compensation.
