Hangzhou Silan Microelectronics

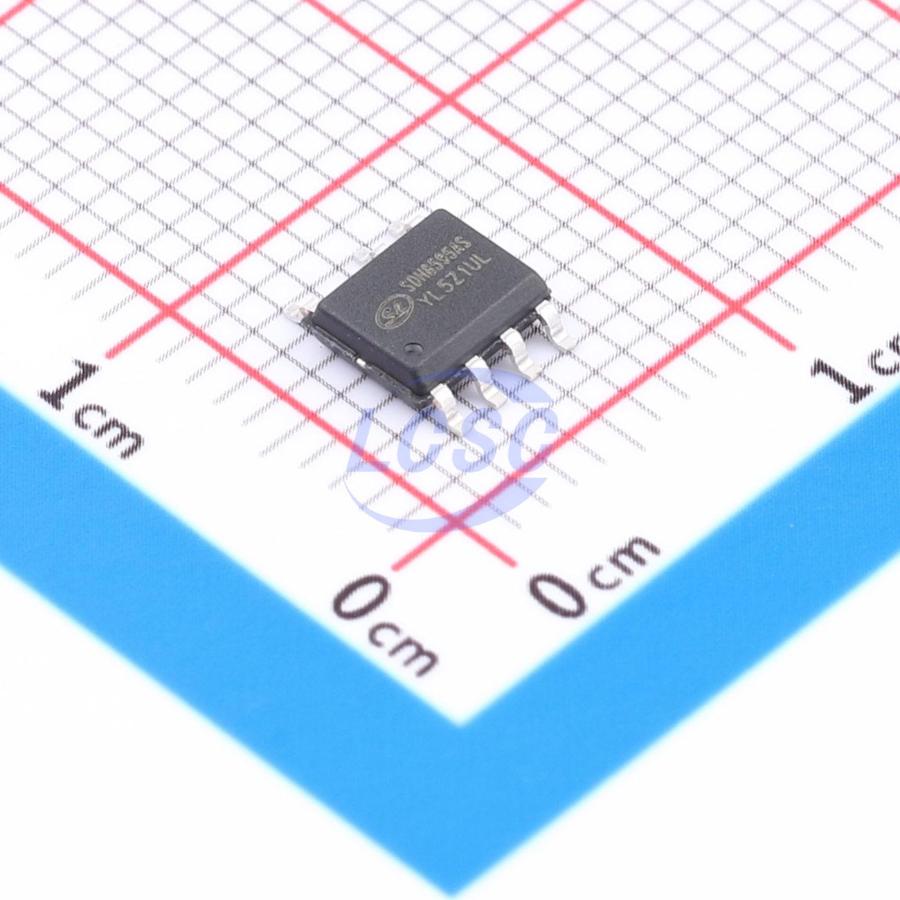

SDH8595ASTR
9.5V~25.5V 600V Flyback SOP-7-225mil-1.27mm AC DC Converters, Offline Switchers
SOP-7-225mil-1.27mmRoHSActive
- Manufacturer
- Hangzhou Silan Microelectronics
- Manufacturer part #
- SDH8595ASTR
- Store part #
- C42459725
- Package / case
- SOP-7-225mil-1.27mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,725 in stock
#C42459725
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.68 | ₹233.40 |
| 50+ | ₹36.65 | ₹1,832.50 |
| 150+ | ₹32.36 | ₹4,854.00 |
| 500+ | ₹26.99 | ₹13,495.00 |
| 2,500+ | ₹24.61 | ₹61,525.00 |
| 4,000+ | ₹23.18 | ₹92,720.00 |
5 × ₹46.68
₹233.40
excl. GST
₹275.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SDH8595ASTR
₹233.40 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Voltage - Supply
- 9.5V~25.5V
- Voltage - Breakdown
- 600V
- Topology
- Flyback
- Features
- Constant Current Mode (CC);Constant Voltage (CV);Overtemperature protection (OTP);Over Voltage Protection;Under Voltage Protection;Short Circuit Protection;Over Current Protection
- Duty Cycle(Max)
- 50%
- Feedback System
- Primary-side feedback
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
SDH8595AS is a high-performance Primary-Side Regulation (PSR) switching power supply controller that employs PFM modulation technology for high performance and efficiency. It integrates a built-in 600V MOSFET and high-voltage startup circuitry to minimize external component count. Both output voltage and output current are sensed from the primary side. Systems designed with the SDH8595AS eliminate the need for secondary-side feedback control and loop compensation, simplifying the circuit and reducing system cost, while achieving excellent line regulation and load regulation.
Applications
- Charger
- AC/DC Adapter
Key features
- Primary-side feedback, no optocoupler required, simplified design
- Full voltage range, high-accuracy output voltage and current
- Low startup current
- Adjustable output voltage and current
- External line loss compensation
- Integrated 600V MOSFET
- Integrated high-voltage startup
- Standby power < 75mW
- Integrated line voltage and primary inductance compensation
- Integrated LEB
- PFM operation mode
- No external compensation required
- Integrated multi-protection with auto-restart
- OTP protection
- VCC overvoltage protection
- VCC undervoltage lockout (UVLO)
- Cycle-by-cycle current limiting
- Output short-circuit protection
- Overcurrent protection
- Maximum on-time protection
