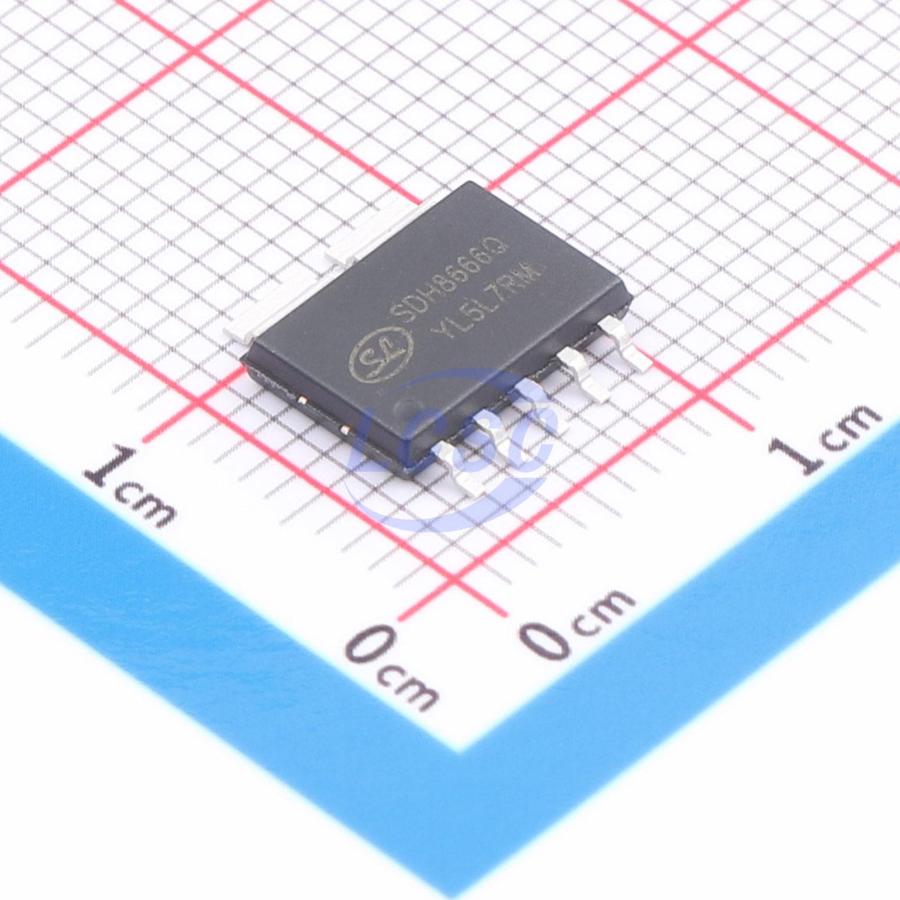

Hangzhou Silan Microelectronics

SDH8666QTR

Converter Offline Flyback Topology 60kHz~70kHz EHSOP-5-325mil-1.7mm

EHSOP-5-325mil-1.7mmROHS CompliantActive

IC OFFLINE SWITCH FLYBACK EHSOP-5-325mil-1.7mm

Manufacturer: Hangzhou Silan Microelectronics
Manufacturer part #: SDH8666QTR
Store part #: C41361518
Package / case: EHSOP-5-325mil-1.7mm
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,435 in stock

#C41361518

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
1+	₹88.88	₹88.88
10+	₹71.72	₹717.20
30+	₹63.03	₹1,890.90
100+	₹54.55	₹5,455.00
500+	₹49.33	₹24,665.00
1,000+	₹46.73	₹46,730.00

Quantity (min 1)

1 × ₹88.88

₹88.88

excl. GST

₹104.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SDH8666QTR

₹88.88 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -25℃~+85℃
Frequency - Switching: 60kHz~70kHz
Voltage - Breakdown: 760V
Voltage - Supply: 8V~26V
Topology: Flyback
Features: Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection;Soft-start
Duty Cycle(Max): 80%
Working Mode: QR;CCM;PFM Modulation

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.41 g

Overview

SDH8666Q is a quasi-resonant current-mode PWM+PFM controller for switching power supplies, featuring high-voltage startup, an integrated high-voltage power MOSFET, and an external sampling resistor. The SDH8666Q integrates a high-voltage startup constant-current source to enable high-voltage startup. Standby power consumption is low, less than 40mW. It supports multi-mode control: under heavy load, it operates in QR mode at high input voltage to reduce switching losses, and in CCM mode at fixed frequency (65KHz) at low input voltage. Under medium and light load, it operates in QR+PFM mode to improve conversion efficiency. Under no-load conditions, it enters hiccup mode to effectively reduce standby power consumption. The SDH8666Q features frequency dithering to reduce EMI, peak current compensation to maintain consistent maximum output power across different AC input voltages, and soft-start functionality to reduce device stress during power-up. The SDH8666Q integrates comprehensive protection functions for various fault conditions, including VCC overvoltage protection, output overload protection, output overvoltage protection, leading-edge blanking, cycle-by-cycle peak current limiting, output diode short-circuit protection, AC input undervoltage protection, and over-temperature protection.
