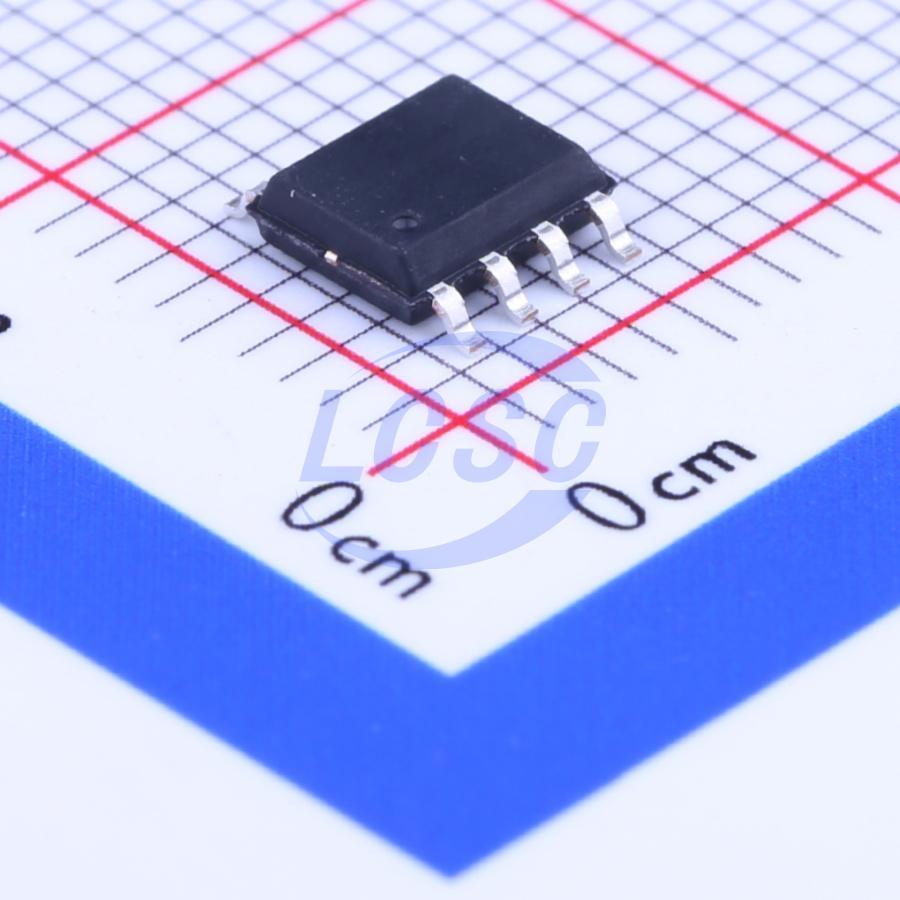

SE100-HF

SE100 is designed to support QuickCharge QC 2.0 (QC2.0) specifications. It is a low-cost solution to support QC2.0 functions. SE100 incorporates all necessary functions to add QC2.0 capability to standard Adaptor designs, Portable Battery designs, and Car-charger designs. SE100 supports the full output voltage range of either Class A or Class B. Optionally Class B can be inhibited for protecting the battery charger from accidental damage. SE100 automatically detects whether a connected Powered Device (PD) is QC2.0 capable before enabling output voltage adjustment. If a PD that is not compliant to QC2.0 is detected the SE100 disables output voltage adjustment to ensure safe operation with legacy 5 V only USB PDs.

Applications

• Adaptors for smart phones, tablets, netbooks, digital cameras, and bluetooth accessories
• Portable Battery Packs supporting QC2.0 functions
• Car Cargers supporting QC2.0 functions
• Other USB power output ports supporting QC2.0 functions

Key features

• Fully supports Quick Charge 2.0 specification
• Class A: 5 V, 9 V, and 12 V output voltage
• Class B: 5 V, 9 V, 12 V, and 20 V output voltage
• USB battery charging specification revision 1.2 compatible
• Automatic USB DCP shorting D+ to D- line
• Default 5 V mode operation
• Very low power consumption
• Less than 1 mW at 5 V output
• Fail safe operation
• Adjacent pin-to-pin short-circuit fault
• Open circuit pin fault
