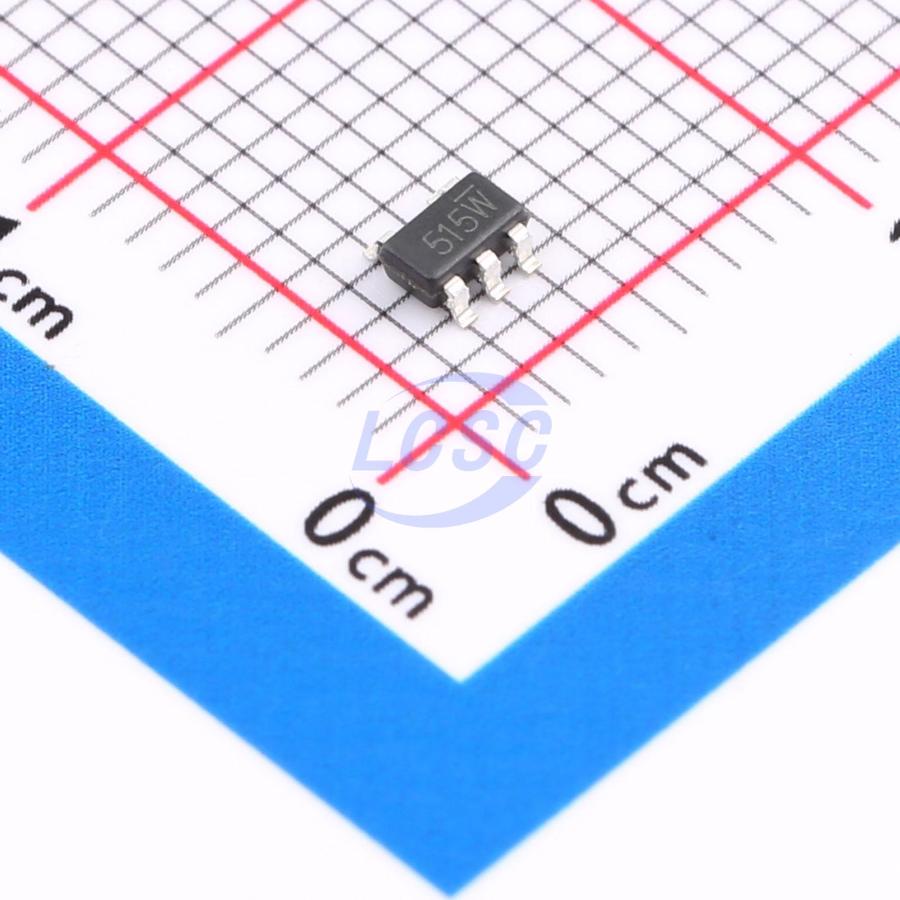

Seaward Elec

SE2515-HF

Power Supply Controller SOT-23-5 Power Management - Specialized

SOT-23-5RoHSActive

Dual/Single USB Charger Port Controller

Manufacturer: Seaward Elec
Manufacturer part #: SE2515-HF
Store part #: C115749
Package / case: SOT-23-5
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,390 in stock

#C115749

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
5+	₹11.96	₹59.80
50+	₹9.55	₹477.50
150+	₹8.33	₹1,249.50
500+	₹7.44	₹3,720.00
3,000+	₹6.22	₹18,660.00
6,000+	₹5.86	₹35,160.00

Quantity (min 5, multiples of 5)

5 × ₹11.96

₹59.80

excl. GST

₹70.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SE2515-HF

₹59.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Power Supply Controller
Features: Under-voltage lockout;Automatic protocol detection
Protocol: BC 1.2
Operating Temperature: -40℃~+120℃
Voltage - Supply: 4.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.042 g

Overview

SE2515 is specifically designed to handle the interface requirements of different cellphones, per the different specifications. This allows the same chargers (such as wall chargers, car chargers, and portable batteries) to provide the maximum allowable charging current to the connected cellphones. 1. Voltage Divider DCP. D+/D- will need to be independently provide 2V/2.7V or 2.7V/2.7V. 2. Divider 2 DCP, D+/D- are required to provide 2.7V/2.0V; 3. BC1.2 DCP needs to short D+/D-; 4. YD/T 1591_2009: Shorting D+ and D-. 5. D+ and D- are all 1.2V.

Applications

Car USB Chargers
Wall Adaptors with USB Interface
Portable USB Battery Chargers

Key features

Comply with BC1.2 USB charging specification, Support shorting D+ and D of USB DCP
Comply with China YD/T 1591_2009 Shorting D+ and D- specification.
Support voltage divider DCP ½ specifications.
Automatically switch among the supported standards.
Operating Voltage range: 4.5V~5.5V
Packages: SOT23-5
