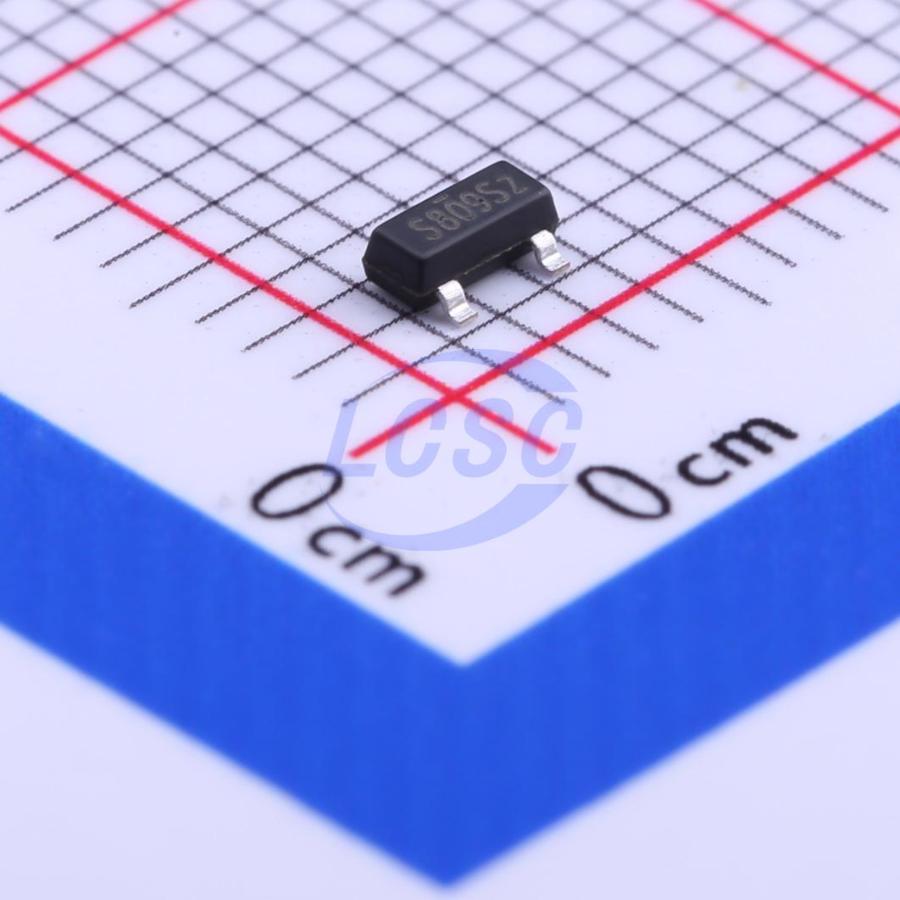

SE809-HF-2.93V
150ms Active Low 2V~5.5V 1 SOT-23 Supervisors
3-Pin Microprocessor Reset Monitor
- Manufacturer
- Seaward Elec
- Manufacturer part #
- SE809-HF-2.93V
- Store part #
- C220483
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,680 in stock
#C220483
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.54 | ₹62.70 |
| 50+ | ₹10.04 | ₹502.00 |
| 150+ | ₹8.78 | ₹1,317.00 |
| 500+ | ₹7.85 | ₹3,925.00 |
| 3,000+ | ₹7.10 | ₹21,300.00 |
| 6,000+ | ₹6.72 | ₹40,320.00 |
5 × ₹12.54
₹62.70
excl. GST
₹73.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SE809-HF-2.93V
₹62.70 for 5 + GST
Specifications
- Reset Timeout
- 150ms
- Operating Temperature
- 0℃~+85℃
- Reset Active Level
- Active Low
- standby current
- 7uA
- Voltage - Supply
- 2V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The SE809 is a cost-effective system supervisor Integrated Circuit (IC) designed to monitor Vcc in digital and mixed signal systems and provide a warning signal when the system power supply is out of working range, and a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 20μsec of Vcc falling through the reset voltage threshold. Reset is maintained active for a minimum of 150msec after Vcc rises above the reset threshold. The SE809 has an active-low RESET output. The output of the SE809 is guaranteed valid down to VCC = 1V. The SE809 is optimized to reject fast transient glitches on the Vcc line. Low supply current of 18μA (VCC = 3.3V) makes these devices suitable for battery powered applications. The output voltages range from 1.7V to 4.5V in 100mV increments. Standard voltage versions are 2.63, 2.93, 3.08, 4.0, 4.38, and 4.63V.
Applications
- Computers
- Embedded systems
- Battery powered equipment
- Critical μP power supply monitoring
Key features
- Precision VCC Monitor for 2.8V, 3.0V, 3.3V, and 5.0V Supplies
- 150msec Guaranteed Minimum RESET Output Duration
- RESET Output Guaranteed to VCC = 1.0V
- Low 7μA Supply Current
- VCC Transient Immunity
- No External Components
- Small SOT - 23 Package and TO - 92 Package
- Wide Operating Temperature: 0°C to 85°C
