Seaward ElecDatasheet (PDF)

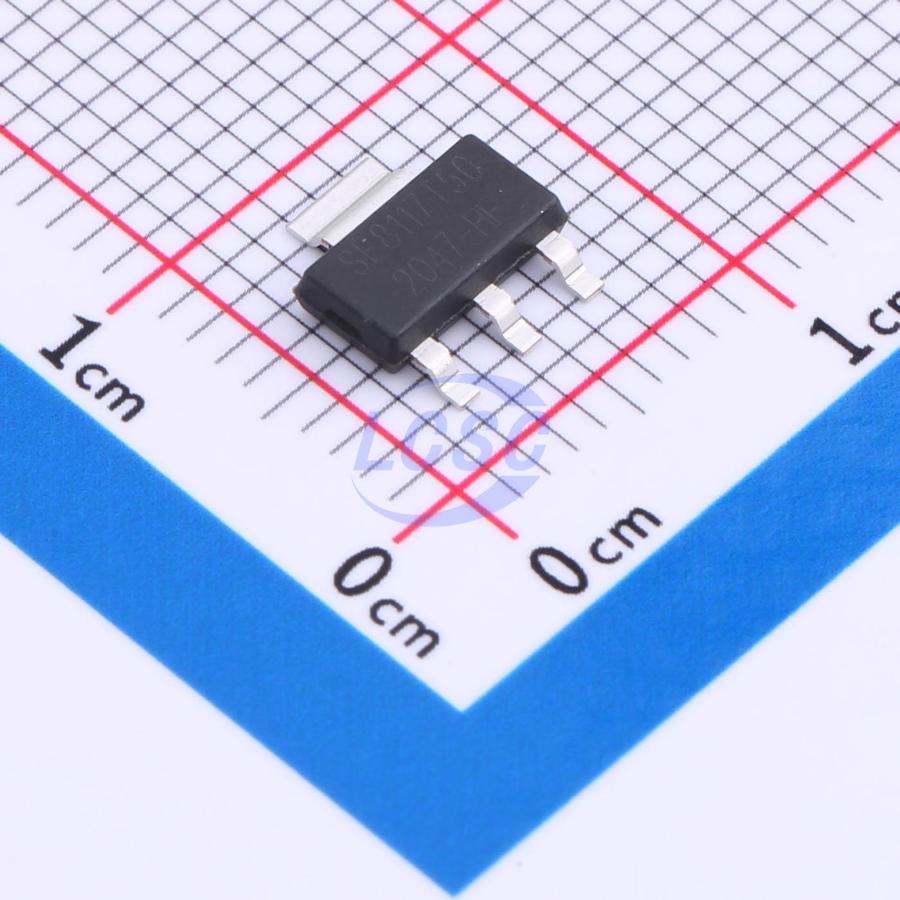

SE8117T50HF
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
1A Positive Voltage Regulators
- Manufacturer
- Seaward Elec
- Manufacturer part #
- SE8117T50HF
- Store part #
- C2847493
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,395 in stock
#C2847493
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.30 | ₹66.50 |
| 50+ | ₹10.68 | ₹534.00 |
| 150+ | ₹9.38 | ₹1,407.00 |
| 500+ | ₹8.40 | ₹4,200.00 |
| 2,500+ | ₹6.77 | ₹16,925.00 |
| 5,000+ | ₹6.39 | ₹31,950.00 |
5 × ₹13.30
₹66.50
excl. GST
₹78.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SE8117T50HF
₹66.50 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2.7mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 9V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.269 g
Overview
The SE8117 series of high performance low dropout voltage regulators are designed for applications that require efficient conversion and fast transient response. In addition, SE8117 is designed to be stable under conditions where Cin and Cout are not present. However, it is recommended to include Cin and Cout in the system design as this will speed up the transient response and increase the PSRR rating. SE8117 is characterized under Junction Temperature from -40°C to +125°C.
Applications
- Active SCSI Terminators.
- High Efficiency Linear Regulators.
- 5V to 3.3V Linear Regulators
- Motherboard Clock Supplies.
Key features
- Low Dropout Performance.
- Low Quiescent Current: 2.7mA (Typ.)
- Guaranteed 1A Output Current.
- Wide Input Supply Voltage Range.
- Stable operation without Cin and Cout.
- Over-temperature and Over-current Protection.
- Fixed or Adjustable Output Voltage.
- Available in SOT-223 and TO252 Packages.
- RoHS Compliant
