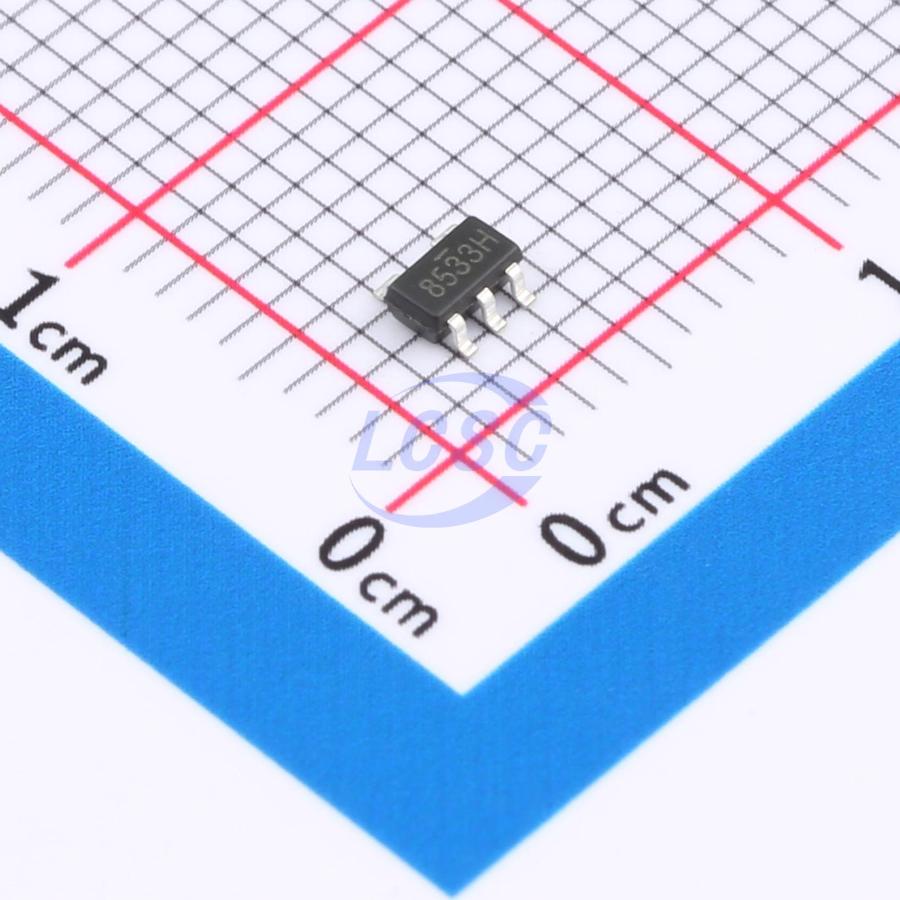

SE8533L2-HF
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5RoHSActive
50V/2uA/300mA, Ultra-Low-lq, Low Dropout LDO
- Manufacturer
- Seaward Elec
- Manufacturer part #
- SE8533L2-HF
- Store part #
- C46641366
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,840 in stock
#C46641366
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.95 | ₹114.75 |
| 50+ | ₹18.02 | ₹901.00 |
| 150+ | ₹15.92 | ₹2,388.00 |
| 500+ | ₹13.28 | ₹6,640.00 |
| 3,000+ | ₹12.11 | ₹36,330.00 |
| 6,000+ | ₹11.40 | ₹68,400.00 |
5 × ₹22.95
₹114.75
excl. GST
₹135.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SE8533L2-HF
₹114.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 45V
- Features
- Enable control;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The SE85XX series is designed for power-sensitive applications. It integrates a precision high-voltage input stage and an ultra-low-power bias current branch, forming an ultra-low quiescent current, low-dropout linear regulator. This series operates over an input voltage range of VOUT+1V to 45V, with a quiescent current of only 2.5μA, offering 1% initial accuracy and low dropout voltage (300mV typical at 100mA load). The SE85XX is available in fixed output voltage versions of 1.8V, 2.8V, 3.0V, 3.3V, 3.6V, and 5.0V. Additional features include short-circuit protection and thermal shutdown.
Applications
- Battery-powered smoke sensors
- Smoke sensors
- Microcontrollers
- Home appliances and instruments
Key features
- Ultra-low quiescent current: 2.5μA (typical)
- Wide operating voltage range: VOUT+1V to 45V
- High output current: ≥300mA
- No overshoot during system startup
- Short-circuit protection with no overshoot
- Low dropout voltage
- High accuracy output voltage: ±1%
- Excellent power supply/load transient response
- Low temperature coefficient: ±100ppm/℃
- Thermal protection and short-circuit protection
- SOT-89, SOT-23, SOT23-5 packages
- Custom pin configuration supported
