Seaward ElecDatasheet (PDF)

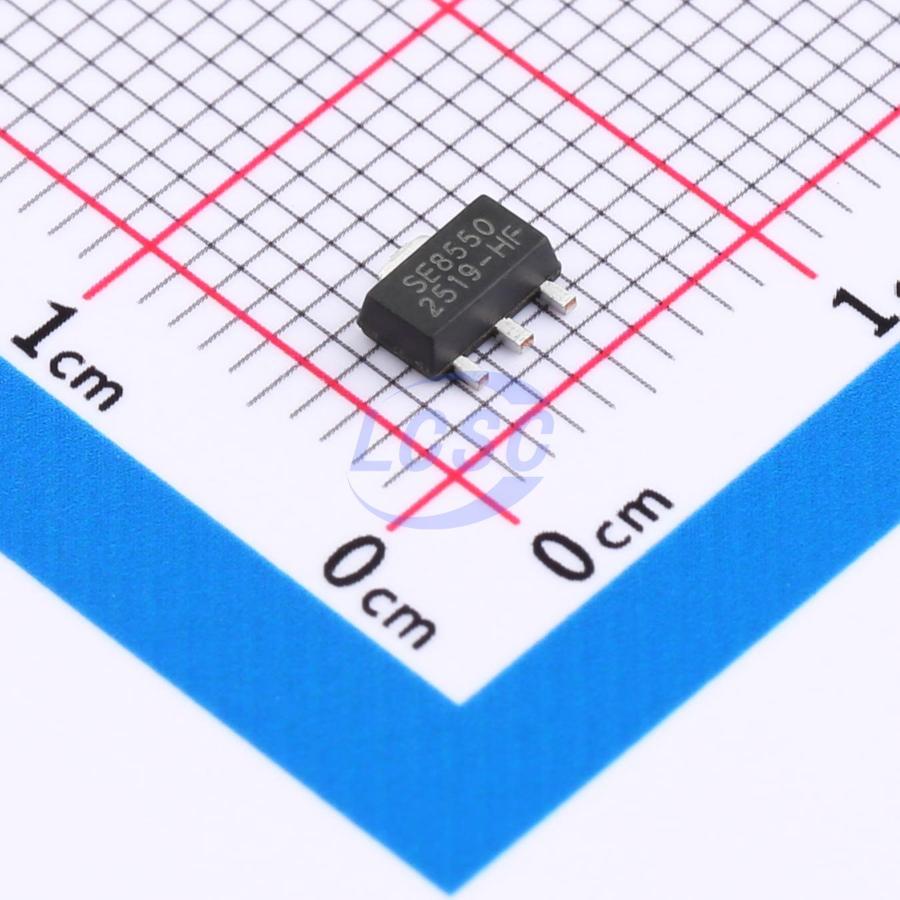

SE8550K2-HF
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
40V/2μA/200mA, Ultra-Low-lq, Low Dropout LDO
- Manufacturer
- Seaward Elec
- Manufacturer part #
- SE8550K2-HF
- Store part #
- C115012
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,960 in stock
#C115012
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.57 | ₹127.85 |
| 50+ | ₹20.11 | ₹1,005.50 |
| 150+ | ₹17.77 | ₹2,665.50 |
| 1,000+ | ₹14.65 | ₹14,650.00 |
| 2,000+ | ₹13.35 | ₹26,700.00 |
| 5,000+ | ₹12.57 | ₹62,850.00 |
5 × ₹25.57
₹127.85
excl. GST
₹150.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SE8550K2-HF
₹127.85 for 5 + GST
Specifications
- Output Voltage
- 5V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 200mA
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
SE85XX series is designed for power-sensitive applications. It includes a precision and high voltage input stage, an ultra-low-power bias current branch, and results in a ultra-low-power and lowdropout linear regulator.
Applications
- Battery-powered Smoke sensor
- Smoke sensor Microcontrollers
- Household appliances and instruments
Key features
- Ultra Low Quiescent Current: 2.5 μA(Typ.)
- Wide Operating Voltage: VOUT + 1V to 35V
- High output current: ≥ 200mA
- System startup with no overshoot
- Short circuit protection is designed with no overshoot
- UVLO 1.8V
- Low Dropout Voltage
- Excellent power / load transient response
- Low temperature coefficient: ±100ppm/℃
- Thermal and Short-Circuit Protection
- SOT-89、SOT-23、SOT23-5 package
- Customer Pin Assignments are available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SE8550K1-HF#C471282Seaward Elec · SOT-89-3 | Seaward Elec | SOT-89-3 | 485 | ₹25.45 · 485 in stock | View |
 | SE8650K1-HF#C2838442Seaward Elec · SOT-89-3 | Seaward Elec | SOT-89-3 | 655 | ₹31.63 · 655 in stock | View |
 | SE8650K2-HF#C496616Seaward Elec · SOT-89-3 | Seaward Elec | SOT-89-3 | 25 | ₹30.20 · 25 in stock | View |
 | SE8650K2B-HF#C19188780Seaward Elec · SOT89-3 | Seaward Elec | SOT89-3 | 935 | ₹29.26 · 935 in stock | View |
 | SE8750K1-HF#C2838445Seaward Elec · SOT-89-3 | Seaward Elec | SOT-89-3 | 660 | ₹19.08 · 660 in stock | View |
