Seaward ElecDatasheet (PDF)

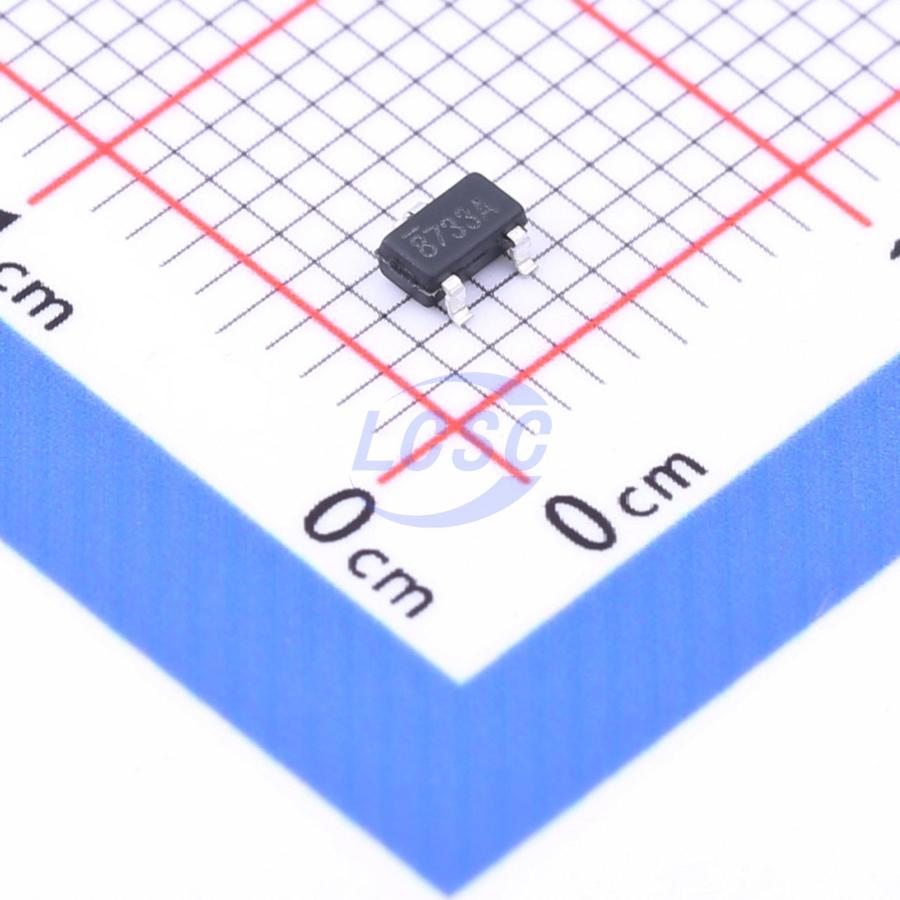

SE8733X2-HF
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
45V, Ultra-Low Quiescent Current LDO
- Manufacturer
- Seaward Elec
- Manufacturer part #
- SE8733X2-HF
- Store part #
- C969998
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
805 in stock
#C969998
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.94 | ₹89.70 |
| 50+ | ₹14.28 | ₹714.00 |
| 150+ | ₹12.44 | ₹1,866.00 |
| 500+ | ₹11.06 | ₹5,530.00 |
| 3,000+ | ₹9.17 | ₹27,510.00 |
| 6,000+ | ₹8.61 | ₹51,660.00 |
5 × ₹17.94
₹89.70
excl. GST
₹105.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SE8733X2-HF
₹89.70 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 4.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 40V
- Features
- Built-in soft-start;Input under-voltage protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
SE87XX series is designed for power-sensitive applications. It includes a precision and high voltage input stage, an ultra-low-power bias current branch, and results in an ultra-low-power and low-dropout linear regulator. The SE87XX operates from an input voltage of VOUT + 1V to 40V, consumes only 2.6μA of quiescent current, and offers 1% initial accuracy and SoftStart function. At power startup, the output voltage overshoot is less than 100mV. The SE87XX regulators are available in standard SOT89 - 3L, and SOT23 - 3L packages. Standard products are Pb - free and Halogen - free.
Applications
- Battery-powered Smoke sensor
- Smoke sensor
- Microcontrollers
- Household appliances and instruments
Key features
- Input voltage: 4.5V ~ 40V
- Output voltage: 1.8V ~ 5.7V
- Output accuracy: ≤ ±1%
- Output current: 100mA (Typ.)
- PSRR: 60dB @ 100Hz
- Quiescent current: 4.2μA @ ΔVIN = 12V (Typ.)
- ESD HBM: 3KV
- Recommend capacitor: 10μF
- No overshoot from short circuit recovery
- UVLO at 1.8V
