Seaward ElecDatasheet (PDF)

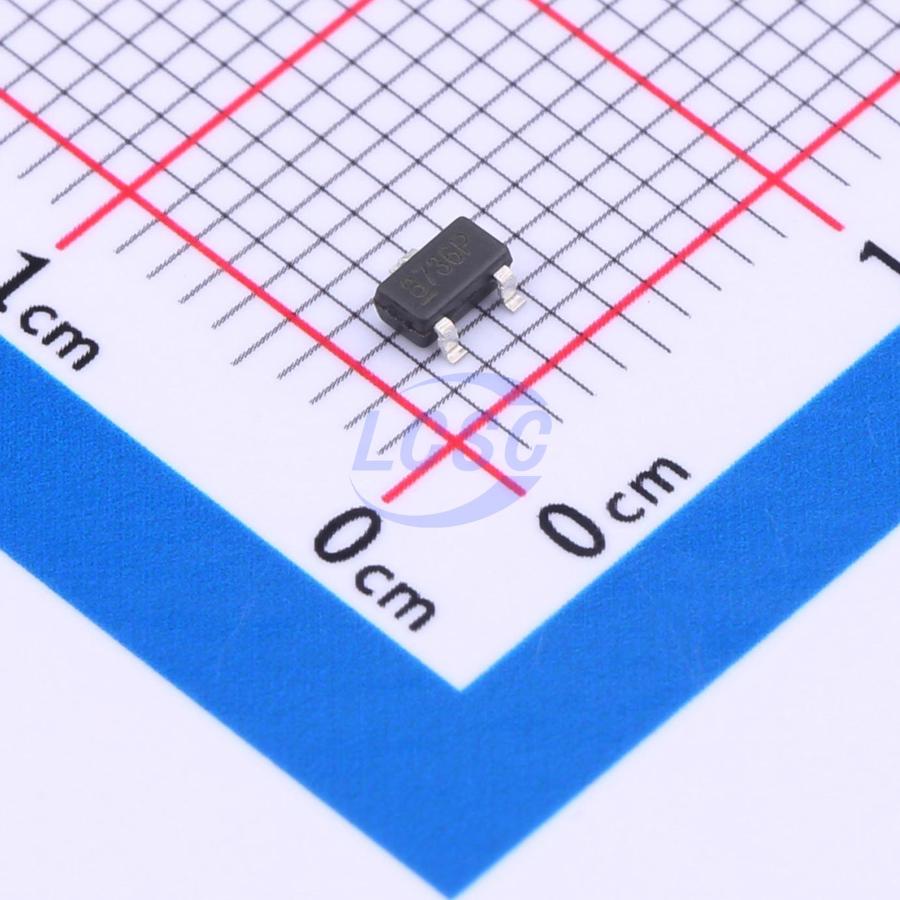

SE8736X1-HF
3.6V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3LRoHSActive
45V, Ultra-Low Quiescent Current LDO
- Manufacturer
- Seaward Elec
- Manufacturer part #
- SE8736X1-HF
- Store part #
- C5151041
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,650 in stock
#C5151041
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.79 | ₹93.95 |
| 50+ | ₹14.94 | ₹747.00 |
| 150+ | ₹13.01 | ₹1,951.50 |
| 500+ | ₹11.56 | ₹5,780.00 |
| 3,000+ | ₹9.94 | ₹29,820.00 |
| 6,000+ | ₹9.35 | ₹56,100.00 |
5 × ₹18.79
₹93.95
excl. GST
₹110.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SE8736X1-HF
₹93.95 for 5 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 4.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 40V
- Output Type
- Fixed
- Features
- Built-in soft-start;Input under-voltage protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
SE87XX series is designed for power-sensitive applications. It includes a precision and high voltage input stage, an ultra-low-power bias current branch, and results in a ultra-low-power and low-dropout linear regulator. The SE87XX operates from an input voltage of VOUT + 1V to 40V, consumes only 2.6μA of quiescent current, and offers 1% initial accuracy and SoftStart function. At power startup, the output voltage overshoot is less than 100mV. The SE87XX regulators is available in standard SOT89-3L, SOT23-5L and SOT23-3L packages. Standard products are Pb-free and Halogen-free.
Applications
- Battery-powered Smoke sensor
- Smoke sensor
- Microcontrollers
- Household appliances and instruments
Key features
- Input voltage: 4.5V ~ 40V
- Output voltage: 1.8V ~ 5.7V
- Output accuracy: ≤ ±1%
- Output current: 100mA (Typ.)
- PSRR: 60dB @ 100Hz
- Quiescent current: 4.2μA @ ΔVIN = 12V (Typ.)
- ESD HBM: 3KV
- Recommend capacitor: 10μF
- No overshoot from short circuit recovery
- UVLO at 1.8V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SE8536X2-HF#C115736Seaward Elec · SOT-23 | Seaward Elec | SOT-23 | On request | ₹20.15 · 0 in stock | View |
