Seaward ElecDatasheet (PDF)

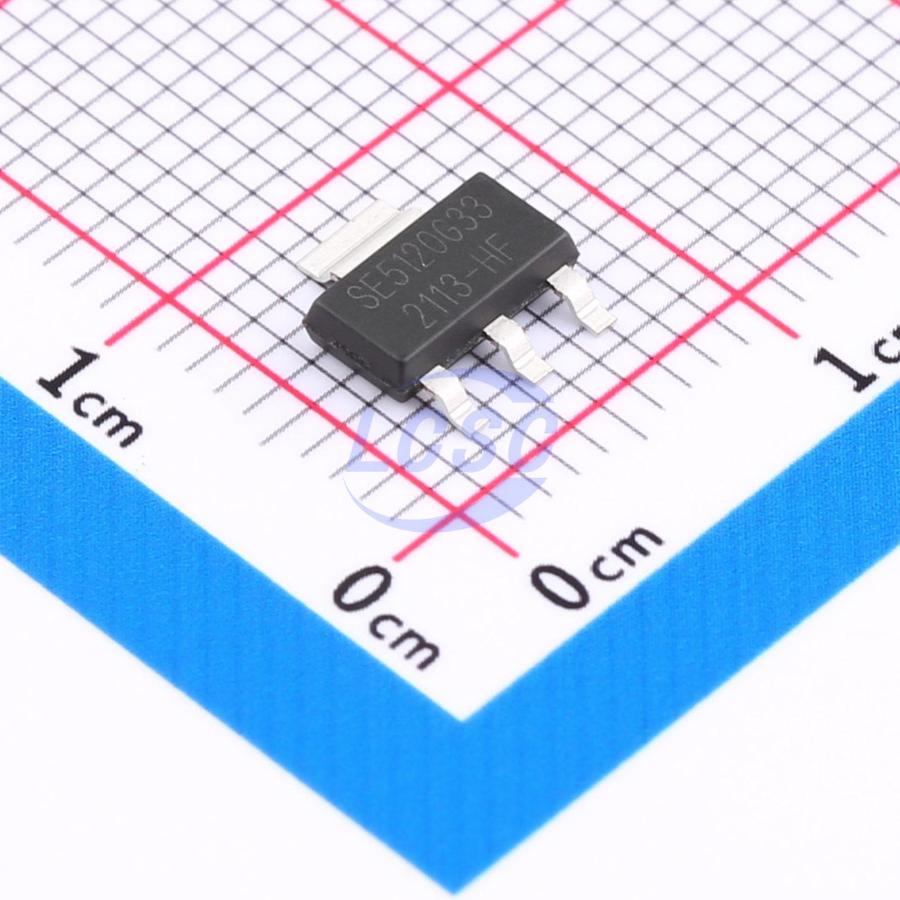

SED5120
Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223-3RoHSActive
1.5A CMOS Ultra LDO Voltage Regulator
- Manufacturer
- Seaward Elec
- Manufacturer part #
- SED5120
- Store part #
- C2838439
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,035 in stock
#C2838439
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.62 | ₹83.10 |
| 50+ | ₹13.16 | ₹658.00 |
| 150+ | ₹11.44 | ₹1,716.00 |
| 500+ | ₹10.15 | ₹5,075.00 |
| 2,500+ | ₹8.07 | ₹20,175.00 |
| 5,000+ | ₹7.55 | ₹37,750.00 |
5 × ₹16.62
₹83.10
excl. GST
₹98.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SED5120
₹83.10 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 150uA
- Output Configuration
- Positive
- Operating Voltage
- 5V
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The SE5120 series of fixed output ultra low dropout linear regulators are designed for portable battery powered applications, which require low power consumption and low dropout voltage. Each device contains a bandgap voltage reference, an error amplifier, a PMOS power transistor, and current limit and temperature limit protection circuits. The SE5120 is designed to work with low cost electrolytic and ceramic capacitors and requires a minimum output capacitor of 10μF.
Applications
- USB removable devices
- MPEG4 devices
- Wireless LAN’s
- Hand-Held Instrumentation
- Portable DVD players
- Digital camera
Key features
- Typical 150mV Dropout Voltage at 500mA
- Output Voltages: 0.8V to 3.9V (0.1V Step)
- Excellent Line and Load Regulation.
- High Accuracy Output Voltage of 2%.
- Ultra-Low Ground Current at 150μA (Typ.)
- Thermal and Over-Current Protection.
- Short Circuit Protection
- Standard SOT-223 and TO-252 Package.
