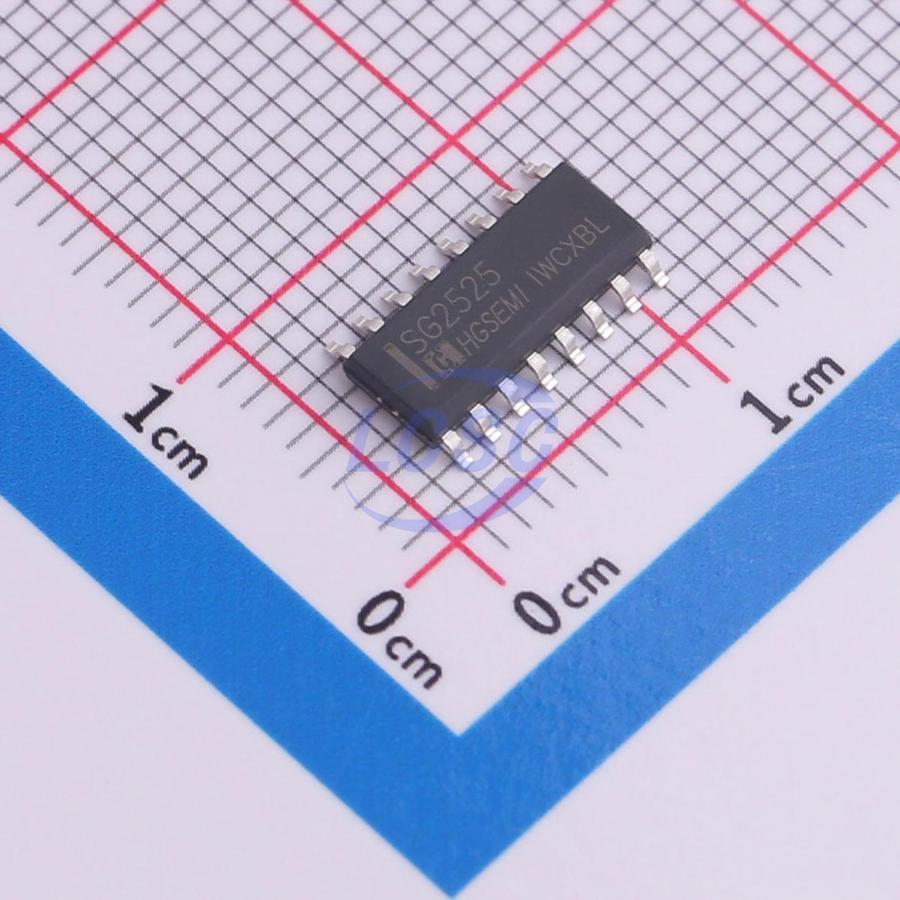

SG2525M/TR
Converter Offline 100Hz~500kHz SOP-16
SOP-16RoHSActive
PWM Controller
- Manufacturer
- HGSEMI
- Manufacturer part #
- SG2525M/TR
- Store part #
- C22396905
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,515 in stock
#C22396905
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.54 | ₹122.70 |
| 50+ | ₹19.04 | ₹952.00 |
| 150+ | ₹16.68 | ₹2,502.00 |
| 500+ | ₹13.73 | ₹6,865.00 |
| 2,500+ | ₹12.42 | ₹31,050.00 |
| 5,000+ | ₹11.64 | ₹58,200.00 |
5 × ₹24.54
₹122.70
excl. GST
₹144.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SG2525M/TR
₹122.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 400mA
- Frequency - Switching
- 100Hz~500kHz
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 8V~35V
- Features
- Under-voltage lockout;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection;Soft-start
- Duty Cycle(Max)
- 49%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.304 g
Overview
The chip features a +5.1V reference voltage with ±1% accuracy. Since the reference voltage falls within the input common-mode range of the error amplifier, no external resistors are required. The SG3525/SG2525 supports master-slave operation and can also synchronize with an external clock. Dead time is adjustable via a resistor between CT and the discharge pin. Additional on-chip functional circuits include: soft-start, shutdown, and undervoltage lockout. The output stage of the SG3525/SG2525 controller features a high-power totem-pole output with source and sink currents exceeding 150mA. The output logic is NOR logic, with a low level in the "off" state.
Key features
- Operating voltage range 8~35V
- 5.1V reference voltage, ±1% accuracy
- Oscillation frequency range 100Hz~500kHz; oscillator sync signal input
- Adjustable dead time
- Built-in soft-start circuit
- Pulse-by-pulse shutdown
- Input undervoltage lockout with hysteresis
- PWM lockout function, inhibits multiple pulses
