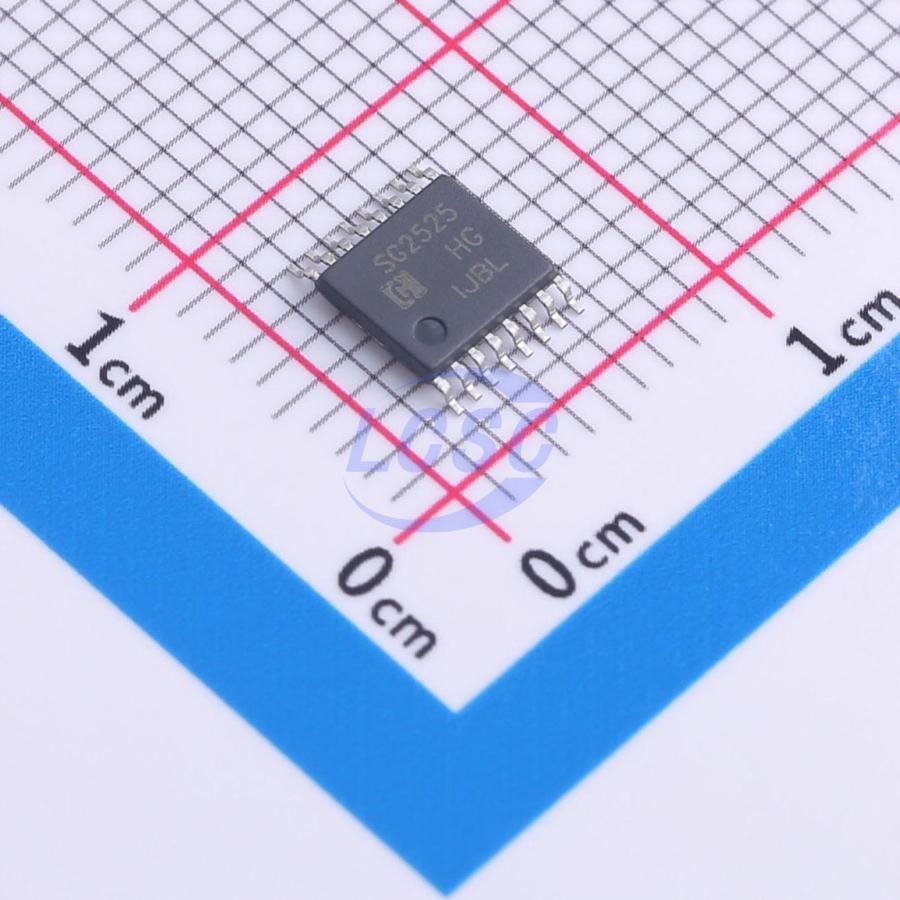

SG2525MT/TR
Converter Offline 100Hz~500kHz TSSOP-16
TSSOP-16RoHSActive
PWM Controller
- Manufacturer
- HGSEMI
- Manufacturer part #
- SG2525MT/TR
- Store part #
- C22396906
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,815 in stock
#C22396906
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.57 | ₹137.85 |
| 50+ | ₹21.64 | ₹1,082.00 |
| 150+ | ₹19.10 | ₹2,865.00 |
| 500+ | ₹15.94 | ₹7,970.00 |
| 2,500+ | ₹14.54 | ₹36,350.00 |
| 5,000+ | ₹13.69 | ₹68,450.00 |
5 × ₹27.57
₹137.85
excl. GST
₹162.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SG2525MT/TR
₹137.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 400mA
- Frequency - Switching
- 100Hz~500kHz
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 8V~35V
- Features
- Under-voltage lockout;Under Voltage Protection;Soft-start
- Duty Cycle(Max)
- 49%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.177 g
Overview
The chip features a +5.1V reference voltage with ±1% accuracy. Since the reference voltage falls within the input common-mode range of the error amplifier, no external resistors are required. It supports both master/slave mode operation and synchronization with an external clock. Dead time can be adjusted via a resistor connected between the CT pin and the discharge terminal. Additional on-chip functional circuits include: soft-start, shutdown, and undervoltage circuits. The output stage of the control IC features a high-power totem-pole output with source and sink currents exceeding 150mA. The output logic is NOR logic, with a low level in the "off" state.
Key features
- Operating voltage range: 8~35V
- 5.1V reference voltage, ±1% accuracy
- Oscillator frequency range: 100Hz~500KHz; oscillator sync signal input
- Adjustable dead time
- Built-in soft-start circuit
- Pulse-by-pulse shutdown
- Input undervoltage lockout with hysteresis
- PWM latch function, inhibits multiple pulses
