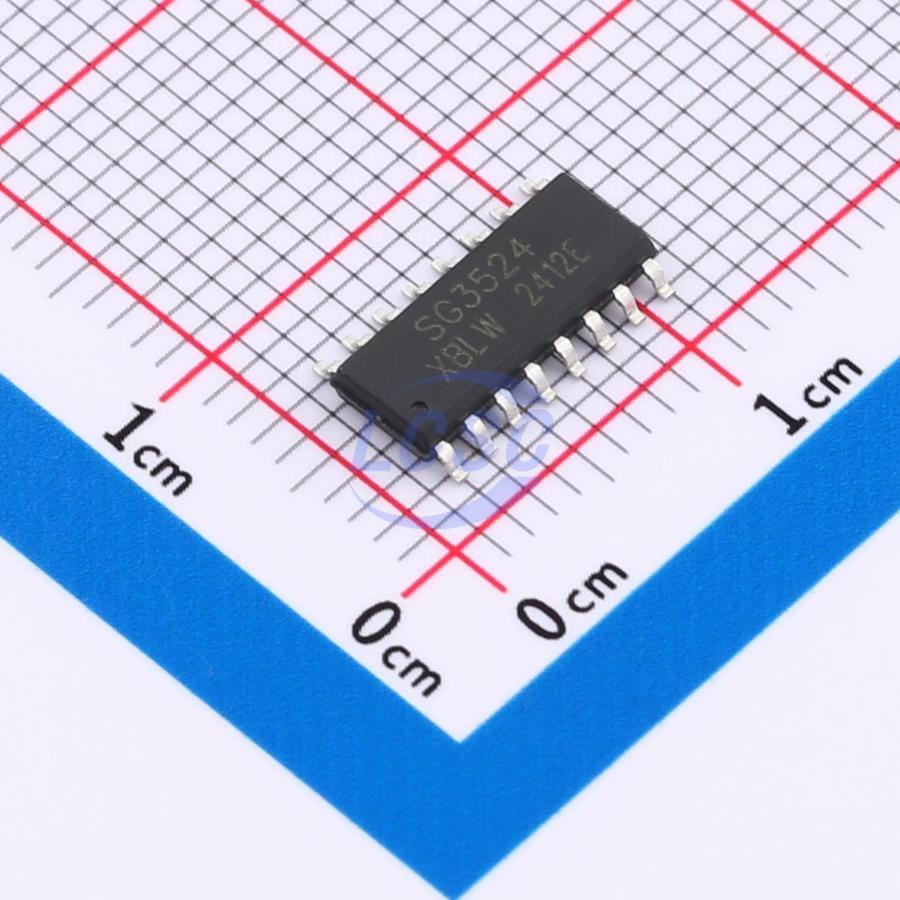

SG3524DTR(XBLW)
100mA 100Hz~300kHz 8V~40V Push-Pull SOP-16 AC DC Converters, Offline Switchers RoHS
SOP-16ROHS CompliantActive
Pulse width modulation circuit of switching power supply
- Manufacturer
- XBLW
- Manufacturer part #
- SG3524DTR(XBLW)
- Store part #
- C23066804
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C23066804
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.58 | ₹107.90 |
| 50+ | ₹16.95 | ₹847.50 |
| 150+ | ₹14.96 | ₹2,244.00 |
| 500+ | ₹12.49 | ₹6,245.00 |
| 2,500+ | ₹11.38 | ₹28,450.00 |
| 5,000+ | ₹10.72 | ₹53,600.00 |
5 × ₹21.58
₹107.90
excl. GST
₹127.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SG3524DTR(XBLW)
₹107.90 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Output Current
- 100mA
- Frequency - Switching
- 100Hz~300kHz
- Voltage - Supply
- 8V~40V
- Features
- Over Current Protection
- Topology
- Push-Pull
- Duty Cycle(Max)
- 49%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.286 g
Overview
The SG3524 is a pulse width modulation circuit for switching power supplies. It contains a reference voltage source, error amplifier, oscillator, pulse width modulation and pulse width control Flip-flop, dual alternating output, current limiting circuit and turn-off circuit. The circuit can be used for switching power supply control of any polarity, transformer-coupled DC-DC switching power supply, transformer pressurization and polarity conversion, and other power supply applications. SG3524 operating temperature is 0°C to +70°C.
Applications
- Single-end output application (terminal output control can reach 0~90% duty cycle)
- Push-pull output application
Key features
- With 5V reference voltage source.
- 100Hz to 300KHz oscillation frequency range.
- Good external synchronization function.
- Contains two 50mA outputs.
- Contains a current limiting circuit.
- Complete PWM control circuit.
- Single-ended or push-pull output.
- The total power consumption is less than 10mA.
