HXY MOSFETDatasheet (PDF)

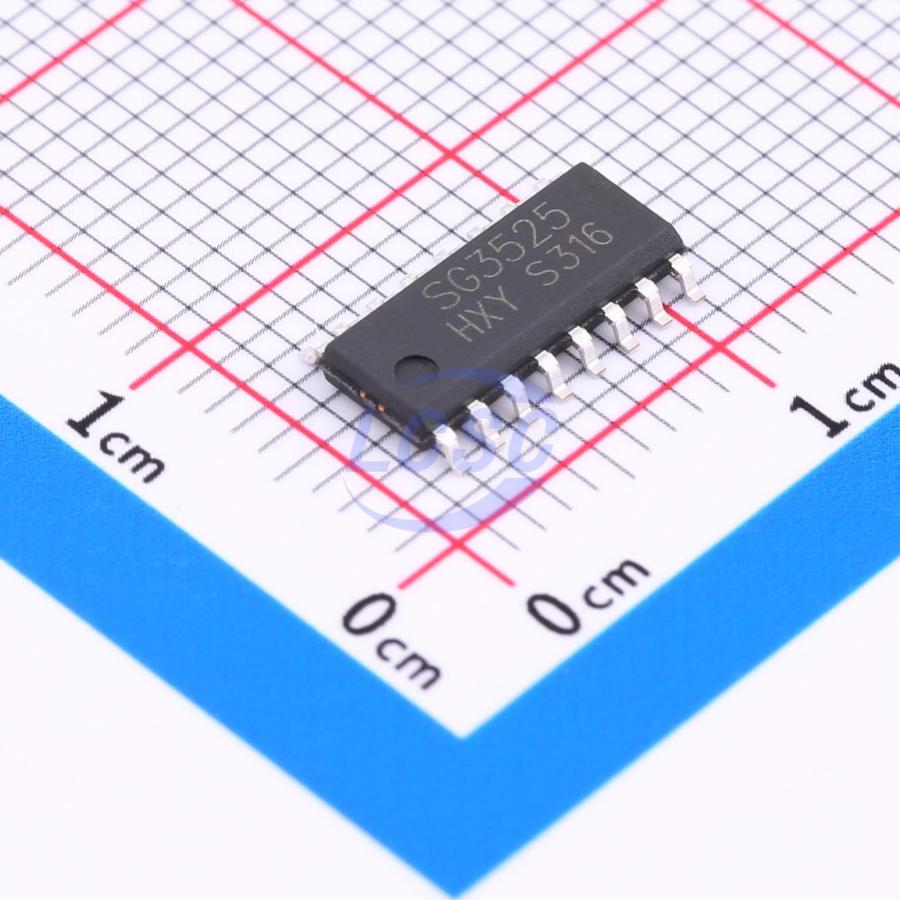

SG3525-HXY
Converter Offline 0.1kHz~500kHz SOP-16
SOP-16ROHS CompliantActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SG3525-HXY
- Store part #
- C7427360
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,495 in stock
#C7427360
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.08 | ₹180.40 |
| 50+ | ₹29.12 | ₹1,456.00 |
| 150+ | ₹26.13 | ₹3,919.50 |
| 500+ | ₹22.41 | ₹11,205.00 |
| 2,500+ | ₹19.37 | ₹48,425.00 |
| 5,000+ | ₹18.38 | ₹91,900.00 |
5 × ₹36.08
₹180.40
excl. GST
₹212.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SG3525-HXY
₹180.40 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Frequency - Switching
- 100Hz~500kHz
- Output Current
- 500mA
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 8V~35V
- Topology
- Totem pole
- Features
- Under-voltage lockout;Soft-start;Under Voltage Protection
- Duty Cycle(Max)
- 49%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.286 g
Overview
The reference voltage accuracy is ±1%, and since the reference voltage falls within the input common-mode range of the error amplifier, no external resistors are required. It can operate in master/slave mode or synchronize with an external clock. Dead time can be adjusted via a resistor between CT and the discharge pin. Additional internal functions include: soft-start circuit, shutdown circuit, and undervoltage circuit. The output stage of the control IC features a high-power totem-pole output with source and sink currents exceeding 200mA, providing NOR logic output — low level in the "off" state.
Key features
- Operating voltage range 8 - 35V
- 5.1V reference voltage, ±1% accuracy
- Oscillator frequency range 100Hz - 500KHz
- Oscillator sync signal input
- Adjustable dead time
- Built-in soft-start circuit
- Pulse-by-pulse shutdown
- Input undervoltage lockout with hysteresis
- PWM latch function, inhibits multiple pulses
