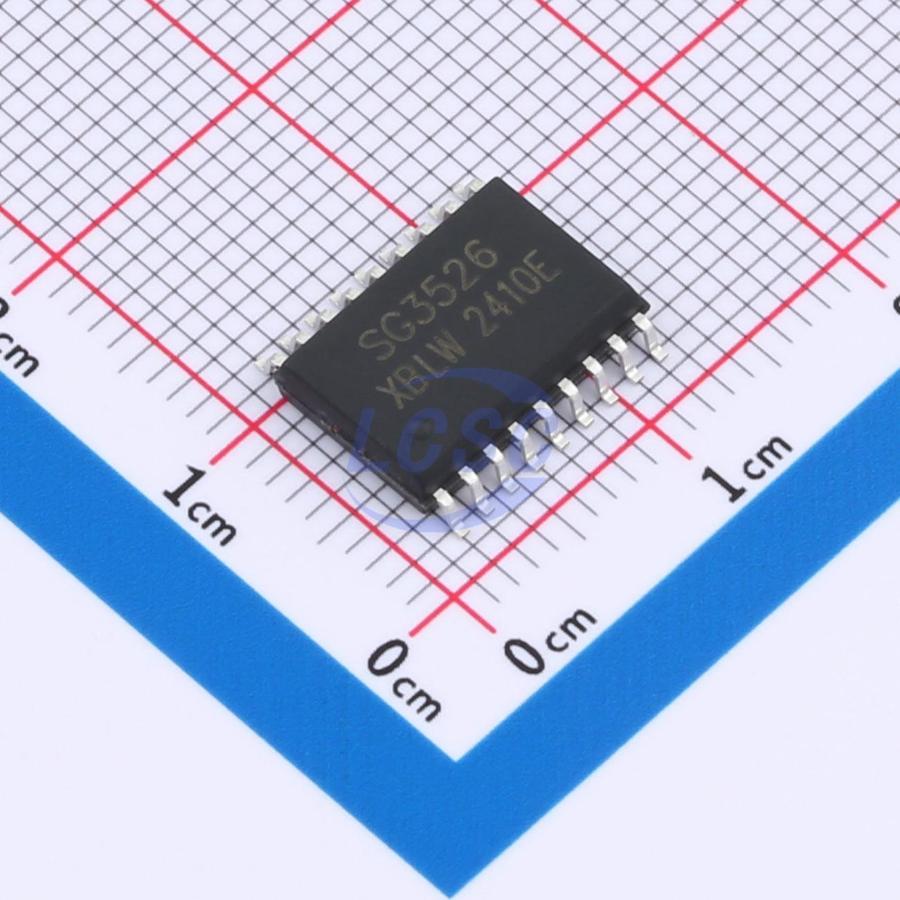

SG3526DTR(XBLW)
100mA 1Hz~400kHz 1000mW 8V~35V SOP-18 AC DC Converters, Offline Switchers RoHS
SOP-18ROHS CompliantActive
High-performance pulse width modulator integrated circuit
- Manufacturer
- XBLW
- Manufacturer part #
- SG3526DTR(XBLW)
- Store part #
- C23066806
- Package / case
- SOP-18
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,222 in stock
#C23066806
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.96 | ₹71.96 |
| 10+ | ₹56.19 | ₹561.90 |
| 30+ | ₹49.49 | ₹1,484.70 |
| 100+ | ₹41.07 | ₹4,107.00 |
| 500+ | ₹37.39 | ₹18,695.00 |
| 1,000+ | ₹35.01 | ₹35,010.00 |
1 × ₹71.96
₹71.96
excl. GST
₹84.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SG3526DTR(XBLW)
₹71.96 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+125℃
- Output Current
- 100mA
- Frequency - Switching
- 1Hz~400kHz
- Pd - Power Dissipation
- 1000mW
- Voltage - Supply
- 8V~35V
- Features
- Adjustable soft-start;Under-voltage lockout;Under Voltage Protection;Over Current Protection
- Duty Cycle(Max)
- 49%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.73 g
Overview
The SG3526 is a high performance pulse width modulator integrated circuit intended for fixed frequency switching regulators and other power control applications. Functions included in this IC are a temperature compensated voltage reference, sawtooth oscillator, error amplifier, pulse width modulator, pulse metering and steering logic and two high current totem pole outputs ideally suited for driving the capacitance of power FETs at high speeds. Additional protective features include soft start and undervoltage lockout, digital current limiting, double pulse inhibit, adjustable dead time and a data latch for single pulse metering. All digital control ports are TTL and B - series CMOS compatible. Active low logic design allows easy wired - OR connections for maximum flexibility.
Key features
- 8.0V to 35V Operation
- 5.0V ±1% Trimmed Reference
- 1.0Hz to 400KHz Oscillator Range
- Dual Source/Sink Current Outputs: ±100mA
- Digital Current Limiting
- Programmable Dead Time
- Undervoltage - Lockout
- Single Pulse Metering
- Programmable Soft - Start
- Wide Current Limit Common Mode
- Range Guaranteed 6 Unit Synchronization
