SGMICRODatasheet (PDF)

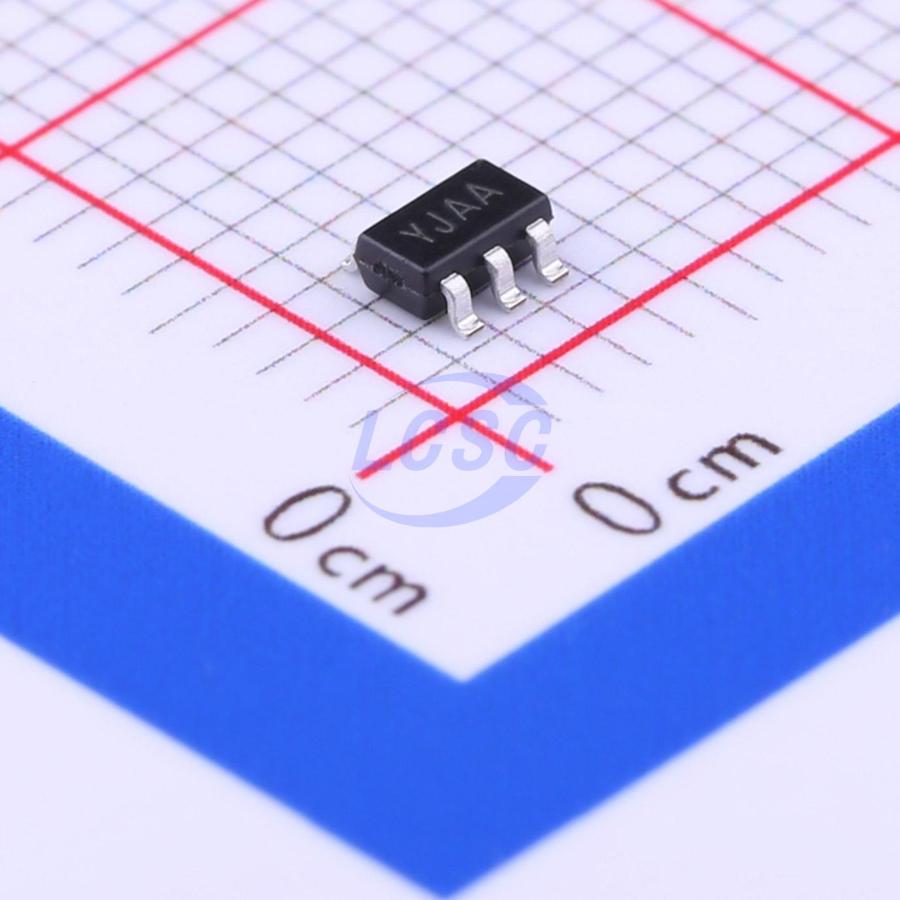

SGM2019-ADJYN5G/TR
1.2V~5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low Power, Low Dropout, RF-Linear Regulators
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2019-ADJYN5G/TR
- Store part #
- C24330
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,205 in stock
#C24330
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.38 | ₹166.90 |
| 50+ | ₹26.37 | ₹1,318.50 |
| 150+ | ₹23.36 | ₹3,504.00 |
| 500+ | ₹19.62 | ₹9,810.00 |
5 × ₹33.38
₹166.90
excl. GST
₹196.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM2019-ADJYN5G/TR
₹166.90 for 5 + GST
Specifications
- Output Voltage
- 1.2V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Noise bypass terminal
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The SGM2019 is a low power, low noise and low dropout voltage RF linear regulator. It is capable of supplying 300mA output current with typical dropout voltage of only 270mV. The operating input voltage range is from 2.5V to 5.5V. The fixed output voltage range is from 1.2V to 3.3V and the adjustable output voltage range is from 1.2V to 5.0V. Other features include logic-controlled shutdown mode, output current limit and thermal shutdown protection. The SGM2019 is available in Green SOT-23-5 and SC70-5 packages. It operates over an operating temperature range of -40°C to +85°C.
Applications
- Modems
- MP3 Players
- Cellular Telephones
- PCMCIA Cards
- Palmtop Computers
- Portable Electronics
Key features
- Operating Input Voltage Range: 2.5V to 5.5V
- Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V, 2.6V, 2.8V, 2.85V, 3.0V, 3.3V
- Adjustable Output Voltage Range: 1.2V to 5.0V
- Output Voltage Accuracy: ±2.5% at ±25°C
- Low Output Noise: 30μV_RMS (TYP)
- Low Dropout Voltage: 270mV (TYP) at 300mA
- High PSRR: 74dB (TYP) at 1kHz
- Shutdown Current: 0.01μA (TYP)
- Thermal Shutdown Protection
- Output Current Limit
- -40°C to ±85°C Operating Temperature Range
- Available in Green SC70-5 and SOT-23-5 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SGM2028-ADJYN5G/TR#C80894SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | 5,380 | ₹43.12 · 5,380 in stock | View |
