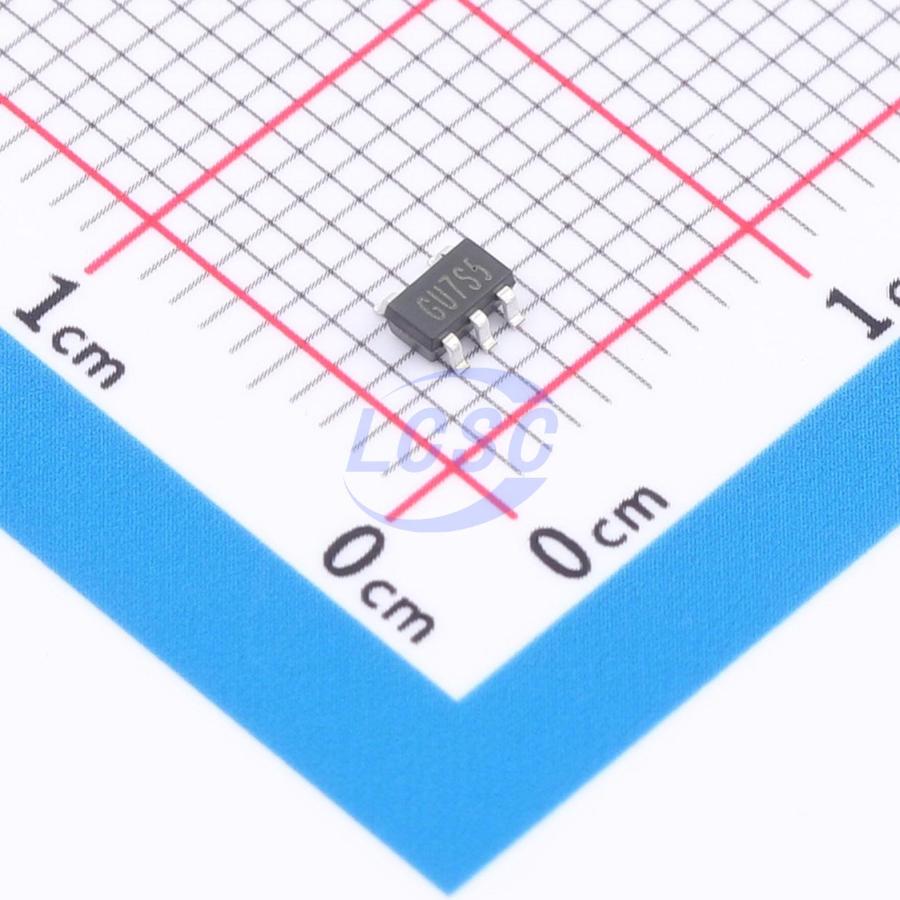

SGM2033-5.0XN5G/TR

The SGM2033 is an ultra-low noise, low VIN, high PSRR, high accuracy and low dropout voltage linear regulator which is designed using CMOS technology. It provides 250mA output current capability. The operating input voltage range is from 1.8V to 5.5V and output voltage range is from 1.2V to 5.0V. Other features include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2033 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2033 is suitable for application which needs low noise and fast transient response power supply, such as power supply of camera module in smart phone, etc. The SGM2033 is available in Green SOT-23-5 and UTDFN-1×1-4AL packages. It operates over an operating temperature range of -40°C to +125°C.

Applications

• Portable Electronic Devices
• Smoke Detectors
• Battery-Powered Equipment
• Smartphones and Tablets
• Digital Cameras and Audio Devices

Key features

• Operating Input Voltage Range: 1.8V to 5.5V
• Fixed Output Voltage Range: 1.2V to 5.0V
• Adjustable Output Voltage Range: 1.2V to 5.0V
• Output Current Limit: 500mA (TYP)
• Ultra-Low Quiescent Current: 13.5μA (TYP)
• Shutdown Current: 0.1μA (TYP)
• High PSRR: 94dB (TYP) at 1kHz
• Low Dropout Voltage:
• 175mV (TYP) at 250mA when VOUT = 1.8V (SOT-23-5)
• 145mV (TYP) at 250mA when VOUT = 1.8V (UTDFN-1×1-4AL)
• Output Short-Circuit Protection
• Thermal Shutdown Protection
• Fast Load Transient Response
• Stable with 1μF Small Case Size Ceramic Capacitors
• -40°C to +125°C Operating Temperature Range
• Available in Green SOT-23-5 and UTDFN-1×1-4AL Packages
