SGMICRODatasheet (PDF)

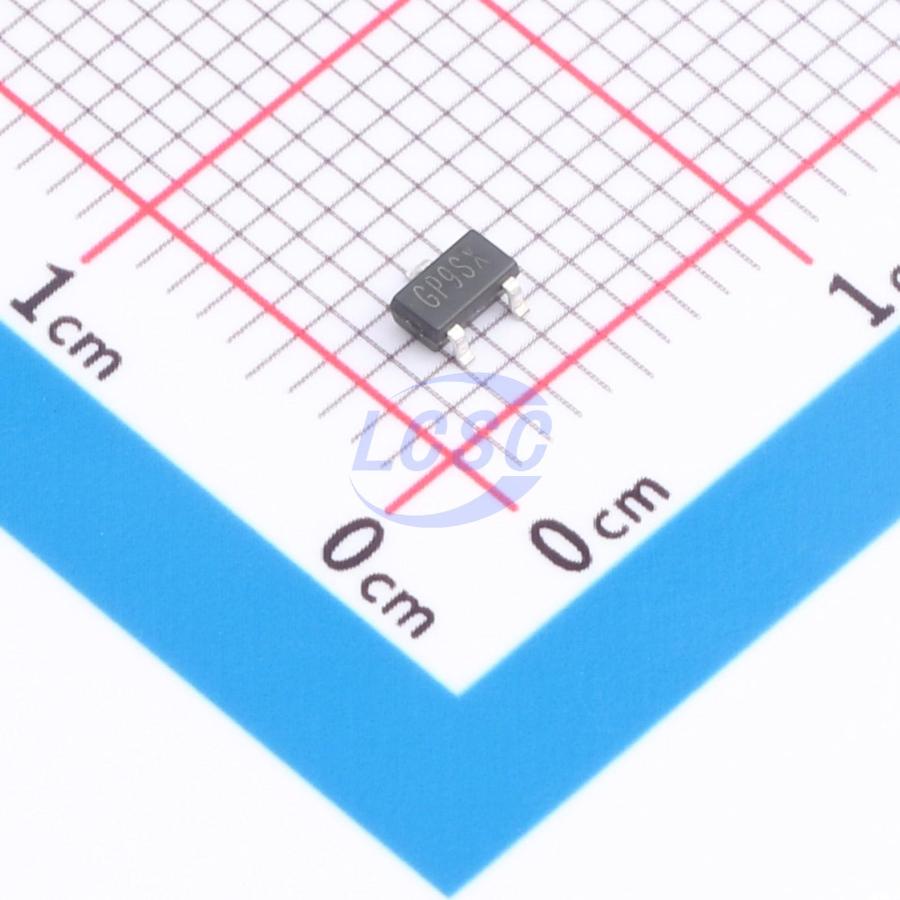

SGM2034-3.0YN3G/TR
3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2034-3.0YN3G/TR
- Store part #
- C5152713
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,675 in stock
#C5152713
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹64.40 | ₹322.00 |
| 50+ | ₹48.20 | ₹2,410.00 |
| 150+ | ₹41.07 | ₹6,160.50 |
| 500+ | ₹32.43 | ₹16,215.00 |
5 × ₹64.40
₹322.00
excl. GST
₹379.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM2034-3.0YN3G/TR
₹322.00 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 7.5V
- Output Current
- 250mA
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown;Reverse-polarity current protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.219 g
Overview
The SGM2034 is an ultra-low current consumption, low dropout voltage and high accuracy linear regulator. It is capable of supplying 250mA output current with only 1μA (TYP) current consumption. The typical dropout voltage is only 70mV at 100mA. The operating input voltage range is from 1.7V to 7.5V and fixed output voltages are 1.2V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 3.8V, 4.0V, 4.5V and 5.0V. Other features include short-circuit current limit and thermal shutdown protection. The SGM2034 is available in Green SOT-23-3 and SOT-89-3 packages. It operates over an operating temperature range of -40°C to +85°C.
Applications
- Wearable Device
- Smart Phone
- Portable Equipment
Key features
- Operating Input Voltage Range: 1.7V to 7.5V
- Fixed Outputs of 1.2V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 3.8V, 4.0V, 4.5V and 5.0V
- 250mA Output Current
- High Output Voltage Accuracy: ±1.2% at ±25°C
- Ultra-Low Quiescent Current: 1μA (TYP)
- Low Dropout Voltage: 70mV (TYP) at 100mA
- Low Reverse Leakage Current: 0.4μA (TYP) when VOUT > VIN
- Current Limiting and Thermal Protection
- -40°C to +85°C Operating Temperature Range
- Available in Green SOT-23-3 and SOT-89-3 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SGM2021-3.0YN3G/TR#C5141512SGMICRO · SOT-23-3 | SGMICRO | SOT-23-3 | On request | ₹27.99 · 0 in stock | View | |
| SGM2013-3.0XN3/TR#C5152613SGMICRO · SOT-23-3 | SGMICRO | SOT-23-3 | On request | ₹27.92 · 0 in stock | View | |
