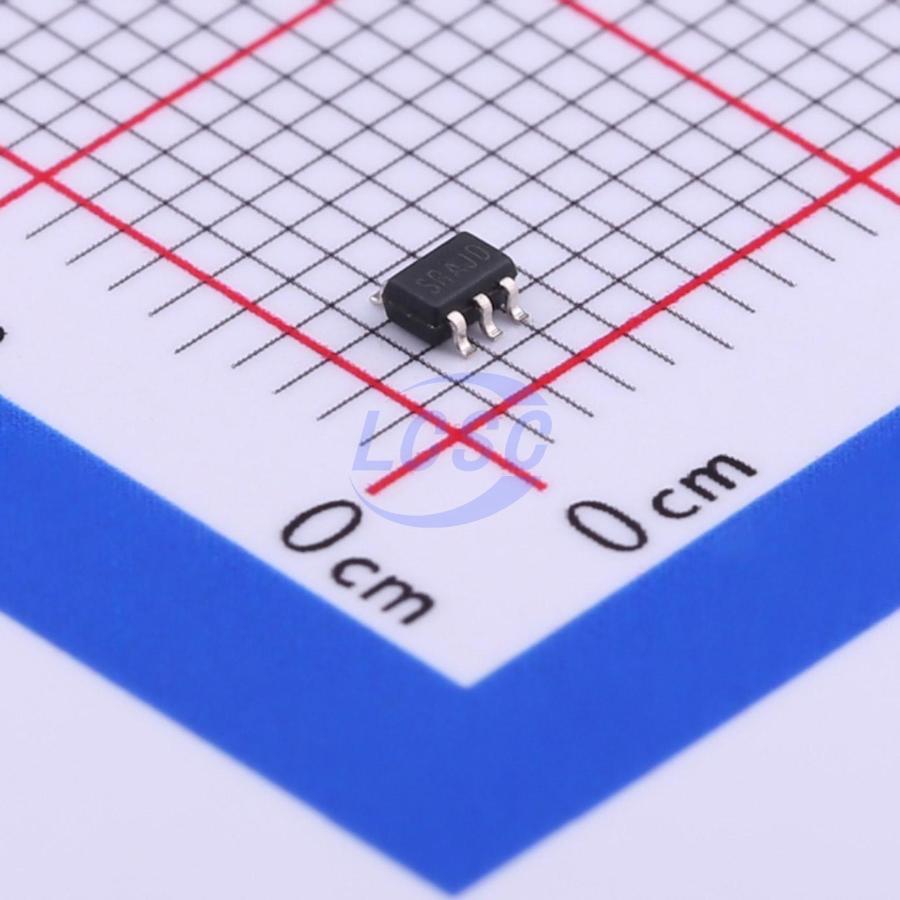

SGM2036-3.3YC5G/TR

3.3V Positive Fixed SC-70-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SC-70-5RoHSActive

300mA, Low Power, Low Dropout, RF Linear Regulators

Manufacturer: SGMICRO
Manufacturer part #: SGM2036-3.3YC5G/TR
Store part #: C132804
Package / case: SC-70-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,445 in stock

#C132804

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹34.56	₹172.80
50+	₹25.80	₹1,290.00
150+	₹22.05	₹3,307.50
500+	₹17.37	₹8,685.00

Quantity (min 5, multiples of 5)

5 × ₹34.56

₹172.80

excl. GST

₹203.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM2036-3.3YC5G/TR

₹172.80 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 20uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Short Circuit Protection;Thermal shutdown;Output discharge;Noise bypass terminal
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

The SGM2036 series low-power, low-dropout, CMOS linear voltage regulators operate from a 1.6V to 5.5V input voltage and deliver up to 300mA output current. They are the perfect choice for low voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The SGM2036 series also offer low dropout voltage to prolong battery life in portable electronics. Systems requiring a quiet voltage source, such as RF applications, will benefit from the SGM2036 series’ low output noise and high PSRR. Other features include a 10nA logic-controlled shutdown mode, short current limit and thermal shutdown protection. The SGM2036 has auto-discharge function to quickly discharge VOUT in the disable status. The SGM2036 is available in Green UTDFN-1×1.4L, SOT-23-5 and SC70-5 packages. It operates over an ambient temperature range of -40°C to +85°C.

Applications

Cellular Telephones
Cordless Telephones
PCMCIA Cards
Modems
MP3 Player
Hand-Held Instruments
Palmtop Computers
Electronic Planners
Portable/Battery-Powered Equipment

Key features

Low Dropout Voltage
Thermal Overload Protection
Built-In Fold Back Protection Circuit
20μA Low Supply Current
10nA Logic-Controlled Shutdown
1.6V to 5.5V Input Voltage Range
Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V, 1.1V, 1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V, 2.2V, 2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V, 3.1V, 3.3V, 3.6V, 4.2V, 4.4V and 5.0V
Adjustable Output from 0.8V to 5.0V
Short Auto-Discharge Function
300mA Output Current
High Output Voltage Accuracy
Quick Start-Up Time
-40°C to +85°C Operating Temperature Range
Available in Green UTDFN-1×1-4L, SOT-23-5 and SC70-5 Packages
