SGMICRO

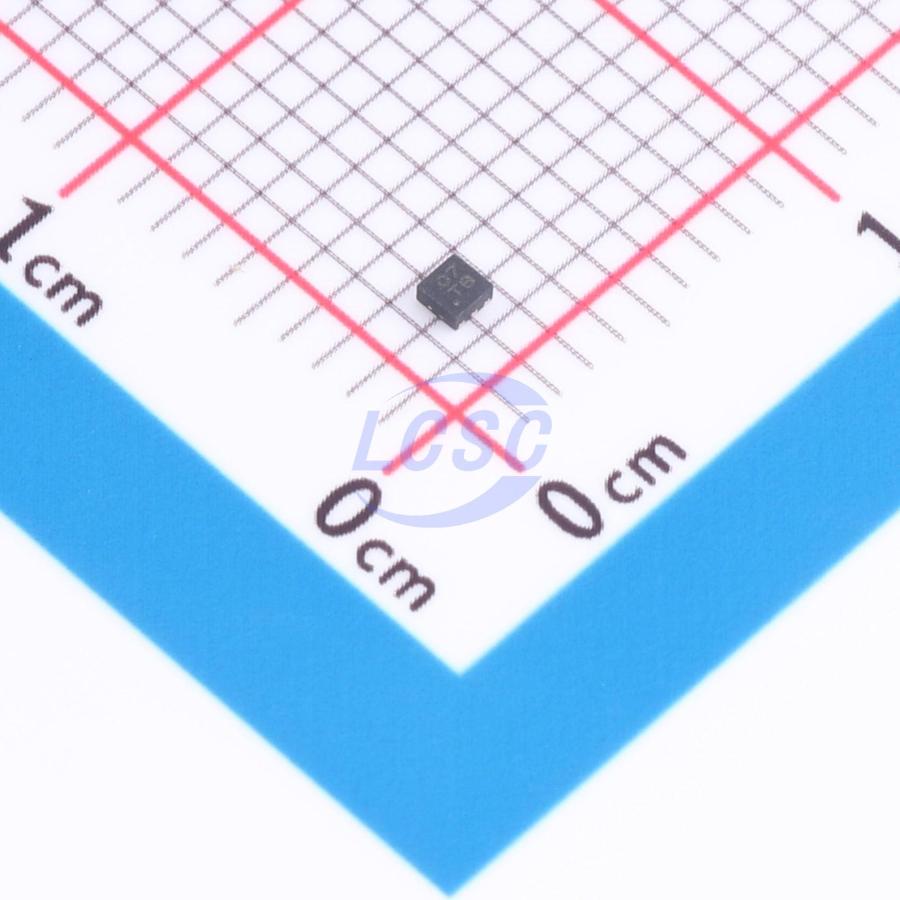

SGM2037-ADJXUDX6G/TR

800mV~3.6V Positive Adjustable UTDFN-6L(1.2x1.2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

UTDFN-6L(1.2x1.2)RoHSActive

Manufacturer: SGMICRO
Manufacturer part #: SGM2037-ADJXUDX6G/TR
Store part #: C5152903
Package / case: UTDFN-6L(1.2x1.2)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,495 in stock

#C5152903

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹55.76	₹278.80
50+	₹41.71	₹2,085.50
150+	₹35.67	₹5,350.50
500+	₹28.10	₹14,050.00

Quantity (min 5, multiples of 5)

5 × ₹55.76

₹278.80

excl. GST

₹328.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

SGM2037-ADJXUDX6G/TR

₹278.80 for 5 + GST

Specifications

Output Voltage: 800mV~3.6V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Ta)
Supply Current (Iq): 53uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 500mA
Features: Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown;Input under-voltage protection;Reverse-polarity current protection
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.026 g

Overview

The SGM2037 is a low noise, low dropout voltage linear regulator which is designed using CMOS technology. It provides 500mA output current capability. The operating input voltage range is from 0.8V to 5.5V and bias supply voltage range is from 2.5V to 5.5V. The output voltage range is from 0.8V to 3.6V. Other features include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2037 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2037 is suitable for applications which need low noise, fast transient response and low IQ consumption, such as battery-powered equipment and smartphones, etc. The SGM2037 is available in Green SOT-23-5, SOT-23-6 and UTDFN-1.2x1.2-6L packages. It operates over an ambient temperature range of -40°C to +125°C.

Applications

Portable Equipment
Smartphone
Industrial and Medical Equipment

Key features

500mA Nominal Output Current
Input Voltage Range: 0.8V to 5.5V Bias Voltage Range: 2.5V to 5.5V
Fixed Output Voltages: 0.8V, 0.9V, 1.0V, 1.05V, 1.1V, 1.15V, 1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, and 3.6V
Adjustable Output Voltage Range: 0.8V to 3.6V
Output Voltage Accuracy: ±0.8% at ±25°C
Low Dropout Voltage: 120mV (TYP) at 500mA
Very Low Bias Input Current: 37μA (TYP)
Very Low Bias Input Current in Shutdown: 0.01μA (TYP)
Low Noise: 25μVRMS (TYP)
Over-Current and Over-Temperature Protections
Fast Load Transient Response
Logic Level Enable Input for ON/OFF Control
-40°C to +125°C Operating Temperature Range
Available in Green SOT-23-5, SOT-23-6 and UTDFN-1.2x1.2-6L Packages
