SGMICRODatasheet (PDF)

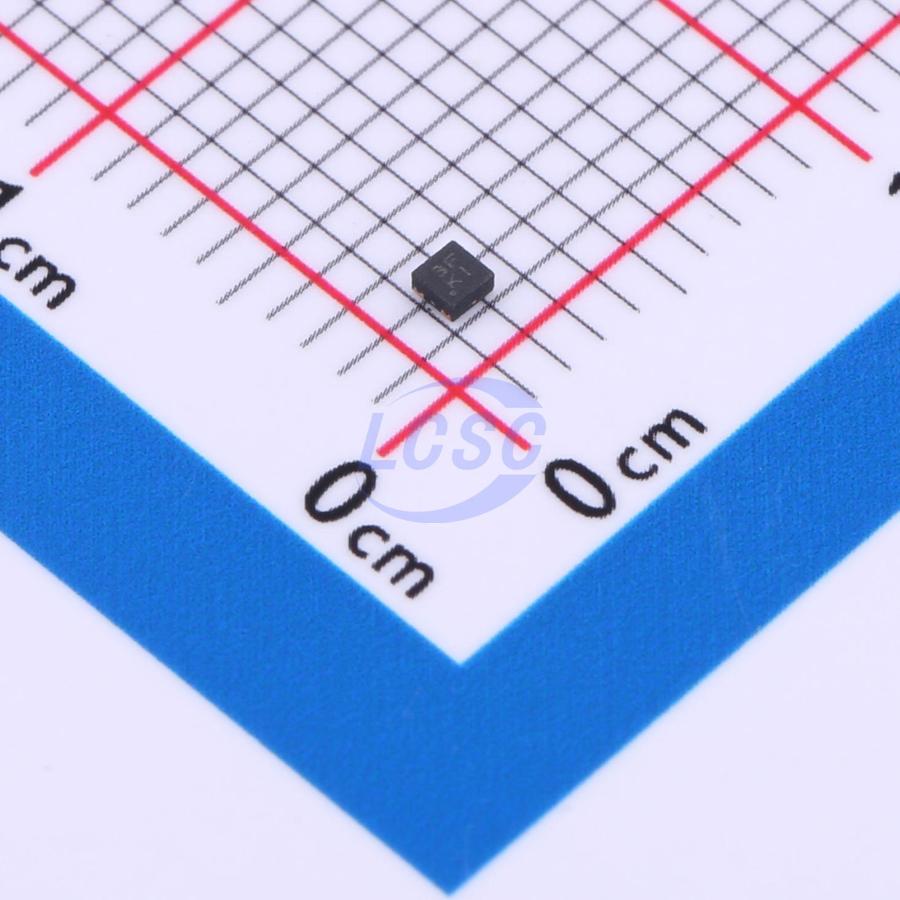

SGM2038-1.25XUDY4G/TR
1.25V Positive Fixed XDFN-4-EP(1.2x1.2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
XDFN-4-EP(1.2x1.2)RoHSActive
500mA, Low Noise, Very Low Dropout Bias Rail CMos Voltage Regulator
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2038-1.25XUDY4G/TR
- Store part #
- C2976618
- Package / case
- XDFN-4-EP(1.2x1.2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,520 in stock
#C2976618
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.38 | ₹266.90 |
| 50+ | ₹39.98 | ₹1,999.00 |
| 150+ | ₹33.08 | ₹4,962.00 |
| 500+ | ₹28.10 | ₹14,050.00 |
5 × ₹53.38
₹266.90
excl. GST
₹314.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SGM2038-1.25XUDY4G/TR
₹266.90 for 5 + GST
Specifications
- Output Voltage
- 1.25V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 53uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Input under-voltage protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
The SGM2038 is a low noise, 500mA LDO equipped with NMOS pass transistor and a separate bias supply voltage (V_BIAS). The device provides very stable, accurate output voltage with low noise suitable for space constrained and noise sensitive applications. In order to optimize performance for battery operated portable applications, the SGM2038 features low I_Q consumption. The SGM2038 is available in Green UTDFN-1.2×1.2-4L package. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Battery-Powered Equipment
- Smartphones and Tablets
- Cameras, DVRs, STB and Camcorders
Key features
- Input Voltage Range: 0.8V to 5.5V
- Bias Voltage Range: 2.5V to 5.5V
- Fixed Output Voltages: 0.8V to 3.6V with 0.05V per Step
- Output Voltage Accuracy: ±0.8%
- 500mA Nominal Output Current
- Low Dropout: 120mV (TYP) at 500mA
- Very Low Bias Input Current: 37μA (TYP)
- Very Low Bias Input Current in Shutdown: 0.01μA (TYP)
- Low Noise: 25μV_RMS (TYP)
- Over-Current and Over-Temperature Protections
- Fast Load Transient Response
- Logic Level Enable Input for ON/OFF Control
- -40°C to +125°C Operating Temperature Range
- Available in Green UTDFN-1.2×1.2-4L Package
