SGMICRO

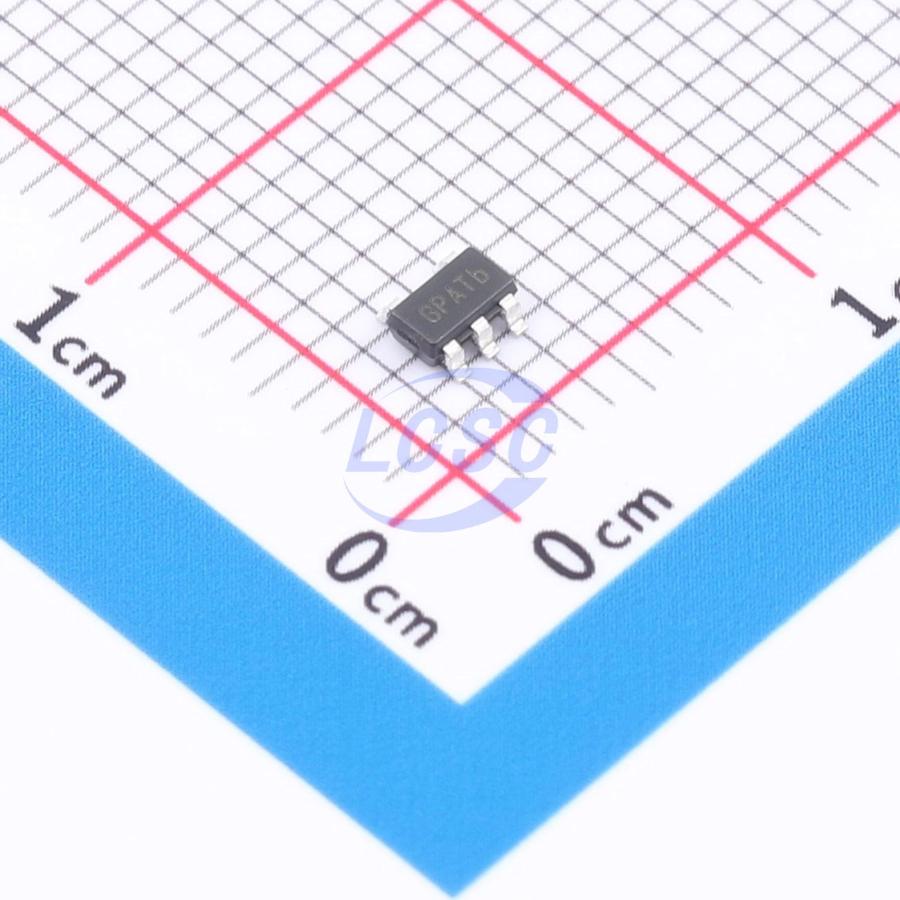

SGM2040-3.0YN5G/TR

3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

Manufacturer: SGMICRO
Manufacturer part #: SGM2040-3.0YN5G/TR
Store part #: C5152773
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,335 in stock

#C5152773

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
5+	₹51.66	₹258.30
50+	₹38.47	₹1,923.50
150+	₹32.85	₹4,927.50
500+	₹25.94	₹12,970.00

Quantity (min 5, multiples of 5)

5 × ₹51.66

₹258.30

excl. GST

₹304.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM2040-3.0YN5G/TR

₹258.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Tj)
Supply Current (Iq): 1.5uA
Output Configuration: Positive
Operating Voltage: 7.5V
Output Current: 250mA
Features: Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge;Reverse-polarity current protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The SGM2040 is an ultra- low current consumption, low dropout voltage and high accuracy linear regulator. It is capable of supplying 250mA output current with only 1 μA (TYP) current consumption. The typical dropout voltage is only 60mV at 100mA. The operating input voltage range is from 1.7V to 7.5V and fixed output voltages are 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V, 4.2V and 5.0V. Other features include logic- controlled shutdown mode, short- circuit current limit and thermal shutdown protection. The SGM2040 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2040 is available in Green SOT- 23- 5 and UTDFN- 1x1- 4AL packages. It operates over an operating temperature range of - 40℃ to +85℃

Applications

Wearable Device
Smart Phone
Portable Equipment

Key features

Operating Input Voltage Range: 1.7V to 7.5V
Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V, 4.2V and 5.0V
250mA Output Current
High Output Voltage Accuracy: ± 1.2% at +25℃
Ultra- Low Current Consumption: 1 μA (TYP)
Low Dropout Voltage: 60mV (TYP) at 100mA
Low Reverse Leakage Current: 0.4 μA (TYP) when VOUT > VIN
Current Limiting and Thermal Protection
With Output Automatic Discharge
- 40℃ to +85℃ Operating Temperature Range
Available in Green SOT- 23- 5 and UTDFN- 1 x 1 4AL Packages
