SGMICRODatasheet (PDF)

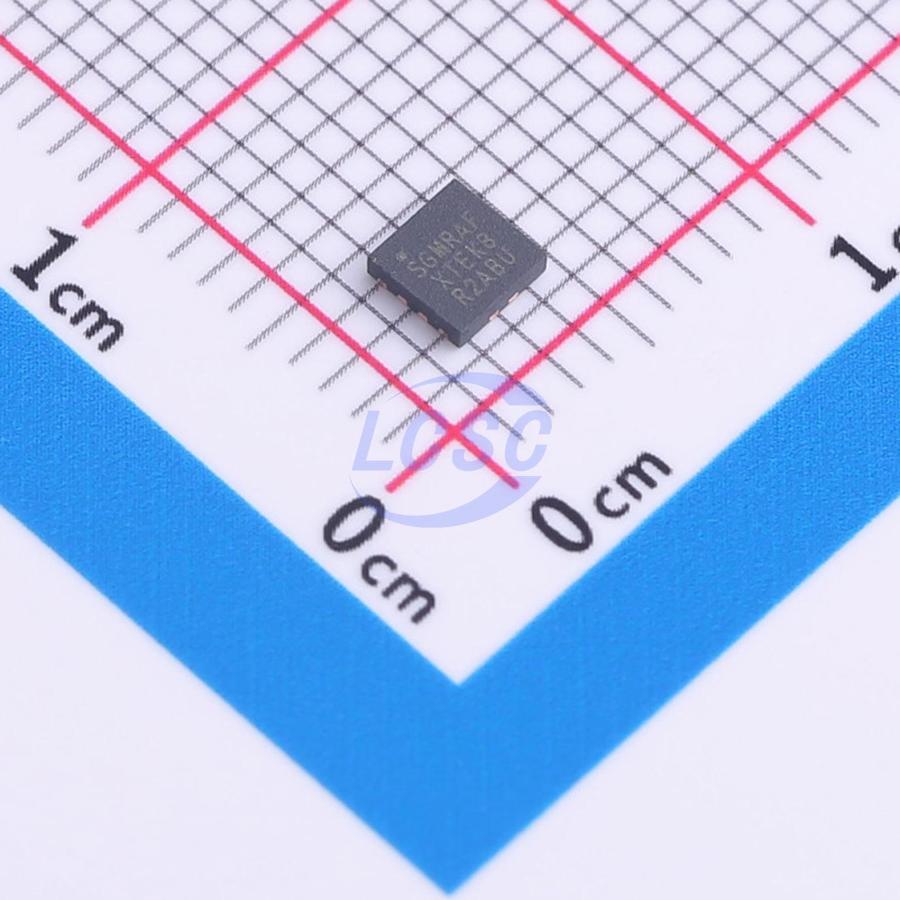

SGM2048-ADJXTEK8G/TR
800mV~6V Positive Adjustable TDFN-8CL(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TDFN-8CL(3x3)ROHS CompliantActive
1A, Low Noise, Wide Bandwidth, High PSRR, Low Dropout Linear Regulator
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2048-ADJXTEK8G/TR
- Store part #
- C3294704
- Package / case
- TDFN-8CL(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,136 in stock
#C3294704
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹231.13 | ₹231.13 |
| 10+ | ₹184.52 | ₹1,845.20 |
| 30+ | ₹158.93 | ₹4,767.90 |
| 100+ | ₹129.88 | ₹12,988.00 |
1 × ₹231.13
₹231.13
excl. GST
₹272.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SGM2048-ADJXTEK8G/TR
₹231.13 for 1 + GST
Specifications
- Output Voltage
- 800mV~6V
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Operating Voltage
- 7V
- Output Current
- 1A
- Output Type
- Adjustable
- Features
- Enable control;Input under-voltage protection;Reverse-polarity current protection;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.116 g
Overview
The SGM2048 is a low noise, high PSRR, low dropout voltage linear regulator. It is capable of supplying 1A output current with typical dropout voltage of only 150mV. The operating input voltage range is from 2.2V to 7V. The SGM2048 is available in fixed output voltage versions and an adjustable version that allows the output voltage range from 0.8V to 6V. Other features include logic- controlled shutdown mode, short- circuit current limit and thermal shutdown protection. The SGM2048 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2048 is available in a Green TDFN- 3×3 - 8CL package. It operates over an operating temperature range of - 40°C to +125°C
Applications
- Wireless Basestation
- PLL/VCO/RF Circuit
- Audio Equipment
Key features
- Operating Input Voltage Range: 2.2V to 7V
- Fixed Outputs of 1.2V, 1.8V, 2.8V, 3.0V, 3.3V, 5.0V
- Adjustable Output from 0.8V to 6V
- Output Voltage Accuracy: ± 1% at +25°C
- Low Dropout Voltage: 150mV (TYP) at 1A
- Low Noise: 30μVRMS (TYP)
- Power Supply Rejection Ratio at VOUT = 3.3V
- 75dB at 1kHz
- 65dB at 100kHz
- 55dB at 1MHz
- Current Limiting and Thermal Protection
- Excellent Load and Line Transient Responses
- With Output Automatic Discharge
- Stable with Small Case Size Ceramic Capacitors
- - 40°C to +125°C Operating Temperature Range
- Available in a Green TDFN- 3×3 - 8CL Package
