SGMICRODatasheet (PDF)

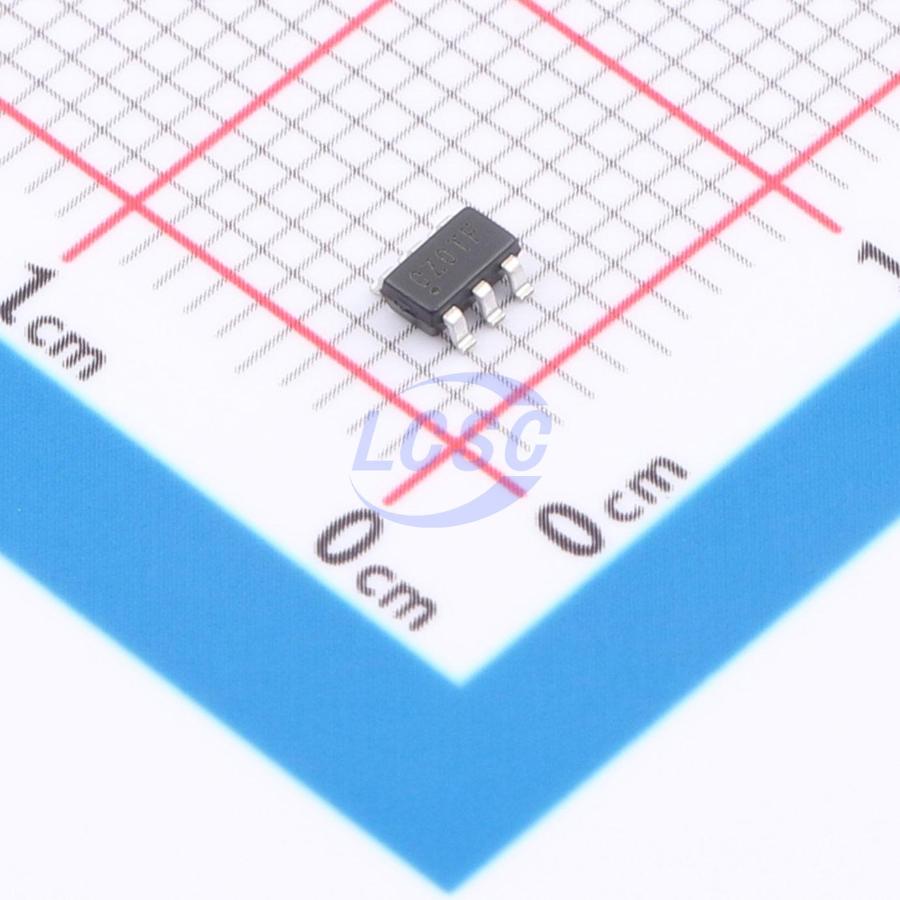

SGM2053-3.3XN6G/TR
3.3V Positive Fixed SOT-23-6 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-6RoHSActive
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2053-3.3XN6G/TR
- Store part #
- C5153039
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,370 in stock
#C5153039
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹64.40 | ₹322.00 |
| 50+ | ₹48.20 | ₹2,410.00 |
| 150+ | ₹41.07 | ₹6,160.50 |
| 500+ | ₹32.43 | ₹16,215.00 |
5 × ₹64.40
₹322.00
excl. GST
₹379.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM2053-3.3XN6G/TR
₹322.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown;Noise bypass terminal
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The SGM2053 is a low power, low noise, fast transient response and low dropout voltage linear regulator which is designed using CMOS technology. It provides 500mA output current capability. The operating input voltage range is from 1.5V to 5.5V. The adjustable output voltage range is from 0.8V to 5.0V. Other features include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2053 has automatic discharge function to quickly discharge V0UT in the disabled status. The SGM2053 is available in a Green SOT-23-6 package. It operates over an operating temperature range of -40°C to +125°C.
Applications
- Portable Equipment
- Smartphone
- Industrial and medical Equipment
Key features
- Input Supply Voltage Range: 1.5V to 5.5V
- Fixed Output Voltages: 1.0V, 1.05V, 1.1V, 1.8V, 2.8V, 3.0V and 3.3V
- Adjustable Output Voltage Range: 0.8V to 5.0V
- 500mA Guaranteed Output Current
- Ultra-Low Dropout Voltage: 95mV (TYP) at V0UT = 5.0V
- High PSRR: 93dB (TYP) at 1kHz
- Turn-On Time: 70µs (TYP)
- Low Output Noise: 20µνRMS (TYP)
- Fast Load Transient Response
- Thermal Shutdown Protection
- Output Current Limit
- Output Auto-Discharge in Shutdown
- -40°C to +125°C Operating Temperature Range
- Available in a Green SOT-23-6 Package
