SGMICRODatasheet (PDF)

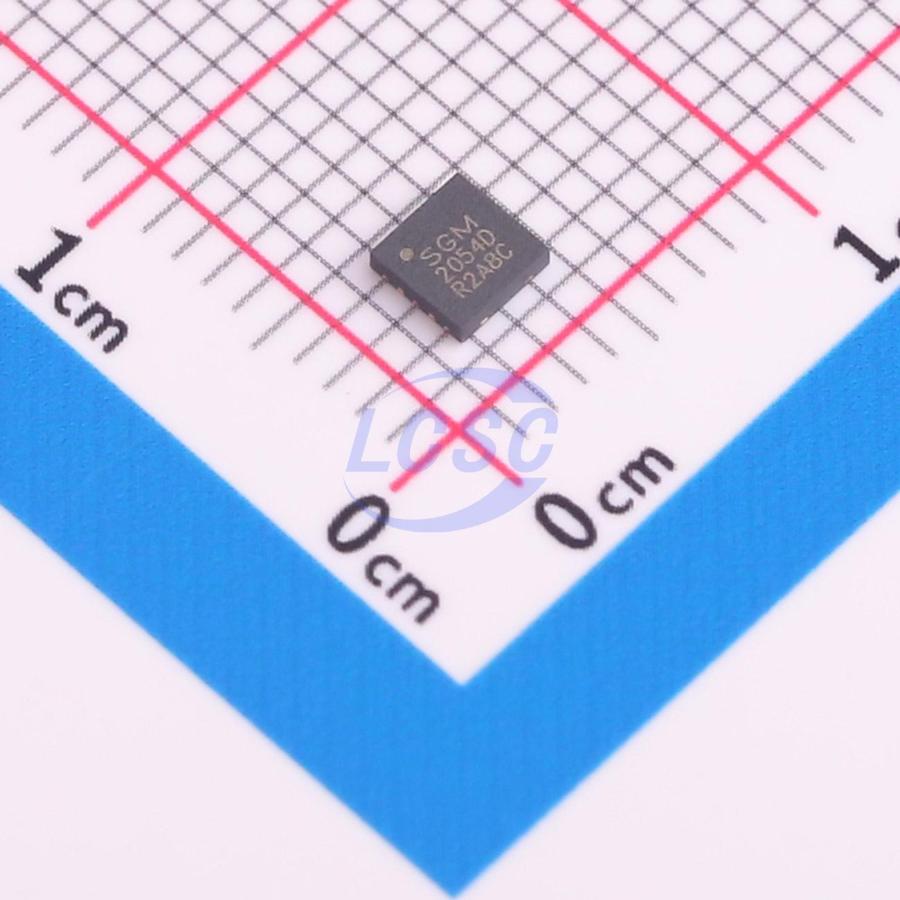

SGM2054XTD10G/TR
1.1V~3.5V Positive Fixed TDFN-10L(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TDFN-10L(3x3)RoHSActive
Sink and Source DDR Termination Regulator
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2054XTD10G/TR
- Store part #
- C5152839
- Package / case
- TDFN-10L(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,565 in stock
#C5152839
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.25 | ₹121.25 |
| 10+ | ₹93.01 | ₹930.10 |
| 30+ | ₹79.09 | ₹2,372.70 |
| 100+ | ₹65.18 | ₹6,518.00 |
1 × ₹121.25
₹121.25
excl. GST
₹143.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SGM2054XTD10G/TR
₹121.25 for 1 + GST
Specifications
- Output Voltage
- 1.1V~3.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 700uA
- Output Configuration
- Positive
- Operating Voltage
- 3.5V
- Output Current
- 3A
- Output Type
- Fixed
- Features
- Enable control;Built-in soft-start;Operating status indication;Over Current Protection;Input under-voltage protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.225 g
Overview
The SGM2054 device is a sink and source DDR (double data rate) termination regulator. It is specifically designed for low-cost and low-external component count systems. Other features include logic-controlled shutdown mode, output current limit and thermal shutdown protection. The SGM2054 has an EN signal that can be used to discharge VO when EN is less than 0.3V. With fast transient response, remote sensing, and soft-start capabilities to reduce inrush current, the SGM2054 ensures the optimal system performance for powering the DDR2, DDR3, Low-Power DDR3, DDR3L, DDR4 and DDR5 VTT bus termination. The SGM2054 is available in a Green TDFN- 3x3-10L package. It operates over an operating temperature range of -40℃ to +125℃.
Applications
- LCD TV
- STB
- Wireless Base Station
- Server, Notebook and Desktop PC
- Printer
Key features
- VLDOIN Voltage Range: 1.1V to 3.5V
- Low Input Voltages: 2.5V Rail and 3.3V Rail
- Minimum VO Effective Capacitance: 20μF
- Open-Drain Power-Good (PG) Output
- EN Logic Control
- Buffered Reference: ±10mA
- Soft-Start Inrush Control
- Remote Sensing
- Fast Load Transient Response
- Under-Voltage Lockout
- Output Current Limit
- Thermal Shutdown Protection
- -40°C to +125°C Operating Temperature Range
- Available in a Green TDFN- 3×3-10L Package
