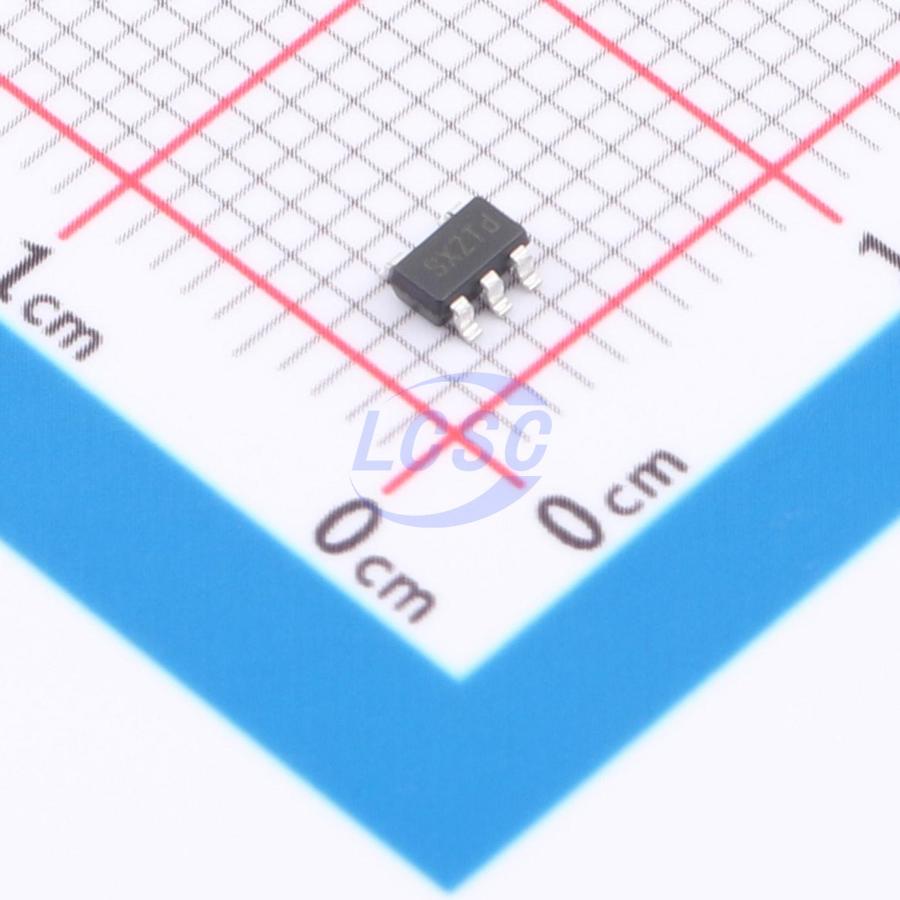

SGM2059-ADJXN5G/TR
793mV~5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA, Low Vin, Ultra-Low Noise and High PSRR Linear Regulator
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2059-ADJXN5G/TR
- Store part #
- C5152783
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,975 in stock
#C5152783
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.89 | ₹214.45 |
| 50+ | ₹32.03 | ₹1,601.50 |
| 150+ | ₹27.37 | ₹4,105.50 |
| 500+ | ₹21.56 | ₹10,780.00 |
5 × ₹42.89
₹214.45
excl. GST
₹253.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM2059-ADJXN5G/TR
₹214.45 for 5 + GST
Specifications
- Output Voltage
- 793mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 13uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge;Reverse-polarity current protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The SGM2059 is a low VIN, ultra-low noise, high PSRR and low dropout voltage linear regulator. It is capable of supplying 300mA output current with typical dropout voltage of only 72mV. The operating input voltage range is from 1.1V to 5.5V. The fixed output voltage range is from 1.2V to 4.2V and adjustable output voltage range is from 0.793V to 5.0V. Other features include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2059 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2059 is suitable for applications which need low noise and fast transient response power supply, such as power supply of camera module in smart phone, etc. The SGM2059 is available in Green SOT-23-5 and SC70-5 packages. It operates over an operating temperature range of -40°C to +125°C.
Applications
- Portable Electronic Devices
- Smoke Detectors
- IP Cameras
- Wireless LAN Devices
- Battery-Powered Equipment
- Smartphones and Tablets
- Digital Cameras and Audio Devices
Key features
- Operating Input Voltage Range: 1.1V to 5.5V
- Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 2.9V, 3.0V, 3.3V and 4.2V
- Adjustable Output from 0.793V to 5.0V
- 300mA Output Current
- Output Voltage Accuracy: ±1% at ±25°C
- Low Quiescent Current: 13μA (TYP)
- Low Dropout Voltage: 72mV (TYP) at 300mA when VOUT = 2.8V
- Ultra-Low Noise: 9.5μVRMS (TYP)
- High PSRR: 92dB (TYP) at 1kHz
- Current Limiting and Thermal Protection
- Excellent Load and Line Transient Responses
- With Output Automatic Discharge
- Stable with Small Case Size Ceramic Capacitors
- Shutdown Supply Current: 0.03μA (TYP)
- -40°C to +125°C Operating Temperature Range
- Available in Green SOT-23-5 and SC70-5 Packages
