SGMICRODatasheet (PDF)

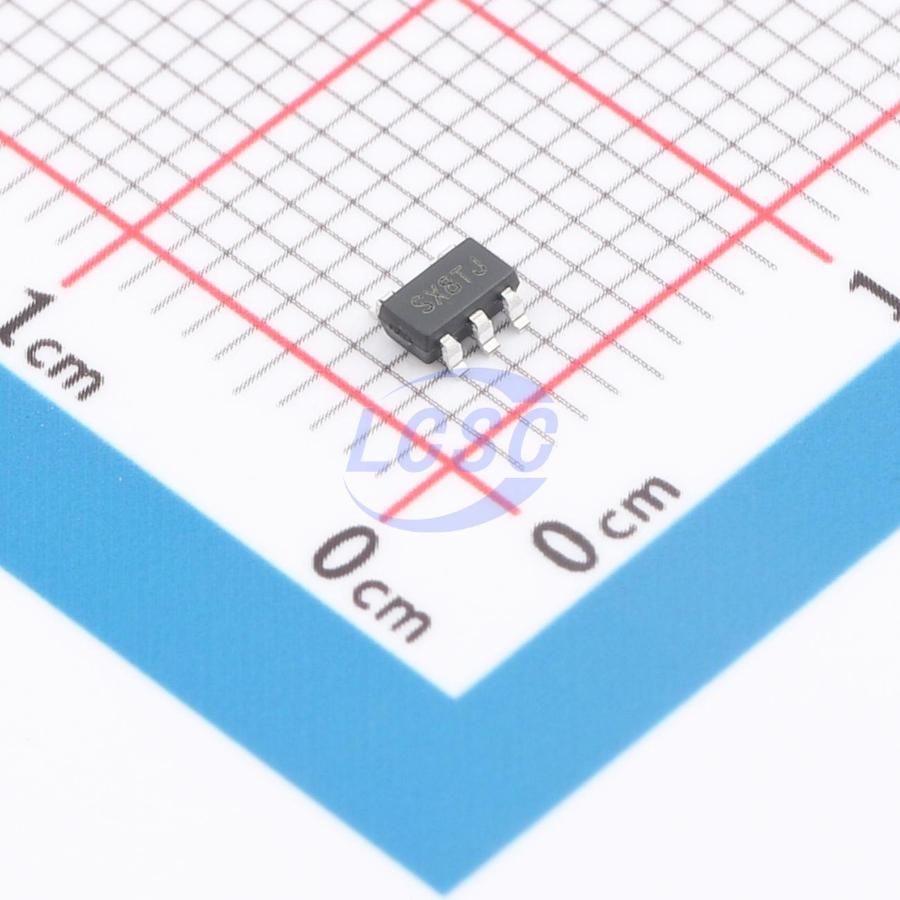

SGM2202-3.3YN5G/TR
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2202-3.3YN5G/TR
- Store part #
- C403707
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,425 in stock
#C403707
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.82 | ₹259.10 |
| 50+ | ₹38.61 | ₹1,930.50 |
| 150+ | ₹32.96 | ₹4,944.00 |
| 500+ | ₹26.02 | ₹13,010.00 |
5 × ₹51.82
₹259.10
excl. GST
₹305.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM2202-3.3YN5G/TR
₹259.10 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 4.2uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 150mA
- Features
- Enable control;Adjustable current limiting;Thermal shutdown;Noise bypass terminal
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.068 g
Overview
The SGM2202 is a high-voltage, high PSRR linear regulator capable of delivering 150mA output current. The input voltage can reach up to 36V. Fixed output versions are available with output voltages ranging from 2.5V to 5.0V; the adjustable output version allows the output voltage to be set from 0.8V to 13.2V via external resistors. Additional features include logic-controlled shutdown mode, current limiting, and thermal shutdown protection. The SGM2202 is offered in RoHS-compliant SOT-23-5 and SOT-23-6 packages, with an operating temperature range of -40°C to +85°C.
Applications
- Handheld computers
- High-power boost applications
- Battery-powered device power supplies
- Home electrical/electronic appliances
Key features
- High input voltage: up to 36V
- Fixed output voltages: 2.5V, 2.8V, 3.0V, 3.3V, 5.0V
- Adjustable output voltage: 0.8V to 13.2V
- Guaranteed output current: 150mA
- Output voltage accuracy: ±2.5% at +25°C
- High PSRR: 40dB typical at 1kHz
- Low dropout voltage
- Low quiescent current: 4.2μA typical
- Shutdown supply current: 1.5μA typical
- Low temperature coefficient
- Thermal shutdown protection
- Output current limiting
- Operating temperature range: -40°C to +85°C
- RoHS-compliant SOT-23-5 and SOT-23-6 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SGM2202-3.3YN5RG/TR#C5153038SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | On request | ₹41.91 · 0 in stock | View | |
| SGM2203-3.3YN5G/TR#C2929555SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | On request | ₹41.91 · 0 in stock | View | |
| SGM2203-3.3AYN5G/TR#C5141626SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | On request | ₹41.91 · 0 in stock | View | |
| SGM2203-3.3A-46B/CP#C5179693SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | On request | ₹41.91 · 0 in stock | View | |
