SGMICRODatasheet (PDF)

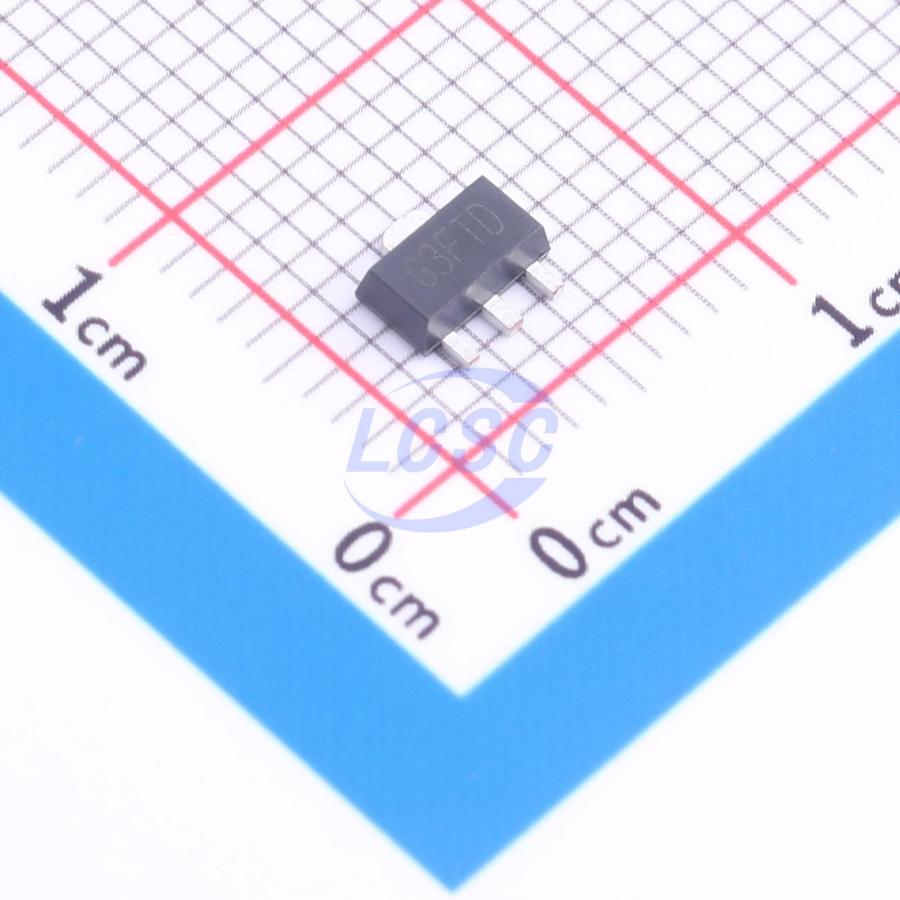

SGM2203-12YK3G/TR
12V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2203-12YK3G/TR
- Store part #
- C5142043
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,245 in stock
#C5142043
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.66 | ₹258.30 |
| 50+ | ₹38.47 | ₹1,923.50 |
| 150+ | ₹32.85 | ₹4,927.50 |
| 1,000+ | ₹25.94 | ₹25,940.00 |
5 × ₹51.66
₹258.30
excl. GST
₹304.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SGM2203-12YK3G/TR
₹258.30 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 4.2uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 150mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.32 g
Overview
The SGM2203 is a high voltage and low power consumption linear regulator. It is capable of supplying 150mA output current. The operating input voltage is up to 36V. The output voltage range is from 2.5V to 12V in fixed output version. Other features include current limit and thermal shutdown protection. The SGM2203 is available in Green SOT - 23, SOT - 23 - 5 and SOT - 89 - 3 packages. It operates over an operating temperature range of -40°C to +85°C.
Applications
- Palmtops
- High - Power Boost Applications
- Power Source for Battery - Powered Equipment
- Home Electric/Electronic Appliances
Key features
- High Input Voltage: Up to 36V
- Fixed Output Voltages: 2.5V, 2.8V, 3.0V, 3.3V, 3.5V, 3.6V, 4.0V, 4.2V, 5.0V, 5.75V, 8.0V, 9.0V and 12V
- 150mA Output Current
- Output Voltage Accuracy: ±3% at ±25°C
- Low Dropout Voltage
- Low Power Consumption: 4.2μA (TYP)
- Low Temperature Coefficient
- Current Limiting and Thermal Protection
- -40°C to ±85°C Operating Temperature Range
- Available in Green SOT - 23, SOT - 23 - 5 and SOT - 89 - 3 Packages
