SGMICRODatasheet (PDF)

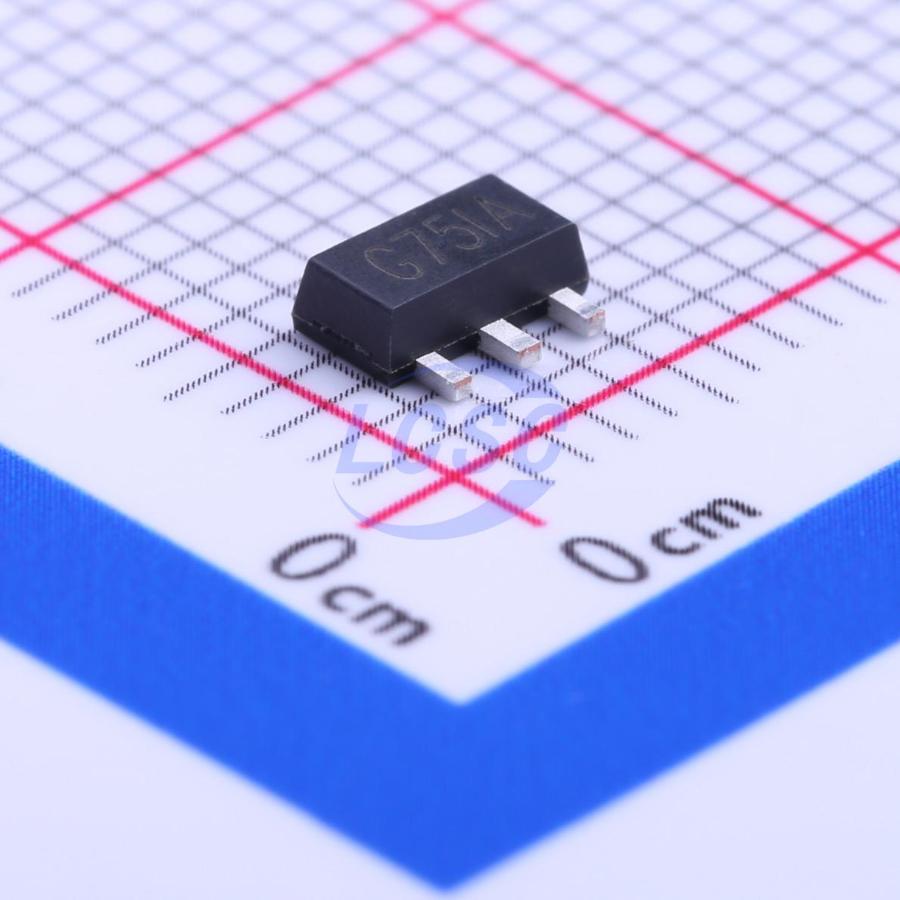

SGM2203-3.3YK3LG/TR
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
150mA, High Voltage Regulators
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2203-3.3YK3LG/TR
- Store part #
- C126463
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,040 in stock
#C126463
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.16 | ₹215.80 |
| 50+ | ₹32.15 | ₹1,607.50 |
| 150+ | ₹27.46 | ₹4,119.00 |
| 1,000+ | ₹21.68 | ₹21,680.00 |
5 × ₹43.16
₹215.80
excl. GST
₹254.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SGM2203-3.3YK3LG/TR
₹215.80 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 4.5uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 150mA
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
The SGM2203 series is a set of low power high voltage regulators implemented in CMOS technology which can provide 150mA output current. The device allows input voltage as high as 36V. The SGM2203 series is available in several fixed output voltages. CMOS technology ensures low dropout voltage and low quiescent current. Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable output voltages. The SGM2203 series is available in Green SOT - 23 and SOT - 89 - 3 packages. It operates over an ambient temperature range of -40°C to +85°C.
Applications
- Battery - Powered Equipment
- Communication Equipment
- Audio/Video Equipment
Key features
- Low Power Consumption
- 150mA Nominal Output Current
- Low Dropout Voltage
- Low Temperature Coefficient
- High Input Voltage (up to 36V)
- Output Voltage Accuracy: z%
- Fixed Output Voltage Versions: 0.8V to 4.7V with 0.1V per Step, 5V to 12V with 0.25V per Step
- -40°C to ±85°C Operating Temperature Range
- Available in Green SOT - 23 and SOT - 89 - 3 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SGM2203-3.3YK3G/TR#C80927SGMICRO · SOT-89-3 | SGMICRO | SOT-89-3 | 2,720 | ₹43.16 · 2,720 in stock | View |
| SGM2225-3.3XK3G/TR#C5152826SGMICRO · SOT-89-3 | SGMICRO | SOT-89-3 | 960 | ₹87.34 · 960 in stock | View | |
 | SGM2203-3.3AYK3LG/TR#C503229SGMICRO · SOT-89-3 | SGMICRO | SOT-89-3 | 320 | ₹42.96 · 320 in stock | View |
