SGMICRODatasheet (PDF)

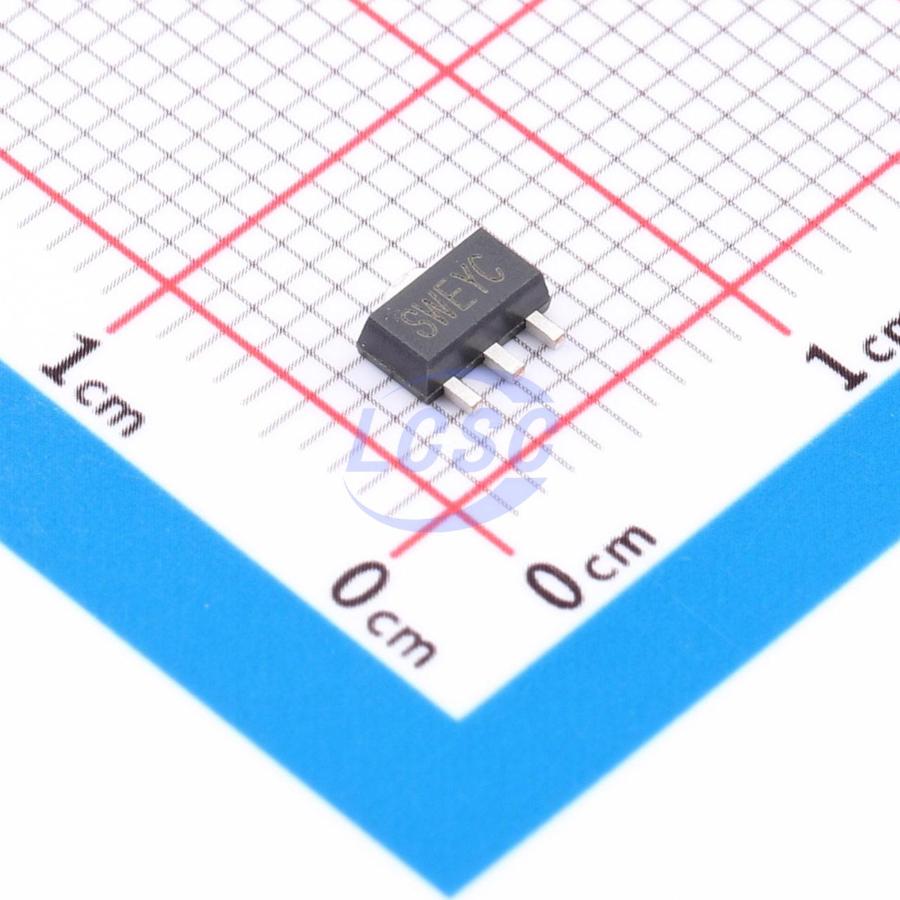

SGM2203-5.0YK3G/TR
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
150mA, High Voltage Regulator
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2203-5.0YK3G/TR
- Store part #
- C4555390
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,410 in stock
#C4555390
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.82 | ₹259.10 |
| 50+ | ₹38.61 | ₹1,930.50 |
| 150+ | ₹32.96 | ₹4,944.00 |
| 1,000+ | ₹26.02 | ₹26,020.00 |
5 × ₹51.82
₹259.10
excl. GST
₹305.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SGM2203-5.0YK3G/TR
₹259.10 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 4.2uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.365 g
Overview
The SGM2203 is a high voltage and high PSRR linear regulator. It is capable of supplying 150mA output current. The operating input voltage is up to 36V. The output voltage range is from 2.5V to 12V in fixed output version. Other features include current limit and thermal shutdown protection. The SGM2203 is available in Green SOT - 23, SOT - 23 - 5 and SOT - 89 - 3 packages. It operates over an operating temperature range of -40°C to +85°C.
Applications
- Palmtops
- High - Power Boost Applications
- Power Source for Battery - Powered Equipment
- Home Electric/Electronic Appliances
Key features
- High Input Voltage: Up to 36V
- Fixed Output Voltages: 2.5V, 2.8V, 3.0V, 3.3V, 3.5V, 3.6V, 4.0V, 4.2V, 5.0V, 5.75V, 8.0V, 9.0V and 12V
- 150mA Guaranteed Output Current
- Output Voltage Accuracy: ±3% at ±25°C
- High PSRR: 40dB (TYP) at 1kHz
- Low Dropout Voltage
- Low Power Consumption: 4.2μA (TYP)
- Low Temperature Coefficient
- Thermal Shutdown Protection
- Output Current Limit
- -40°C to ±85°C Operating Temperature Range
- Available in Green SOT - 23, SOT - 23 - 5 and SOT - 89 - 3 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SGM2225-5.0XK3G/TR#C5152827SGMICRO · SOT-89-3 | SGMICRO | SOT-89-3 | 794 | ₹105.05 · 794 in stock | View | |
 | SGM2203-5.0YK3LG/TR#C2929597SGMICRO · SOT-89-3 | SGMICRO | SOT-89-3 | On request | Price on request | Quote |
| SGM2203-5.0AYK3LG/TR#C5141635SGMICRO · SOT-89-3 | SGMICRO | SOT-89-3 | On request | Price on request | Quote | |
