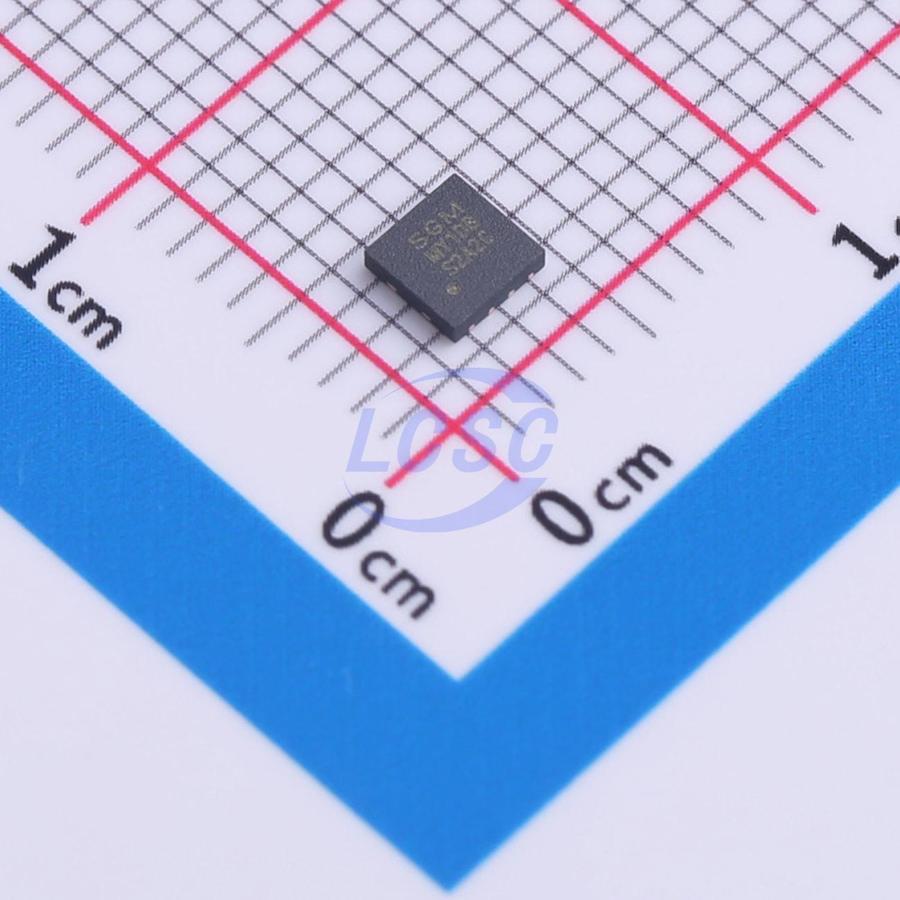

SGM2209-ADJXTDB8G/TR

Negative Adjustable TDFN-3x3-8L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

TDFN-3x3-8LRoHSActive

-24V, -500mA, Low Noise, High PSRR, Negative Output Linear Regulator

Manufacturer: SGMICRO
Manufacturer part #: SGM2209-ADJXTDB8G/TR
Store part #: C5152851
Package / case: TDFN-3x3-8L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,518 in stock

#C5152851

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹291.19	₹291.19
10+	₹239.16	₹2,391.60
30+	₹206.63	₹6,198.90
100+	₹173.02	₹17,302.00

Quantity (min 1)

1 × ₹291.19

₹291.19

excl. GST

₹343.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SGM2209-ADJXTDB8G/TR

₹291.19 for 1 + GST

Specifications

Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 1.2mA
Output Configuration: Negative
Output Current: 500mA
Operating Voltage: 24V
Output Type: Adjustable
Features: Enable control;Built-in soft-start;Operating status indication;Input under-voltage protection;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.45 g

Overview

The SGM2209 is a low power, low noise, fast transient response and low dropout voltage linear regulator. It provides -500mA output current capability. The operating input voltage range is from -2.7V to -24V. The adjustable output voltage range is from -1.2V to (-VIN + VDROP). Other features include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2209 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2209 is available in Green TDFN-2×2-6AL, TDFN-3×3-8L and SOT-23-5 packages. It operates over an operating temperature range of -40°C to +125°C.

Applications

Industrial and Medical Equipment
Communications and Infrastructure
Precision Amplifiers
ADC and DAC Circuits

Key features

Input Voltage Range: -2.7V to -24V
Output Voltage Accuracy: ±1% at ±25°C
Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V and 5.0V
Adjustable Output from -1.2V to (-VIN + VDROP)
-500mA Output Current
Low Quiescent Current: IGND = -1.2mA (TYP) with -500mA Load
Low Dropout Voltage: -345mV (TYP) at -500mA, at VOUT = -3.0V
Low Noise: 10.5μVRMS (TYP) at VOUT = -1.2V; 12μVRMS (TYP) at VOUT = -2.5V; 16μVRMS (TYP) at VOUT = -5.0V
PSRR: -60dB at 10kHz at VOUT = -2.5V
Positive or Negative Enable Logic
Stable with Small 2.2μF Ceramic Output Capacitor
Low Shutdown Current: -1.1μA (TYP)
Current Limiting and Thermal Protection
-40°C to +125°C Operating Temperature Range
Available in Green TDFN-2×2-6AL, TDFN-3×3-8L and SOT-23-5 Packages
