SGMICRODatasheet (PDF)

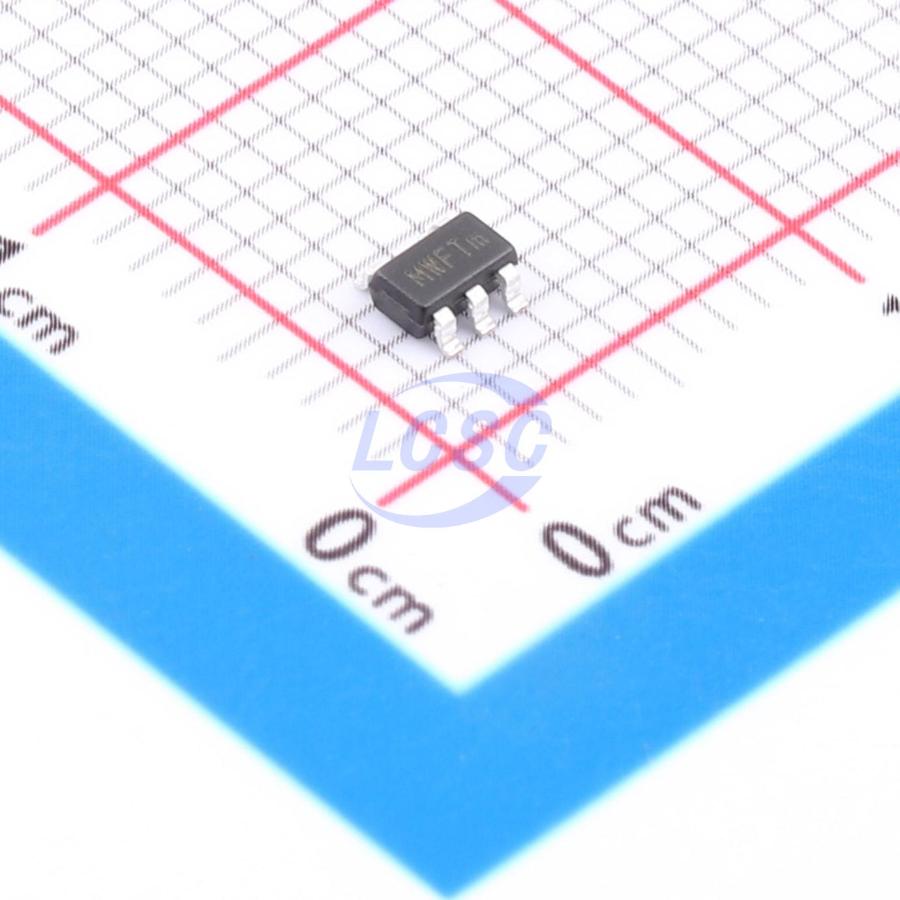

SGM2210-ADJXN5G/TR
1.2V~12V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA, Low Quiescent Current and Low Noise Linear Regulator
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2210-ADJXN5G/TR
- Store part #
- C5120959
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,230 in stock
#C5120959
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.84 | ₹80.84 |
| 10+ | ₹62.15 | ₹621.50 |
| 30+ | ₹52.81 | ₹1,584.30 |
| 100+ | ₹43.46 | ₹4,346.00 |
1 × ₹80.84
₹80.84
excl. GST
₹95.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM2210-ADJXN5G/TR
₹80.84 for 1 + GST
Specifications
- Output Voltage
- 1.2V~12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 36uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 20V
- Output Type
- Adjustable
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown;Reverse-polarity current protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The SGM2210 is a low quiescent current, low noise and low dropout voltage linear regulator. It is capable of supplying 300 mA output current with typical dropout voltage of 240 mV. The operating input voltage range is from 2.5V to 20V. The fixed output voltage range is from 1.2V to 5.0V and adjustable output voltage range is from 1.2V to 12V. Other features include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2210 has automatic discharge function to quickly discharge V₀ₒₜ in the disabled status. The SGM2210 is available in a Green SOT-23-5 package. It operates over an operating temperature range of -40℃ to +125℃.
Applications
- Palmtop Computers
- Portable Electronics
- Industrial and Medical Equipment
- Battery-Powered Equipment
Key features
- Operating Input Voltage Range: 2.5V to 20V
- Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
- Adjustable Output from 1.2V to 12V
- 300 mA Output Current
- Output Voltage Accuracy: ±1% at ±25°C
- Quiescent Current: 36 μA (TYP)
- Low Dropout: 80 mV (TYP) at 100 mA, Vₒᵤₜ = 3.3V
- Low Noise: 48 μVᵣₘₛ (TYP) at Vₒᵤₜ = 3.3V
- High PSRR: 100dB (TYP) at 1kHz
- Current Limiting and Thermal Protection
- With Output Automatic Discharge
- Stable with Small Case Size Ceramic Capacitors
- Shutdown Supply Current: 0.5 μA (TYP)
- -40°C to +125°C Operating Temperature Range
- Available in a Green SOT-23-5 Package
