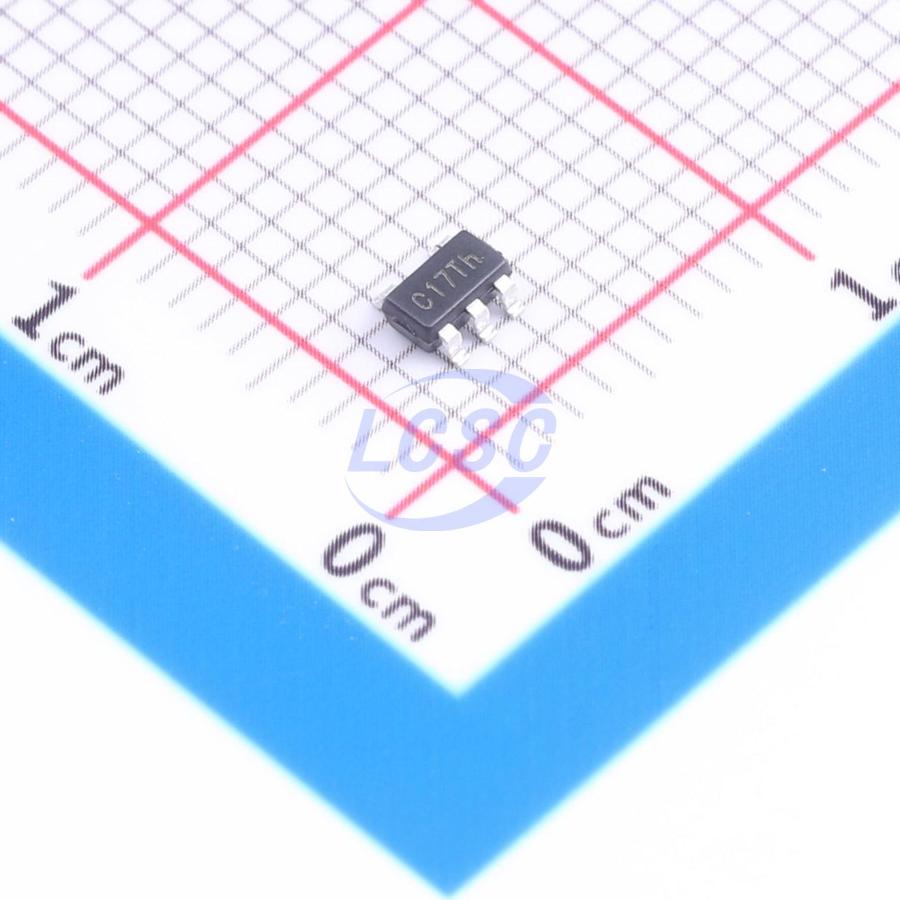

SGMICRO

SGM2211-3.3XN5G/TR

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

IC REG LINEAR 3.3V 500mA SOT-23-5

Manufacturer: SGMICRO
Manufacturer part #: SGM2211-3.3XN5G/TR
Store part #: C3294707
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,655 in stock

#C3294707

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹291.70	₹291.70
10+	₹239.57	₹2,395.70
30+	₹207.00	₹6,210.00
100+	₹173.33	₹17,333.00

Quantity (min 1)

1 × ₹291.70

₹291.70

excl. GST

₹344.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM2211-3.3XN5G/TR

₹291.70 for 1 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 43uA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 20V
Output Type: Fixed
Features: Enable control;Adjustable soft-start;Built-in soft-start;Output discharge;Reverse-polarity current protection;Short Circuit Protection;Over Current Protection;Thermal shutdown;Input under-voltage protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

The SGM2211 is a low noise, high PSRR, fast transient response and low dropout voltage linear regulator. It provides 500mA output current capability. The operating input voltage range is from 2.7V to 20V. The adjustable output voltage range is from 1.2V to (VIN - VDROP). Other features include logic- controlled shutdown mode, short- circuit current limit and thermal shutdown protection. The SGM2211 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2211 is available in Green TDFN- 2×2- 6AL and SOT- 23- 5 packages. It operates over an operating temperature range of - 40°C to +125°C.

Applications

Instrumentation
Precision ADC and DAC
Precision Amplifiers in Industrial Equipment
Low Noise VCO
RF System
Medical Equipment

Key features

Operating Input Voltage Range: 2.7V to 20V
Fixed Output from 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.8V, 4.2V and 5.0V
Adjustable Output from 1.2V to (VIN - VDROP) (For TDFN Package, Output Voltage can be Adjusted above Initial Fixed Output Voltage)
500mA Output Current
Output Voltage Accuracy: ± 1% at +25°C
Low Quiescent Current: 43 μA (TYP)
Low Dropout Voltage: 360mV (TYP) at 500mA, VOUT = 5.0V
Low Noise:
9.3 μVRMS at VOUT = 1.2V
11 μVRMS at VOUT = 2.8V
14 μVRMS at VOUT = 5.0V
High PSRR (VIN = VOUT(NOM) + 1V):
100dB (TYP) at 1kHz
83dB (TYP) at 10kHz
52dB (TYP) at 100kHz
55dB (TYP) at 1MHz
Current Limiting and Thermal Protection
Excellent Load and Line Transient Responses
With Output Automatic Discharge
Stable with Small Case Size Ceramic Capacitors
Programmable Soft-Start (TDFN Package Only)
Shutdown Supply Current: 1.2 μA (TYP)
Reverse Current Protection when VOUT > VIN
Foldback Current- Limit Protection when VOUT is Shorted to GND
Programmable Precision Enable
-40°C to +125°C Operating Temperature Range
Available in Green TDFN-2×2-6AL and SOT-23-5 Packages
