SGMICRODatasheet (PDF)

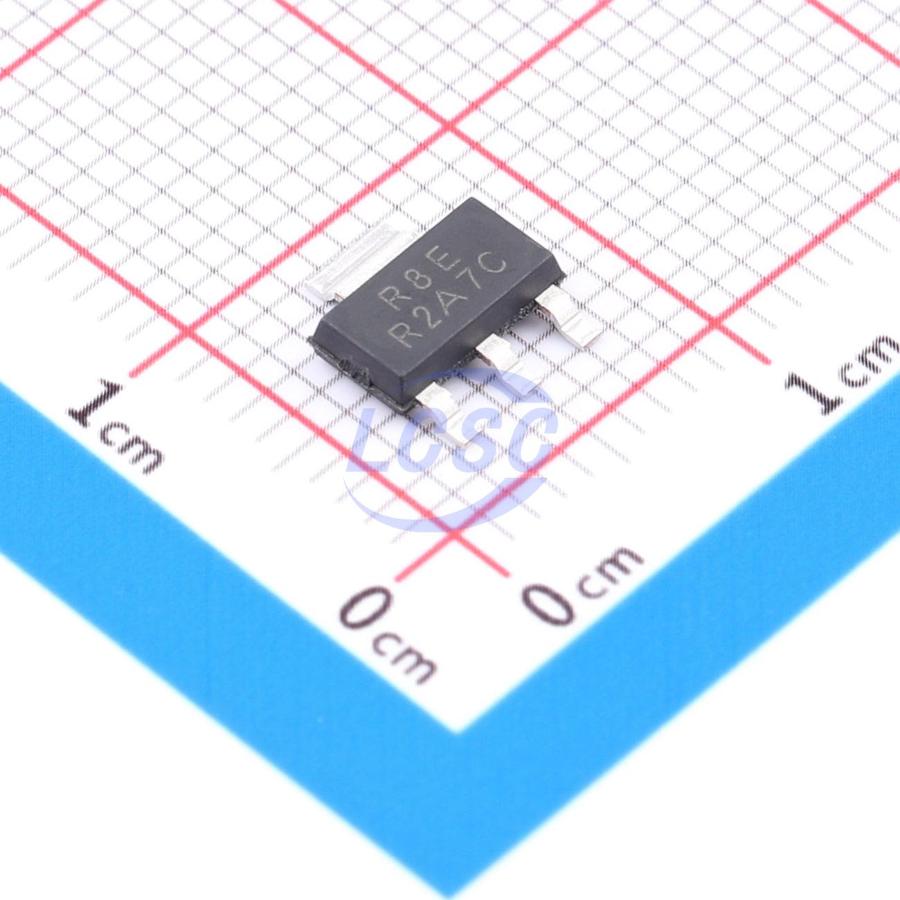

SGM2225-3.3XKC3G/TR
3.3V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223-3RoHSActive
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2225-3.3XKC3G/TR
- Store part #
- C5152700
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C5152700
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹112.43 | ₹562.15 |
| 50+ | ₹83.94 | ₹4,197.00 |
| 150+ | ₹71.76 | ₹10,764.00 |
| 500+ | ₹56.55 | ₹28,275.00 |
5 × ₹112.43
₹562.15
excl. GST
₹663.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SGM2225-3.3XKC3G/TR
₹562.15 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 112uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 800mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge;Noise bypass terminal
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.238 g
Overview
The SGM2225 is a high-voltage, low-noise, low-dropout linear regulator. It delivers 800mA output current with a typical dropout voltage of only 450mV. The input voltage operating range is 3.6V to 36V. Additional features include logic-controlled shutdown mode, short-circuit current limiting, and thermal shutdown protection. The SGM2225 incorporates an automatic discharge function to quickly discharge the output voltage when disabled. The SGM2225 is available in Green SOT-223-3, SOT-89-3, SOIC-8, TDFN-3×3-8L, and TO-263-5B packages. The operating temperature range is -40°C to +125°C.
Applications
- Cellular phones
- PDAs
- High-efficiency linear power supplies
- Portable devices
- Battery-powered systems
Key features
- Wide input voltage range: 3.6V to 36V
- Fixed output voltages: 1.8V, 2.5V, 3.3V, 5.0V, and 12V
- Adjustable output voltage range: 1.8V to 24V
- Output voltage accuracy: ±1.5% at +25°C
- Low dropout voltage: 450mV typical at 800mA
- Current limiting and thermal protection
- Excellent load and line transient response
- Output auto-discharge function
- No-load stability
- Operating temperature range: -40°C to +125°C
- Available in green SOT-223-3, SOT-89-3, SOIC-8, TDFN-3×3-8L, and TO-263-5B packages
