SGMICRO

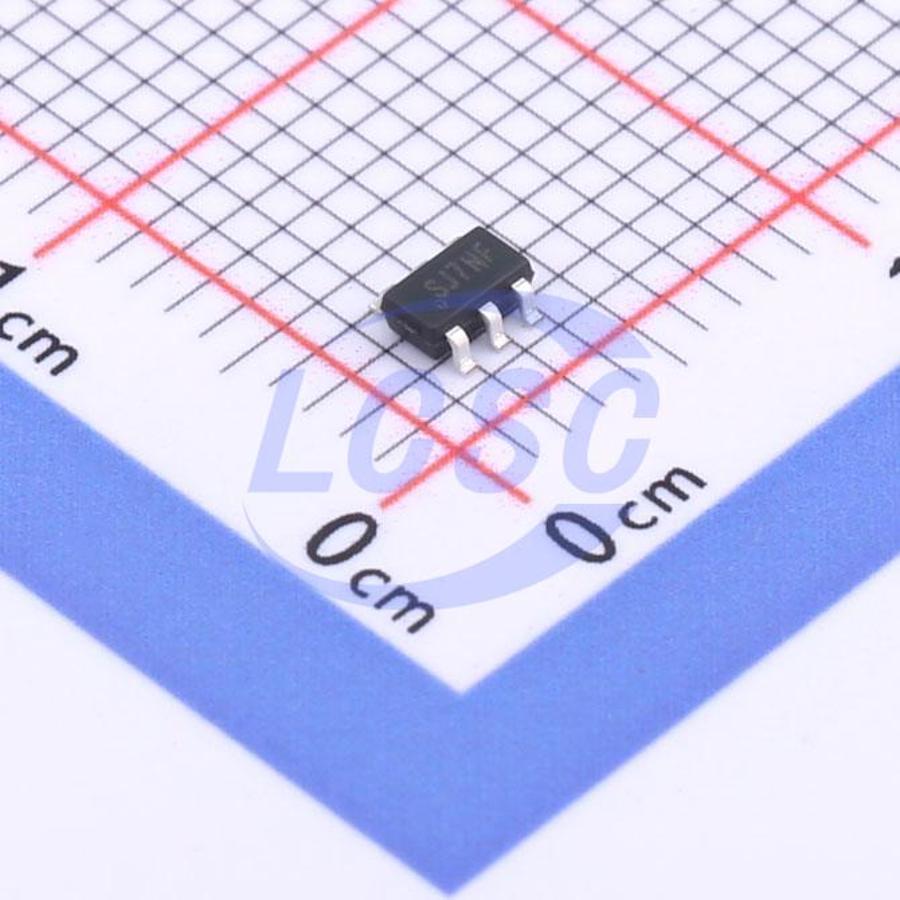

SGM2553YN6G/TR

1 1.5A Active High High Side Switch SOT-23-6 Power Distribution Switches, Load Drivers

SOT-23-6RoHSActive

Precision Adjustable Current Limited Power Distribution Switches

Manufacturer: SGMICRO
Manufacturer part #: SGM2553YN6G/TR
Store part #: C699882
Package / case: SOT-23-6
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,064 in stock

#C699882

Stock & price checked 41 h ago

Quantity	Unit price	Pack price
1+	₹77.37	₹77.37
10+	₹57.71	₹577.10
30+	₹49.28	₹1,478.40
100+	₹38.91	₹3,891.00

Quantity (min 1)

1 × ₹77.37

₹77.37

excl. GST

₹91.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM2553YN6G/TR

₹77.37 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start;Integrated charge pump;Reverse voltage protection
number of channels: 1
Maximum Continuous Current: 1.5A
Control Input Logic: Active High
RDS(on): 90mΩ
Operating Voltage: 2.5V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview
