SGMICRODatasheet (PDF)

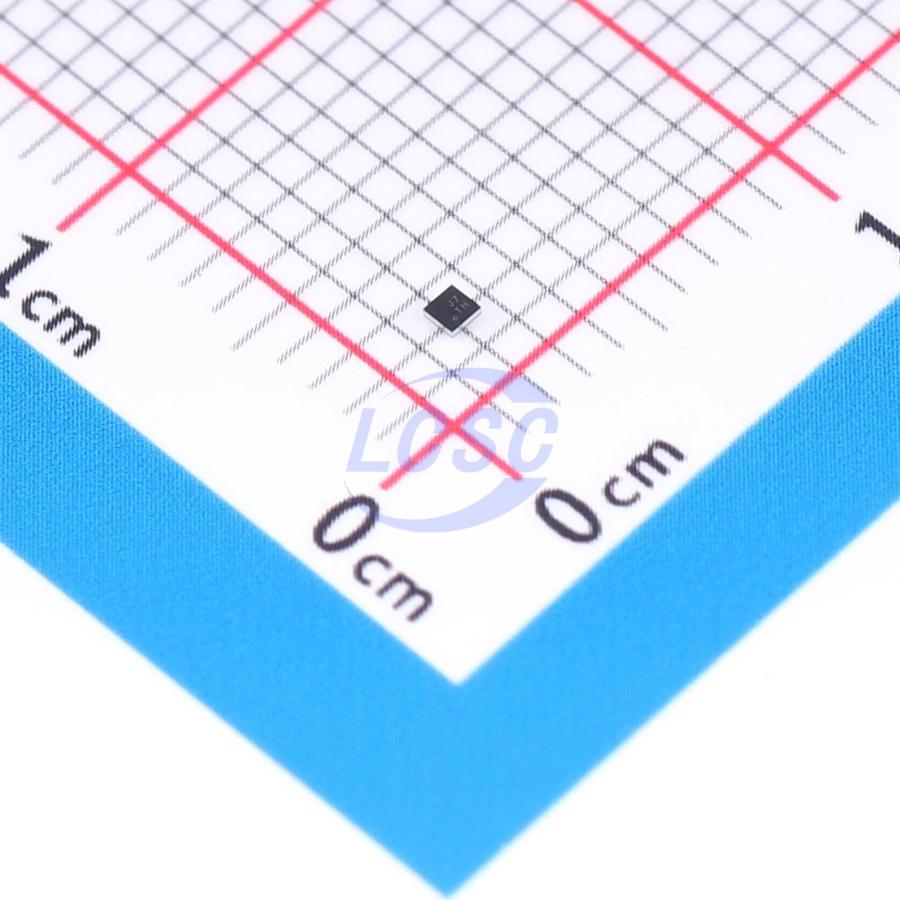

SGM2578AADYG/TR
1 2A Active High Load Switch WLCSP-4B-A(0.9x0.9) Power Distribution Switches, Load Drivers
WLCSP-4B-A(0.9x0.9)RoHSActive
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2578AADYG/TR
- Store part #
- C5151451
- Package / case
- WLCSP-4B-A(0.9x0.9)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,645 in stock
#C5151451
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.91 | ₹259.55 |
| 50+ | ₹38.67 | ₹1,933.50 |
| 150+ | ₹33.02 | ₹4,953.00 |
| 500+ | ₹26.08 | ₹13,040.00 |
5 × ₹51.91
₹259.55
excl. GST
₹306.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM2578AADYG/TR
₹259.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Reverse current blocking;Output discharge function;Soft-start
- number of channels
- 1
- Maximum Continuous Current
- 2A
- Control Input Logic
- Active High
- Operating Voltage
- 1V~5.5V
- RDS(on)
- 30mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
SGM2578A is a single load switch with reverse current protection. The device operates from a 1V to 5.5V single supply and can drive up to 2A of continuous current. The device integrates a 30mΩ low on-resistance N-channel MOSFET controlled by the ON pin. Upon initial power-up, a smart pull-down resistor holds the ON pin floating until the system stabilizes. Once the ON pin reaches a high voltage (above the input high-level voltage), the pull-down resistor disconnects, resulting in very low standby current to reduce power consumption. The small package and low on-resistance make this device ideal for space-constrained, battery-powered applications. The device supports a wide input voltage range, suitable for various voltage rails. Rise time is controlled to prevent inrush current. The SGM2578A provides fast output discharge in the disabled state. The SGM2578A is available in an RoHS-compliant WLCSP-0.9×0.9-4B-A package.
Applications
- Smartphones
- Ultrabooks
- Tablet PCs
- Digital cameras
- Wearable technology
Key features
- Input voltage range: 1V to 5.5V
- Low on-resistance: 29mΩ at 4.35V input; 30mΩ at 3.3V input; 36mΩ at 1.0V input
- Low shutdown current: 90nA typical
- Maximum continuous current: 2A
- Reverse current protection when disabled
- Low-threshold 1.8V GPIO control input
- Bidirectional power supply for power rail applications
- Rise time: 200μs typical for SGM2578AAD; 5000μs typical for SGM2578ABD
- Fast output discharge
- Available in RoHS-compliant WLCSP-0.9×0.9-4B-A package
