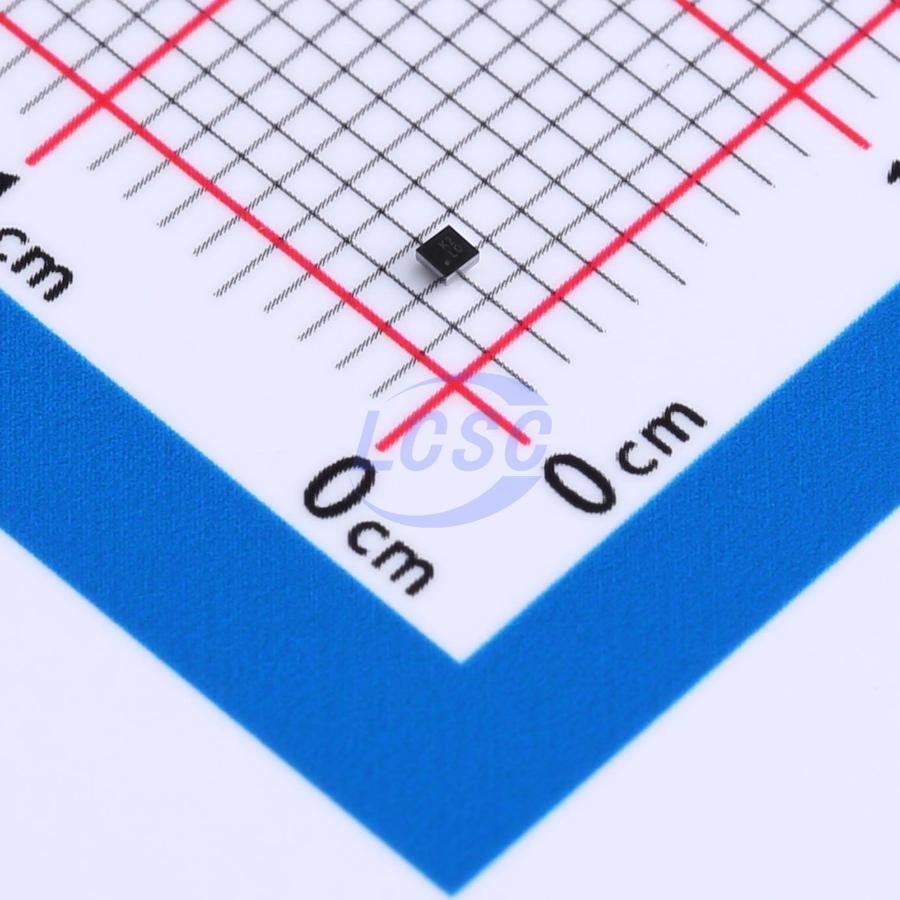

SGM2578YG/TR
1 1A Active High Load Switch WLCSP-4B Power Distribution Switches, Load Drivers
WLCSP-4BRoHSActive
Ultra Small, Low Input Voltage, Low Ron Load Switch
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2578YG/TR
- Store part #
- C403706
- Package / case
- WLCSP-4B
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C403706
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.89 | ₹224.45 |
| 50+ | ₹33.62 | ₹1,681.00 |
| 150+ | ₹28.63 | ₹4,294.50 |
| 500+ | ₹22.56 | ₹11,280.00 |
5 × ₹44.89
₹224.45
excl. GST
₹264.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM2578YG/TR
₹224.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Reverse voltage protection;Over temperature protection;Soft-start;Output discharge function
- number of channels
- 1
- Maximum Continuous Current
- 1A
- Control Input Logic
- Active High
- Operating Voltage
- 1V~5V
- RDS(on)
- 54mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The SGM2578 is an ultra small, low RON load switch with controlled turn on. The device contains an N-channel MOSFET that operates over an input voltage range of 1V to 5V. The switch is controlled by EN pin, which is capable of interfacing directly with low voltage control signals. SGM2578 device limits the output current to a safe level by using a constant current mode when the output load exceeds the current-limit threshold. An internal reverse voltage comparator disables the power switch when the output voltage is driven higher than the input to protect devices on the input side of the switch. The SGM2578 is available in a Green WLCSP-0.9×0.9 -4B package and operates over a temperature range of -40°C to +85°C.
Applications
- Battery Powered Equipment
- Portable Industrial Equipment
- Portable Medical Equipment
- Portable Media Players
- Point of Sales Terminal
- GPS Devices
Key features
- Low Input Voltage: 1V to 5V
- Ultra Low On-State Resistance (RON):
- RON = 54mΩ at VIN = 5.0V
- RON = 54mΩ at VIN = 3.6V
- RON = 58mΩ at VIN = 2.5V
- RON = 74mΩ at VIN = 1.8V
- RON = 84mΩ at VIN = 1.2V
- RON = 84mΩ at VIN = 1.0V
- 1A Maximum Continuous Switch Current
- Quiescent Current: 5μA (TYP)
- Shutdown Current: <1.5μA
- Low Control Input Thresholds Enable Use of Low-Voltage Logic
- Controlled Slew Rate to Avoid Inrush Currents
- Quick Output Discharge (QOD)
- Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC, Test Program 1 with CB Report
- Available in a Green WLCSP-0.9×0.9 -4B Package
