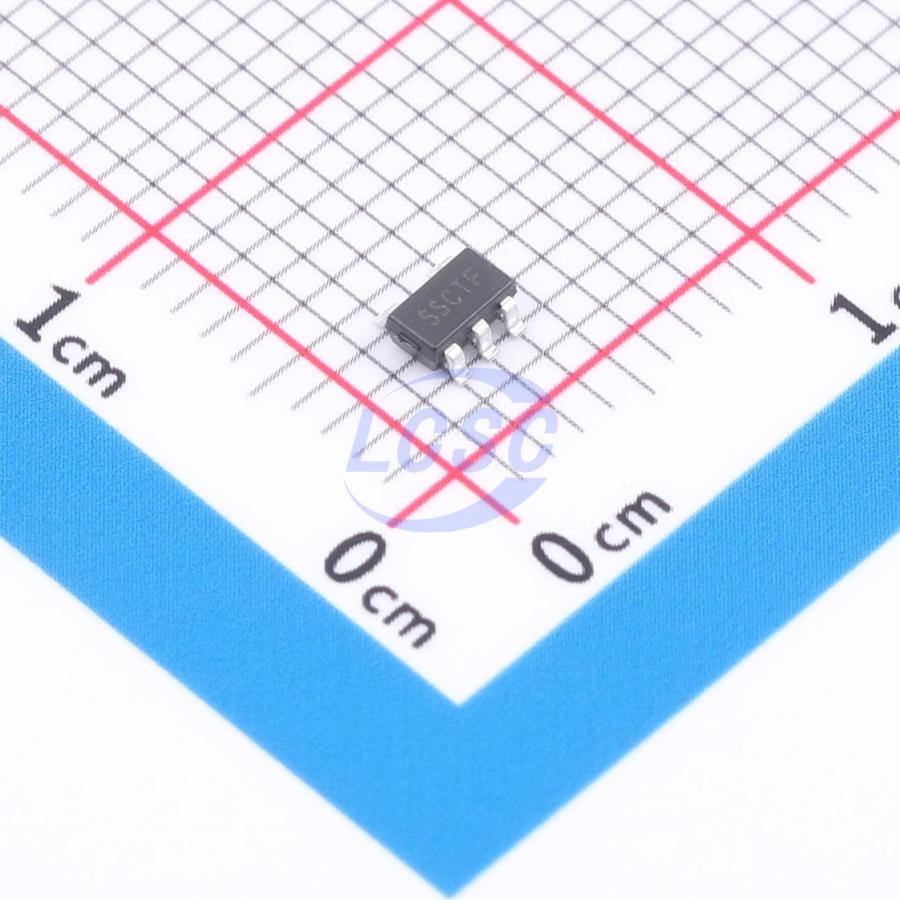

SGM2588AYN5G/TR

1.2A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers

SOT-23-5RoHSActive

Manufacturer: SGMICRO
Manufacturer part #: SGM2588AYN5G/TR
Store part #: C699907
Package / case: SOT-23-5
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,131 in stock

#C699907

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
1+	₹73.06	₹73.06
10+	₹54.47	₹544.70
30+	₹46.69	₹1,400.70
100+	₹36.74	₹3,674.00

Quantity (min 1)

1 × ₹73.06

₹73.06

excl. GST

₹86.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM2588AYN5G/TR

₹73.06 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Over temperature protection;Soft-start;Under-voltage lockout;Reverse current blocking;Output discharge function;Reverse voltage protection
Maximum Continuous Current: 1.2A
Control Input Logic: Active High
Operating Voltage: 2.5V~5.5V
RDS(on): 100mΩ
Type: High Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

The SGM2588 is an integrated 100mΩ (typical) power switch designed for self-powered and bus-powered USB applications. The SGM2588 features internal current limiting and thermal shutdown protection to prevent damage to the device and load due to overcurrent. If the die temperature exceeds +150°C, the thermal shutdown function turns off the output MOSFET and pulls the nFAULT output low; the output MOSFET will not turn back on until the die temperature drops to +130°C. The device incorporates a soft-start circuit to minimize inrush current in applications with highly capacitive loads. Under overcurrent and overtemperature conditions, the open-drain nFAULT flag is pulled low after a 13ms blanking time to prevent false triggering. The SGM2588 is available in a green SOT-23-5 package and operates over a temperature range of -40°C to +85°C.

Applications

General-purpose power switching
USB bus/self-powered hub/peripherals
ACPI power distribution
Smartphones and LCD TVs

Key features

100mΩ (typical) high-side N-channel MOSFET
Three current limit levels: SGM2588A/B/G: 1100 ± 100mA; SGM2588C/D/I: 2100 ± 210mA; SGM2588E/F/K: 2600 ± 300mA
Input voltage range: 2.5V to 5.5V
Quiescent current: 23μA (typical)
Shutdown current: 0.1μA (typical)
Soft-start function
Thermal shutdown protection
VIN undervoltage lockout protection
No reverse leakage current (reverse blocking)
Fault flag (nFAULT) with 13ms filter to eliminate false triggering
Automatic output discharge in shutdown mode (SGM2588A/B/C/D/E/F)
500kΩ pull-down resistor on EN pin (SGM2588G/I/K)
Evaluated per IEC 60950-1, Ed 2, Am1, Annex CC, Test Procedure 1 with CB report (SGM2588A/C/E/G/I/K)
Green SOT-23-5 package
