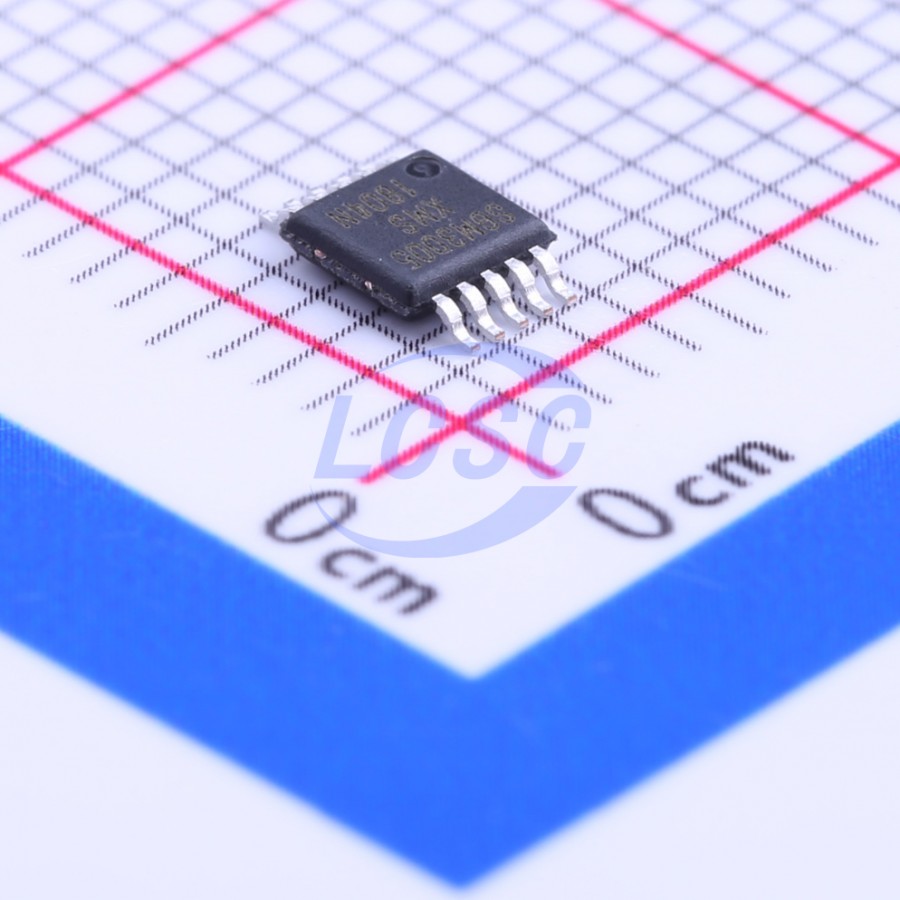

SGM3005XMS/TR

The SGM3005 is a dual, low ON-resistance, low voltage, bidirectional, single-pole/double-throw (SPDT) CMOS analog switches designed to operate from a single +1.8V to +5.5V supply. Targeted applications include battery powered equipment that benefit from low RON (0.5Ω) and fast switching speeds (tON = 16 ns, tOFF = 15 ns). The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals. The SGM3005 is a committed dual single-pole/double -throw (SPDT) that consist of two normally open (NO) and two normally close (NC) switches. This configuration can be used as a dual 2-to-1 multiplexer. SGM3005 is available in a MSOP-10 and DFN-10 packages.

Applications

• Battery powered, Handheld, and Portable Equipments
• Cellular/mobile Phones
• Laptops, Notebooks, Palmtops
• Communication Systems
• Sample-and-Hold Circuits
• Audio Signal Routing
• Audio and Video Switching
• Portable Test and Measurement
• Medical Equipment

Key features

• Low Voltage Operation: 1.8 V to 5.5 V
• Low On-Resistance: 0.5Ω (TYP)
• Low On-Resistance Flatness
• –3 dB Bandwidth: 30 MHz
• Fast Switching Time tON 16 ns tOFF 15 ns
• Rail-to-Rail Operation
• Typical Power Consumption (< 0.01 μW)
• TTL/CMOS Compatible
• Microsize Package
