SGMICRO

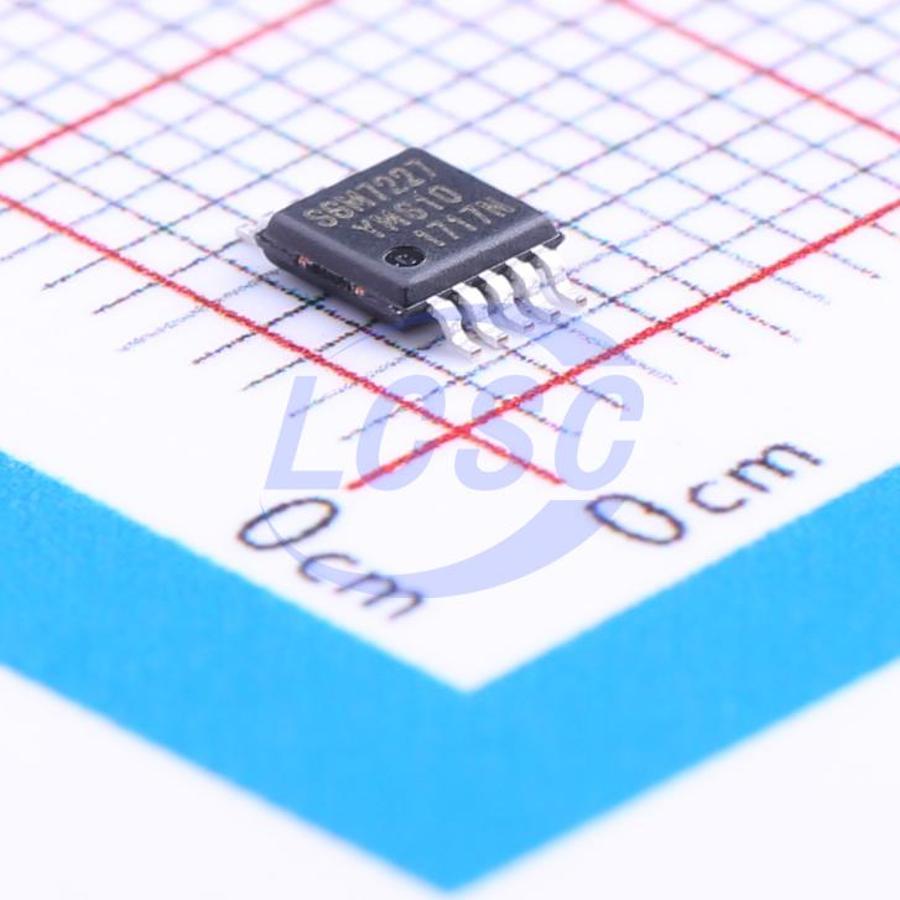

SGM7227YMS10G/TR

2 5Ω 1.8V~4.3V MSOP-10 Analog Switches, Multiplexers, Demultiplexers RoHS

MSOP-10ROHS CompliantActive

High Speed USB 2.0 DPDT Analog Switch

Manufacturer: SGMICRO
Manufacturer part #: SGM7227YMS10G/TR
Store part #: C182085
Package / case: MSOP-10
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,689 in stock

#C182085

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹80.66	₹80.66
10+	₹62.01	₹620.10
30+	₹52.70	₹1,581.00
100+	₹43.37	₹4,337.00

Quantity (min 1)

1 × ₹80.66

₹80.66

excl. GST

₹95.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM7227YMS10G/TR

₹80.66 for 1 + GST

Specifications

Features: Bidirectional analog channel;Fault protection
Operating Temperature: -40℃~+85℃
Number of Channels: 2
Ron: 5Ω
Voltage - Supply: 1.8V~4.3V
Propagation Delay: 500ps

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.118 g

Overview

The SGM7227 is a high-speed, low-power double-pole/ double-throw (DPDT) analog switch that operates from a single 1.8V to 4.3V power supply. SGM7227 is designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os.

Applications

Route Signals for USB 2.0
MP3 and Other Personal Media Players
Digital Cameras and Camcorders
Portable Instrumentation
Set-Top Box
PDAs

Key features

The SGM7227 has low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).
Each switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs.
Its bandwidth is wide enough to pass high-speed USB 2.0 differential signals (480 Mbps) with good signal integrity.
The SGM7227 contains special circuitry on the D+/D- pins which allows the device to withstand a VBUS short to D+ or D- when the USB devices are either powered off or powered on.
SGM7227 is available in Green UTQFN 1.8×1.4 - 10L and MSOP10 packages.
It operates over an ambient temperature range of -40°C to +85°C.
